Invisia Linear Bathroom Grab Bars - Fall Prevention Up To 500 Lb Capacity
Certified Open Box
Senior Help Center
We are here to help! Whether you have a product question, order related question, return request or just need a friendly person to assist you, we are here to help! Our Customer Care Specialists are exceptionally trained to provide you with the assistance you need. Chat with us today or fill out this form and a Specialist will be with you as quickly as possible!

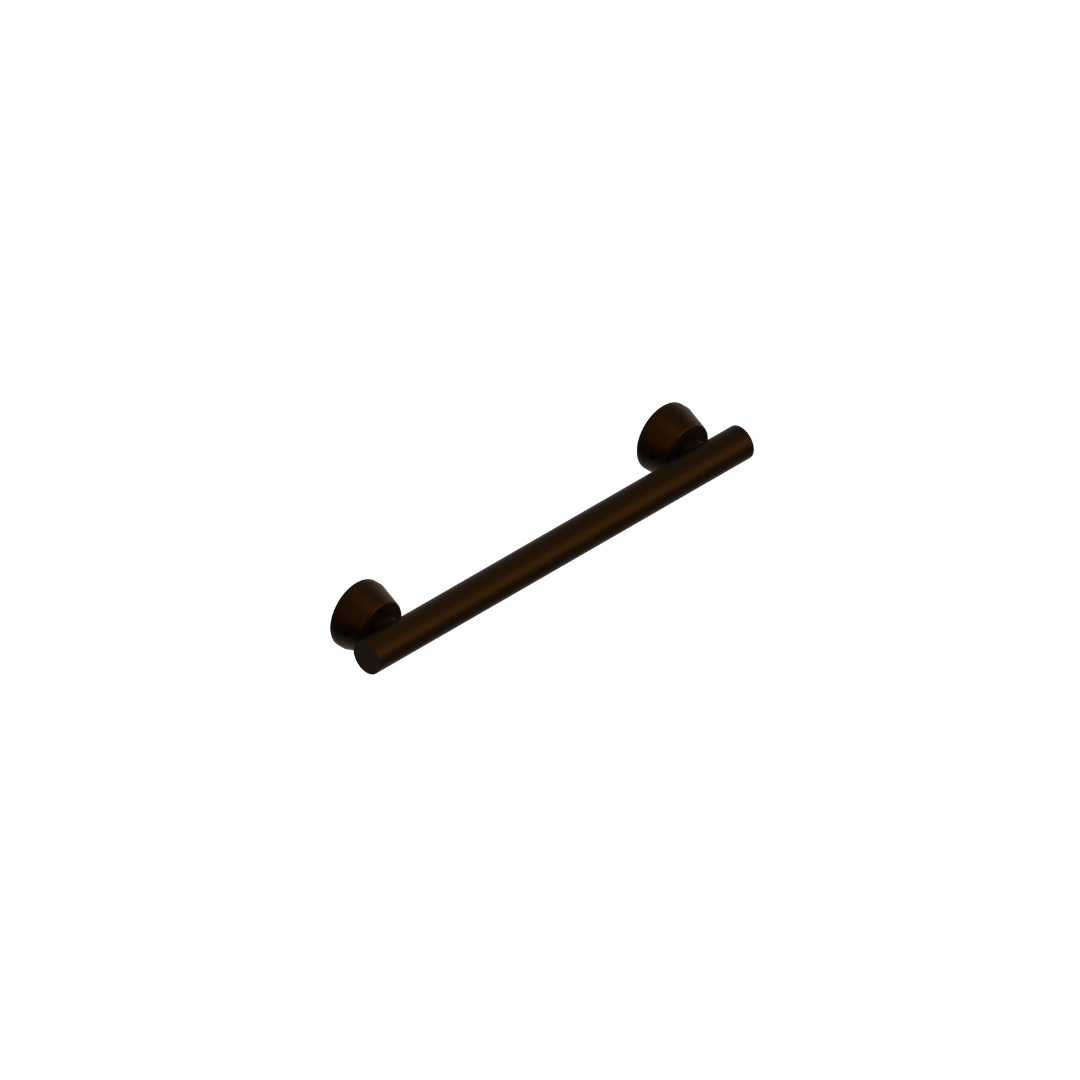

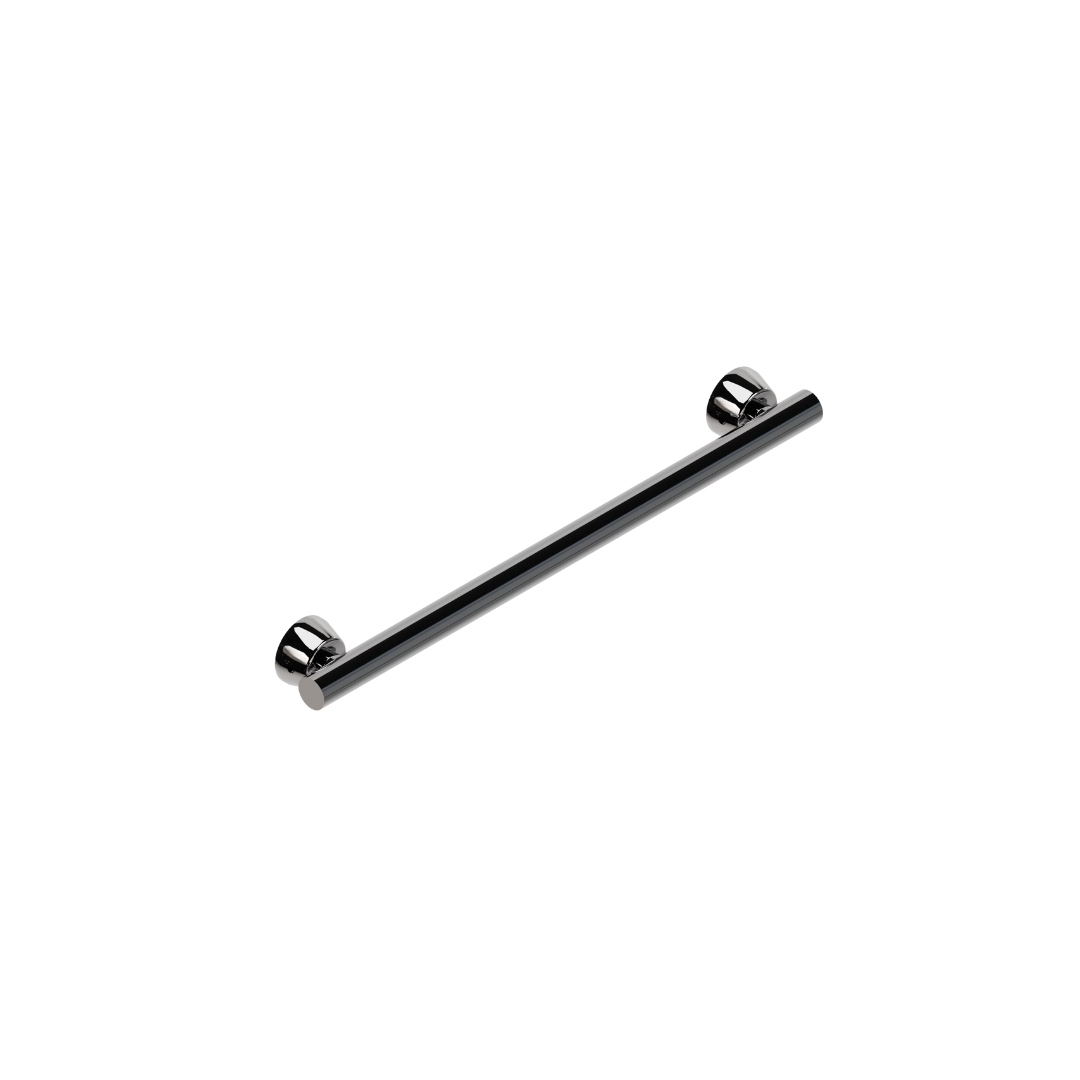

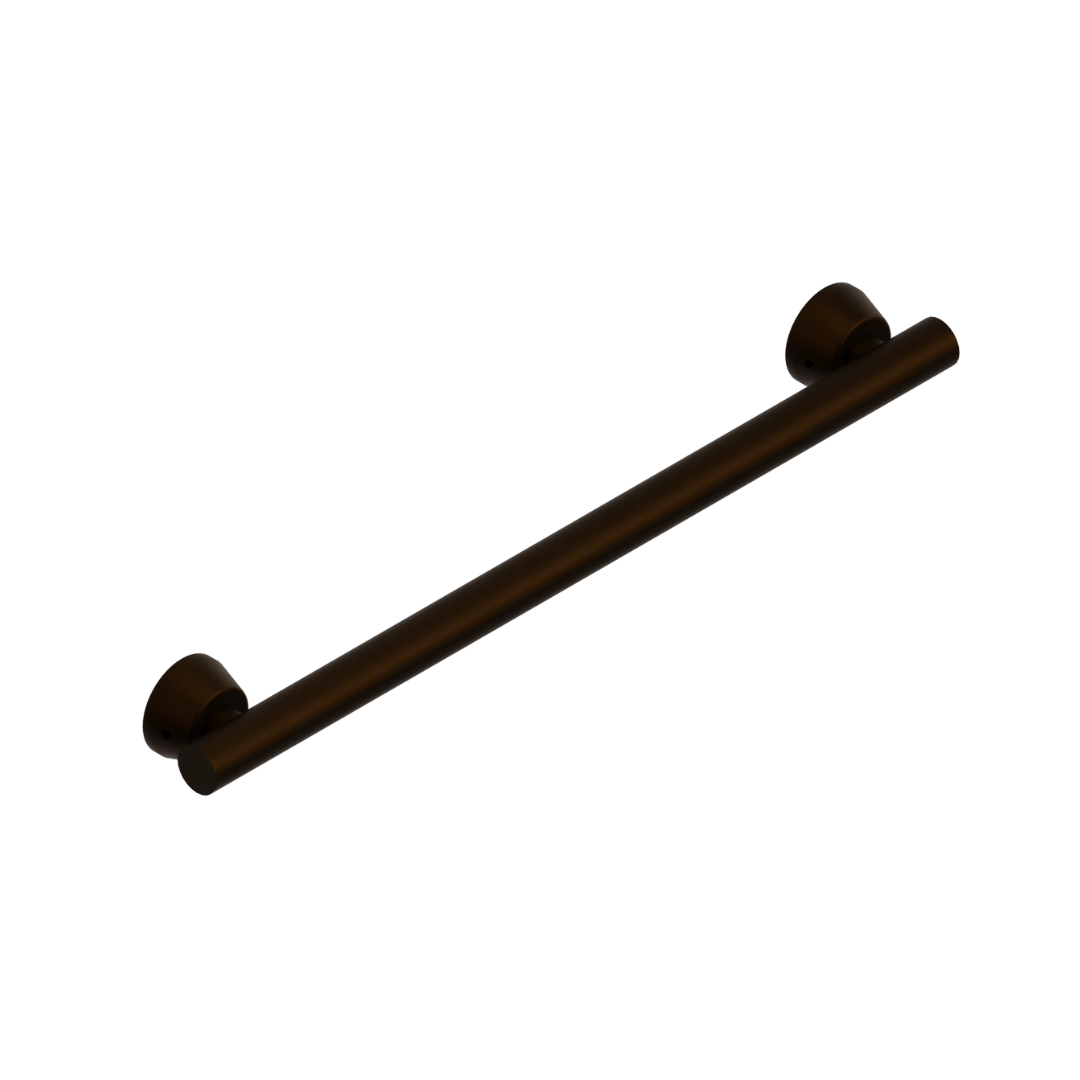

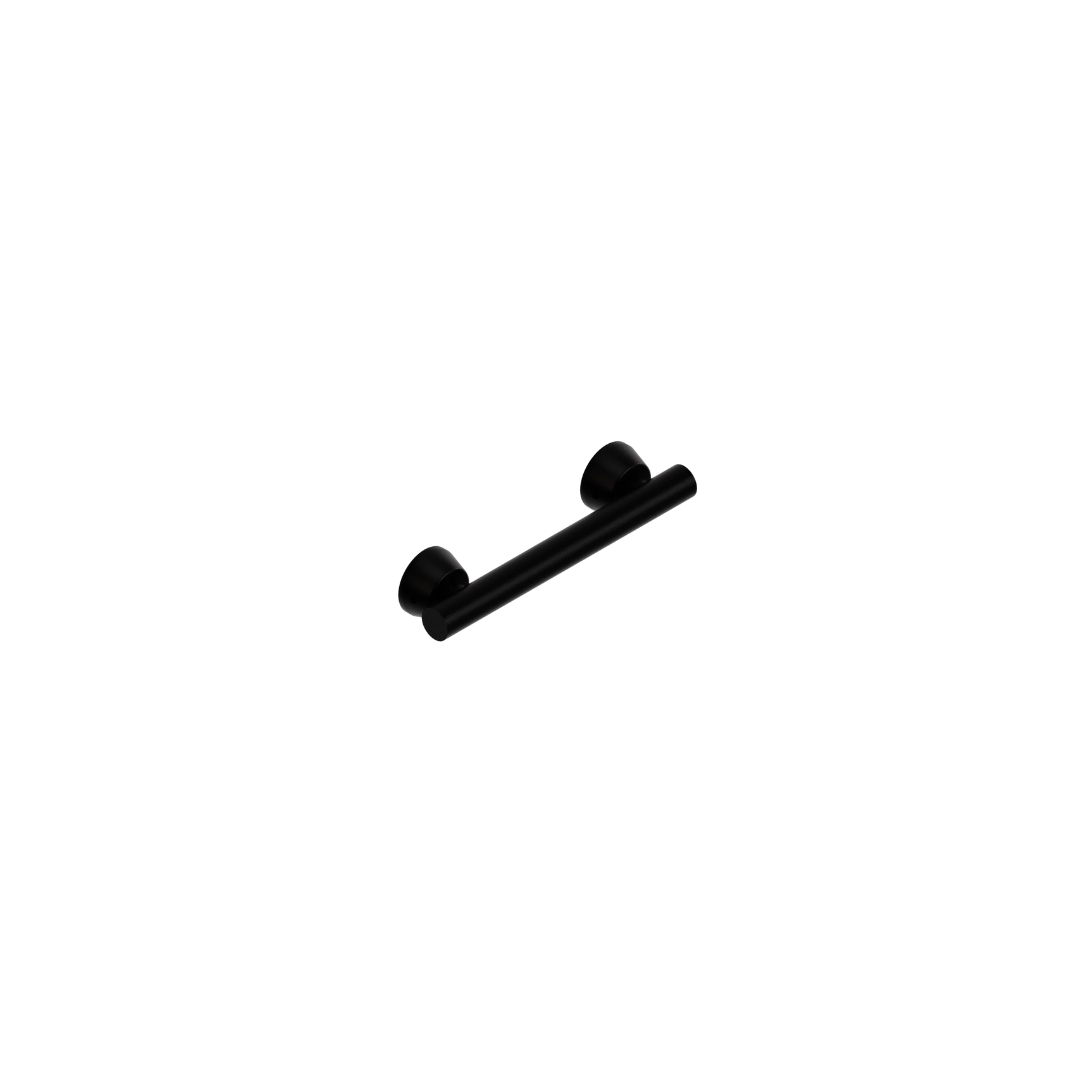

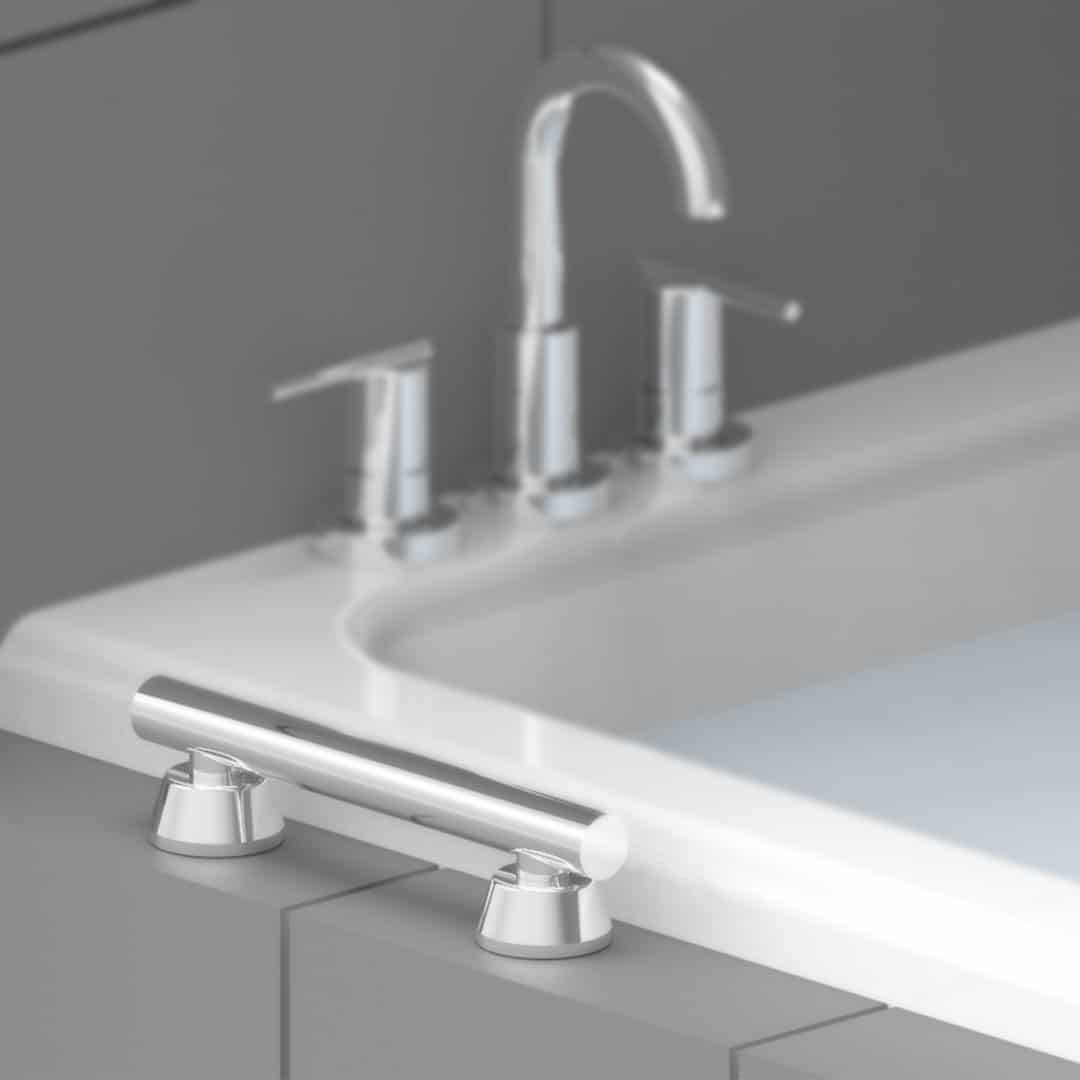

Invisia’s Linear Bar is a simple and understated way to add new life to the safety features of any bathroom. With a user-weight capacity that can support up to 500lbs / 227kgs, the decorative Linear Bar grants users peace of mind without compromising the beauty of the space. Featuring several colour options to complement décor, the luxurious Linear Bar can be installed anywhere—and at any angle—that support is needed.
Features:
- Supports upto 500lbs / 227kgs when installed to structural wood backing.
- Flange cover conceals mounting screws Makes mounting areas virtually invisible.

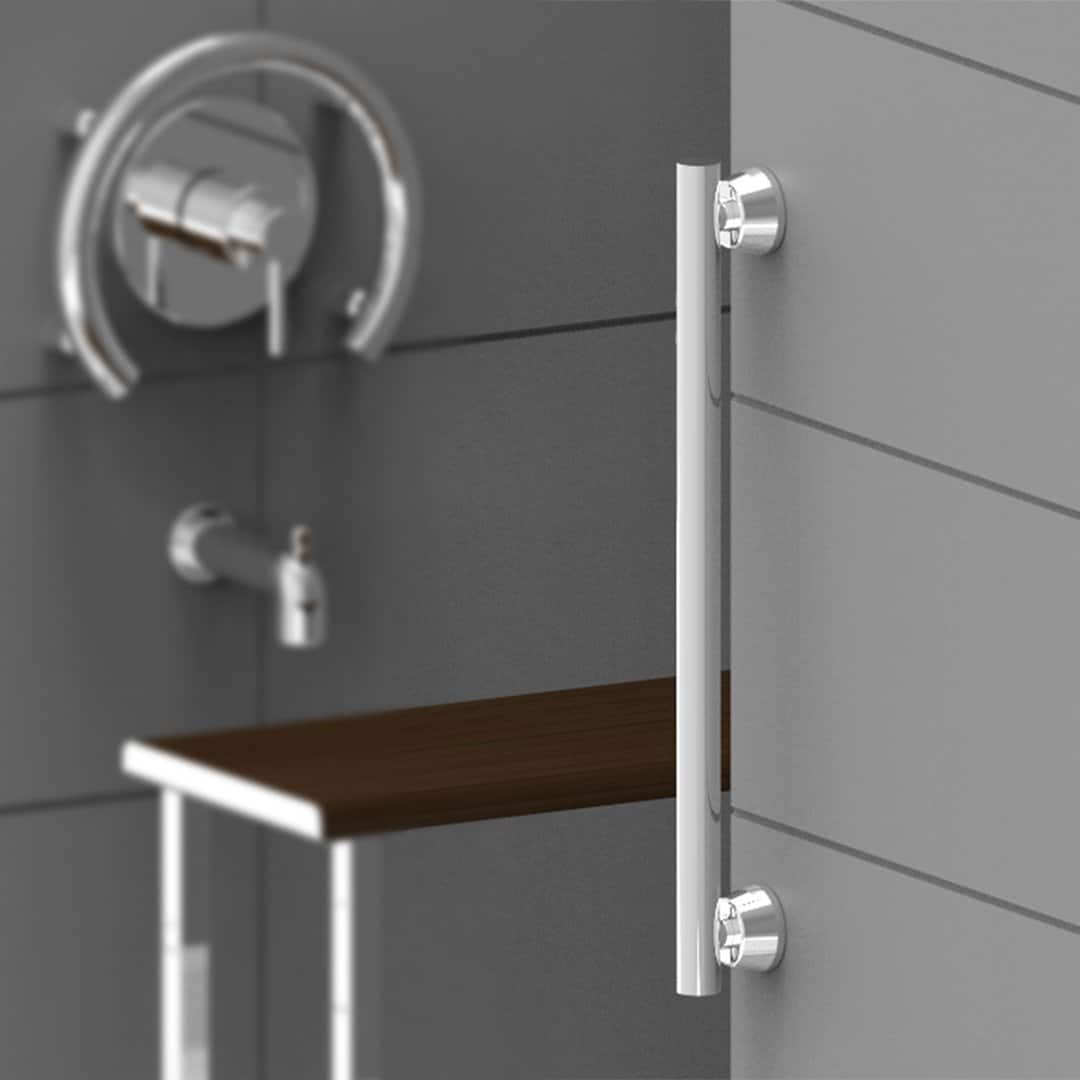

- Vertical, horizontal or angled installation Flange can rotate to accommodate wood stud spacing up to 16” / 406mm centers.

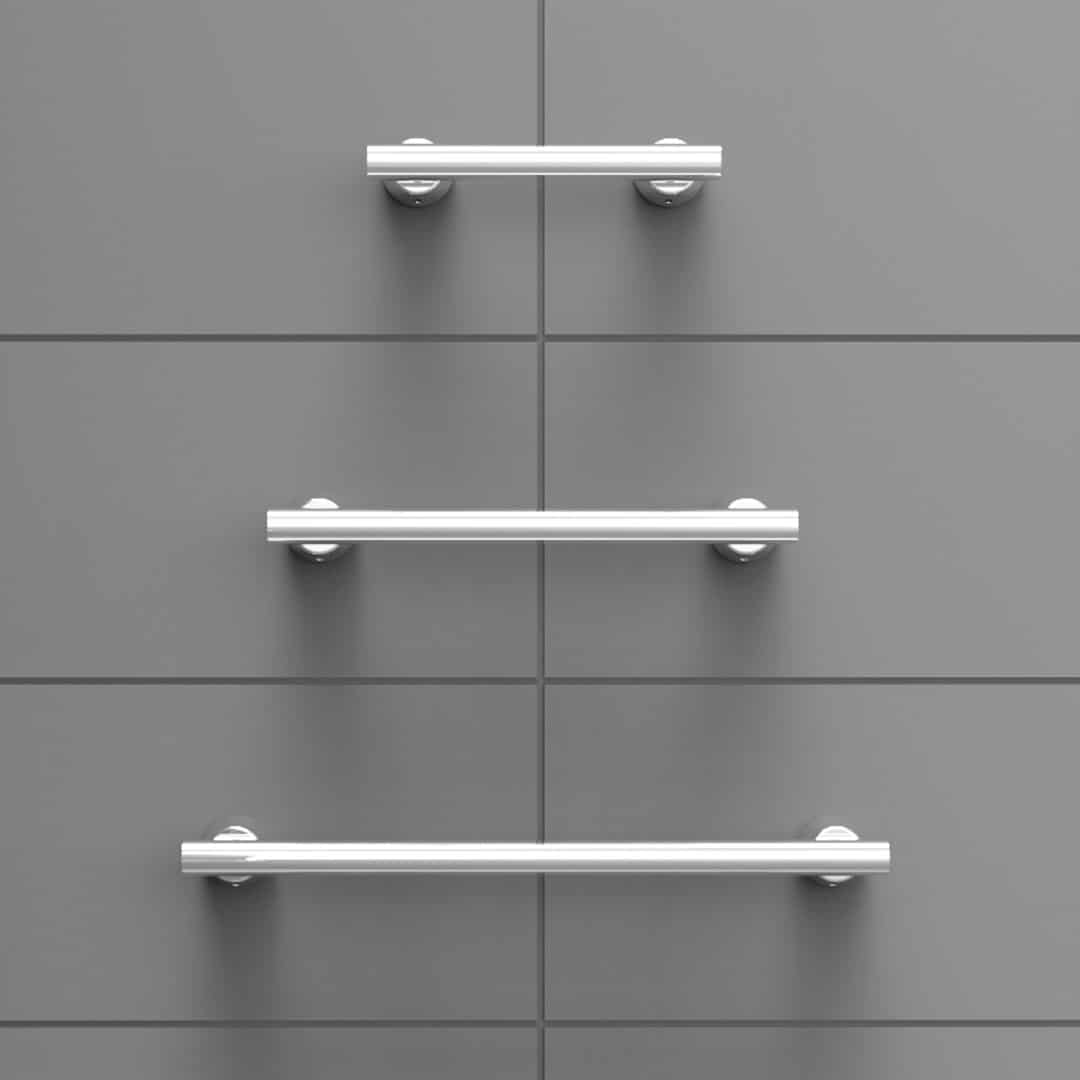

- Available in 12", 18" and 24" lengths.

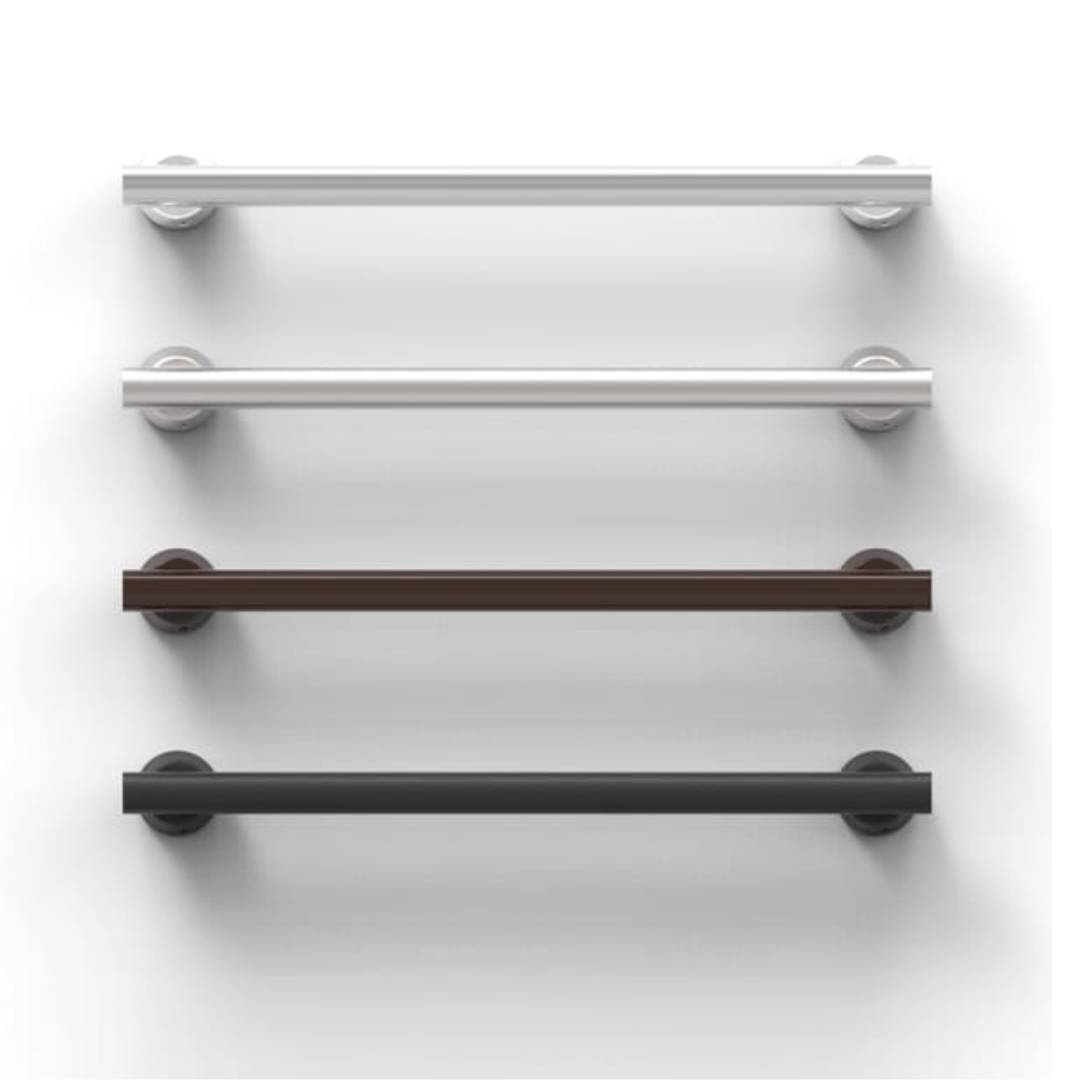

- Available in Chrome, Brushed Stainless, Oil Rubbed Bronze and Matte Black Finishes.
- Click Here To Download Installation Instructions
Specifications
| Material | Stainless steel |
| Finish / Colour | Polished Chrome (-CP) Brushed Stainless (-BS) Powder Coat Bronze (-ORB) Powder Coat Matte Black (-BLK) |
| Weight Capacity | 500lbs / 227kgs (ADA Compliant) |
| Rail Diameter | 1.25″ / 31.8mm (ADA Compliant) |
| Wall Clearance | 1.50″ / 38.1mm (ADA Compliant) |
| Installation Mechanism | Must screw to wood backing behind wall. Aligns with 16″ / 406mm stud spacing. |
| Installation Hardware/Fasteners | #10 x 2″ / 51mm length, stainless steel wood screws (x4). |
| Fasteners Exposed or Concealed | Concealed; flange covers conceal mounting hardware. |
| Commercial Use | Yes |
| Residential Use | Yes |
| Water Resistant | Yes |
| Rust Resistant | Yes |
| Country of Origin | China |
| Shipping Dimensions | 27x4x4″ / 686x102x102mm |
| Shipping Weight | 4lbs / 1.8kgs |
| Warranty | Limited lifetime warranty |
Installation Instructions
