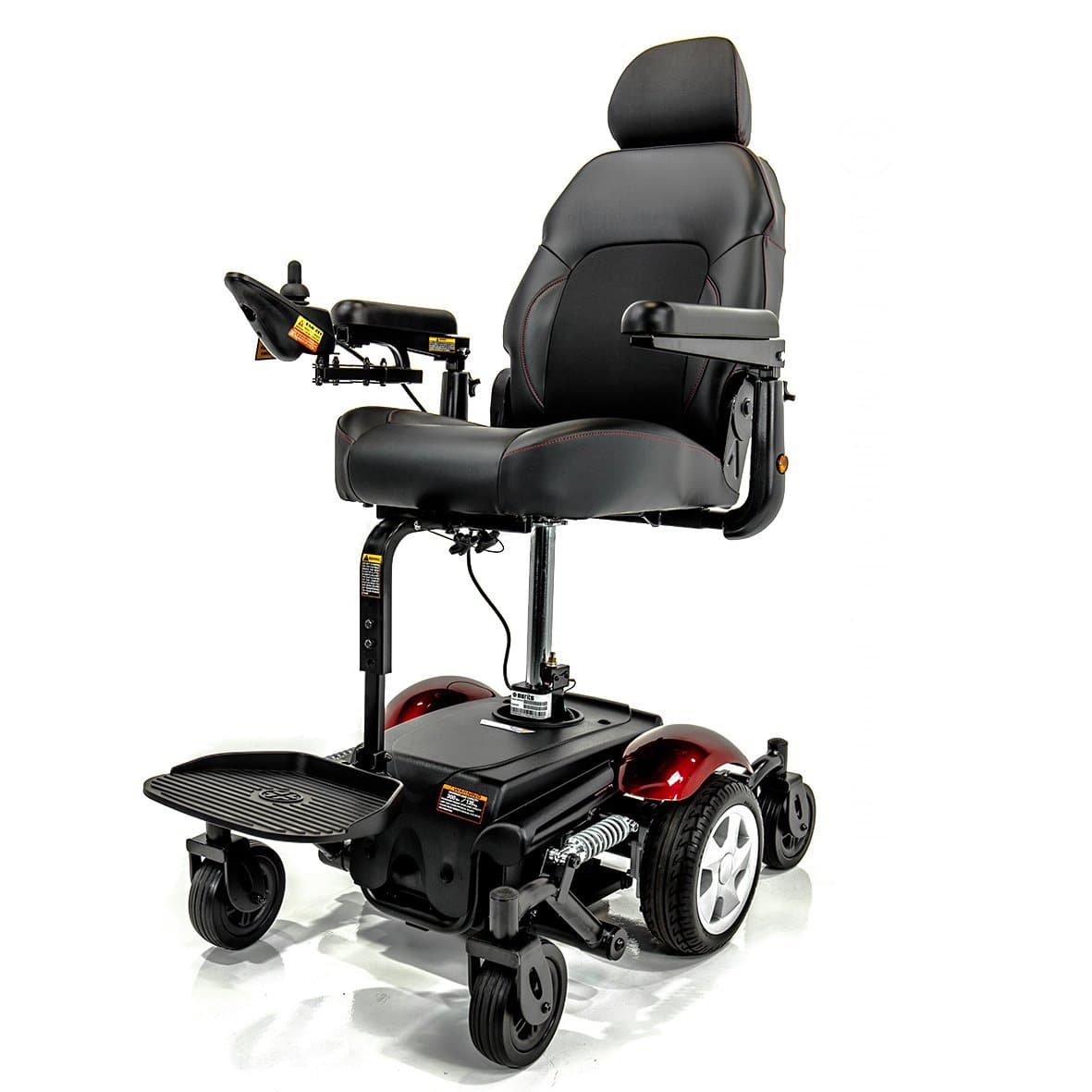

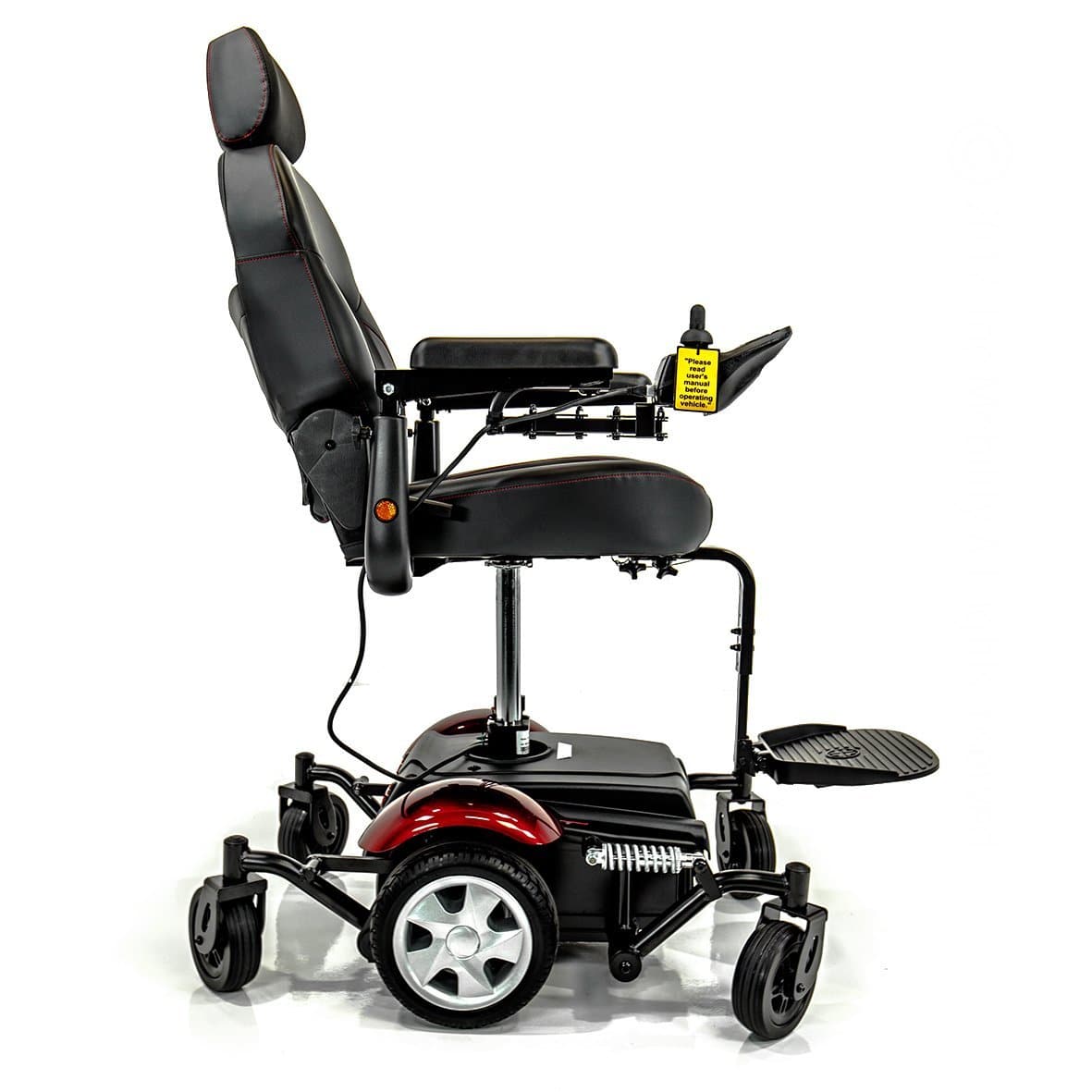

Merits Health Vision Super Bariatric Power Electric Wheelchair with Lift
Certified Open Box
Senior Help Center
We are here to help! Whether you have a product question, order related question, return request or just need a friendly person to assist you, we are here to help! Our Customer Care Specialists are exceptionally trained to provide you with the assistance you need. Chat with us today or fill out this form and a Specialist will be with you as quickly as possible!
The Merits Health Vision Super Heavy Duty Power Chair with Lift is ideal for users needing a higher weight capacity. The 7.5" seat elevation operates at 1/2 speed when elevated. It was designed with a durability and comfort in mind. The full front and rear suspension and 12-inch pneumatic drive wheels give you a smooth ride while easily negotiating different types of terrain. The 22-inch wide Captain’s Seat with a semi-reclining backrest ensures you stay supported and comfortable while driving up to 20 miles in a single charge.
The mid-wheel power chair features a tight, 20.7-inch turning radius, allowing you to maneuver in smaller spaces. The dual in-line motors of the this Power Chair ensures enhanced torque, efficiency and performance.
Features:
- 7.5" Seat Elevation Operates at 1/2 speed when elevated
- Super high power in-line motors help obese riders negotiate 10° uphill ramps easily
- Price includes powerful NF22 batteries. These deep-cell batteries offer exceptional power and range
- The Vision Super Bariatric Wheelchair has a 450-lbs weight capacity.
- Mid Wheel drive
- No rear tipping on footplate standing (up to 300-lbs)
Specifications
Product Specifications
- Seat Width: 20”W x 20"D or 22”W x 20"D
- Seat Height: 22" – 23.2”
- Backrest Height: 20.5”
- Overall Dimensions: 35.4”L x 48"H x 27.2"W
- Total Weight: 243 lbs
- Capacity: 450 lbs
- Max Speed: 5mph
- Range: 20 miles
- Turning Radius: 20.7"
- Ground Clearance: 2.2"
- Motor: DC 24V, 300W x2pcs
- Controller: Dynamic Shark 60A
- Battery: 12/V 22NF x2pcs
- Charger: 5A off-board
- Gradient: 8°
- Casters: 6" front and rear tires
- Drive Wheels: 12" pneumatic tires
- Brakes: intelligent, regenerative, electromagnetic
