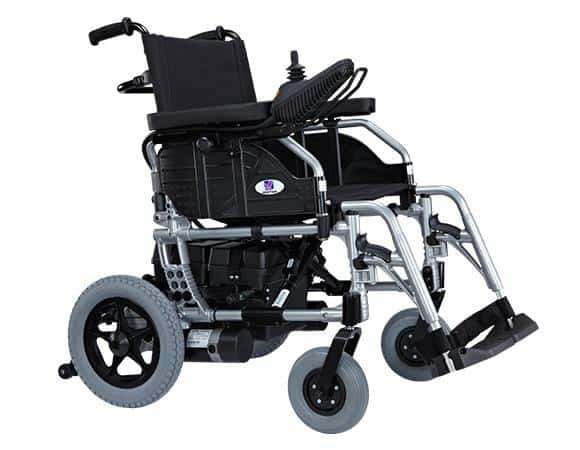

Heartway HP5 Escape DX Folding Power Wheelchair

Heartway HP5-16
$1,799.00
$1,799.00
Seat Size

The Heartway HP5 ESCAPE DX power wheelchair is a folding power wheelchair with aluminum frame.The ESCAPE DX also has removable battery boxes which when combined with the lightweight aluminum frame make portability and transporting convenient and easy. The Escape DX is also equipped with removable swing away leg rests. The Escape DX uses two 200 watt motors and a 50 Amp VSI controller. The top speed for the Escape DX is 4 MPH. It uses two 12V 35AH batteries  and has a range of up to 20 miles per charge

Features:

  • Aluminum foldaway side frame with aluminum die casting lugs instead of welding.
  • Right and left footrests are exchangeable.
  • Easy dismounting and mounting battery mechanism.
  • Multiple rear wheels mounting position.
  • Stylish metalic purple aluminum frame finish
  • Supports up to 300 lbs
  • Weighs 136 lbs with batteries
  • Two 200 watt motors with 50 Amp VSI controller
  • Uses two 12V 35AH batteries
  • Up to 20 mile travel range per charge
  • Top speed of 4 MPH
  • Available in 16" and 18"
  • Removable battery boxes
  • Swing away leg rests
  • 5 Amp battery charger
Specifications

Weight Capacity

300 lbs (135 kgs)

Seat Type

16"/18"/20"

Drive Wheel

12 1/2"x2 1/4" (320 mm x 60mm)
Front Caster 8"x2"(200 mm x 50 mm)

Rear Caster

1.4"x0.7" (35 mm x 17 mm) x 4pcs

Max Speed

3.8MPH (6 KPH)

Battery Specifications

12V 35Ah x 2pcs

Battery Range

20 miles (32 km)

Charger Type

5Amp,Off Board 120/240 Volt, 50/60 Hz

Controller Type

VSI 50Amp

Motor Type

3900 rpm 200W 32:1 x 2pcs

Weight w/ Battery

136 lbs (62 kgs)

Weight w/o Battery

84 lbs (38 kgs)

Turning Radius

34" (865 mm)

Suspension

NO

Length

43.3" (1100 mm)

Wide

27" (685 mm)

Height

35.5" (900 mm)

Seat Width

18" (460 mm)

Seat Heigth

20" (508 mm)

Seat Depth

16" (406 mm)

Back Height

18"(406 mm)

Wheel Base

20.5" (520 mm)

Footrest

15.7" (400 mm) ~ 19.7" (500 mm)
