Merits Vision Sport Lift Mid Wheel Drive Electric Powerchair with Power Elevating Seat

Merits Health P326D1ARMUB
$3,722.53
$3,722.53 $4,398.00
You save 15% ($675.47)
Color

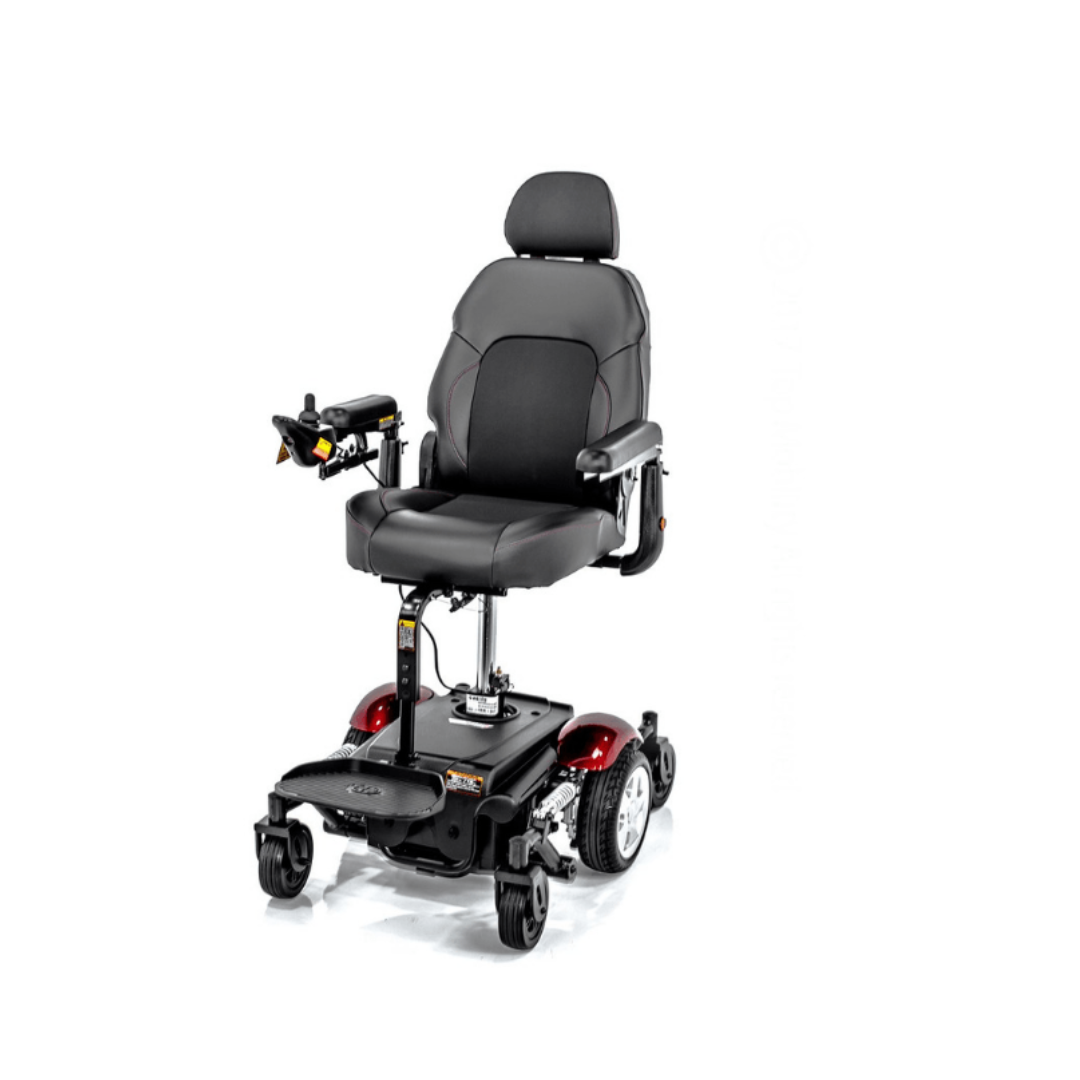

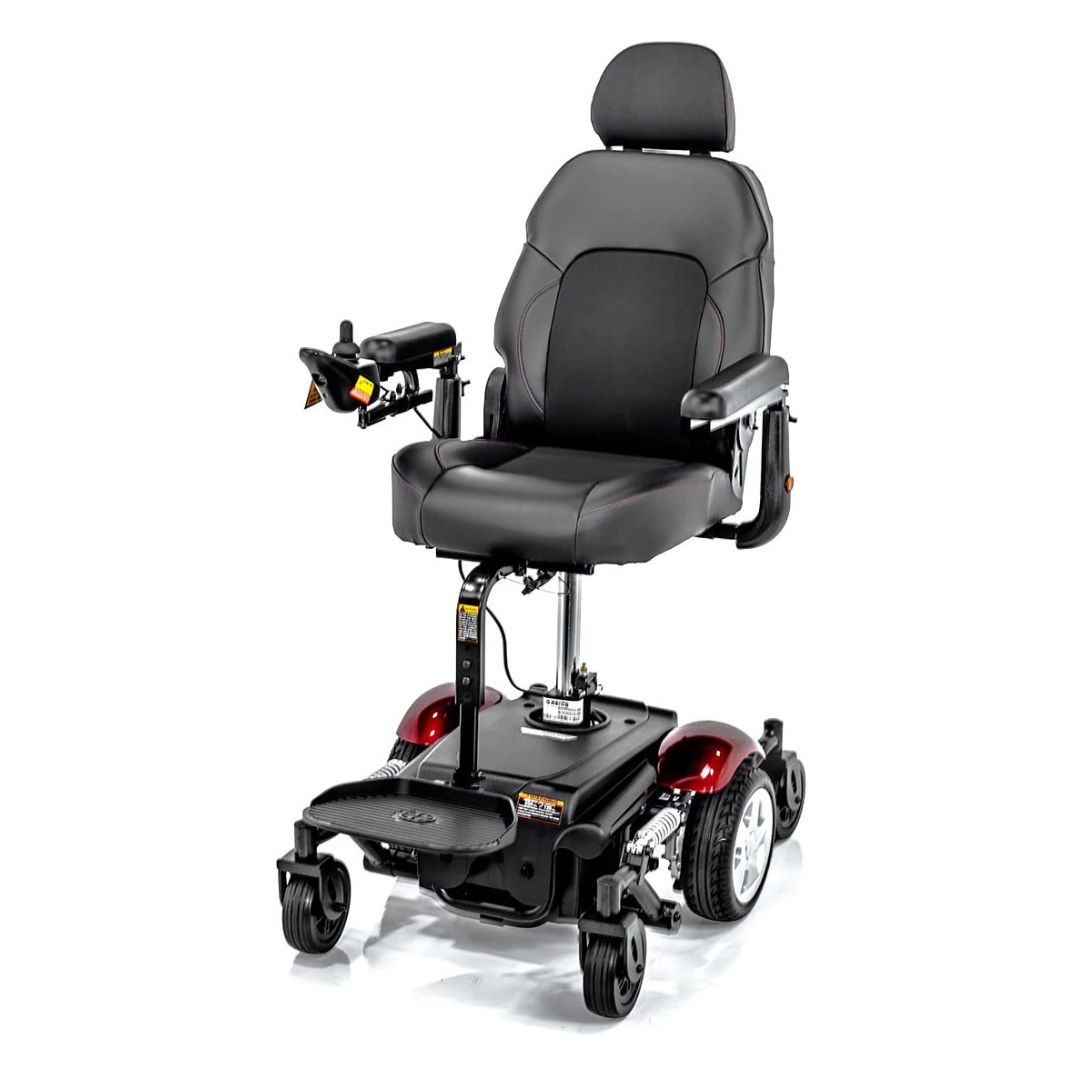

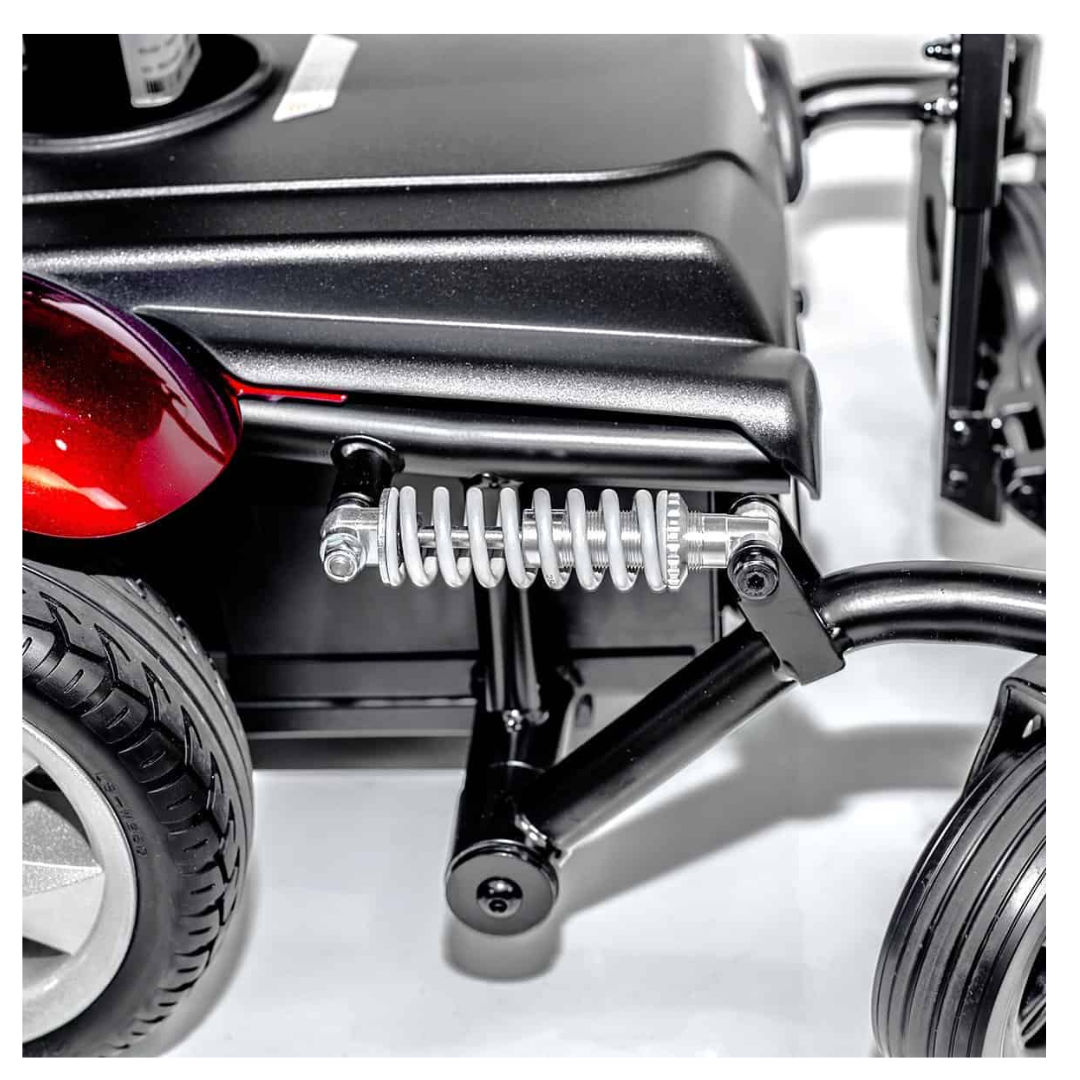

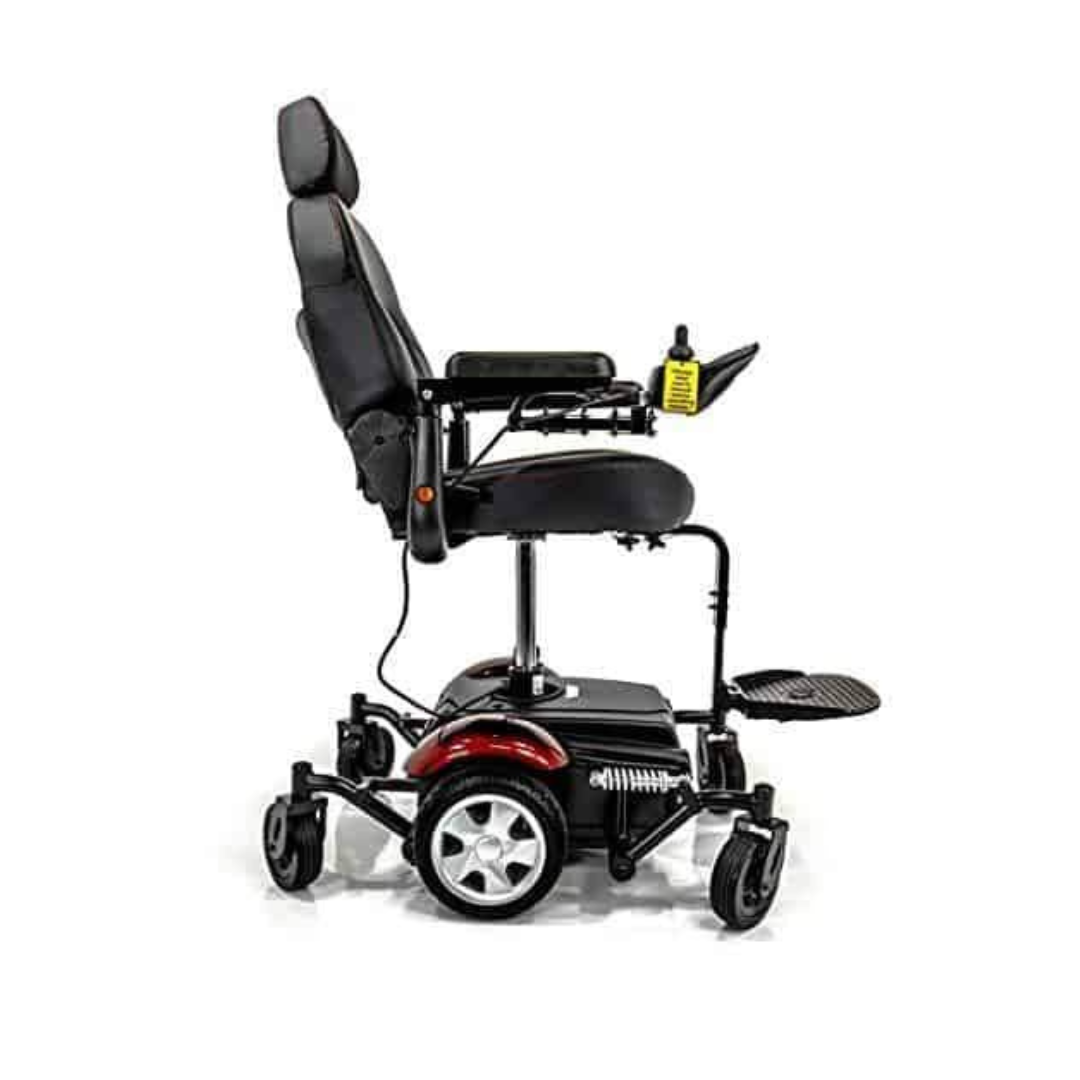

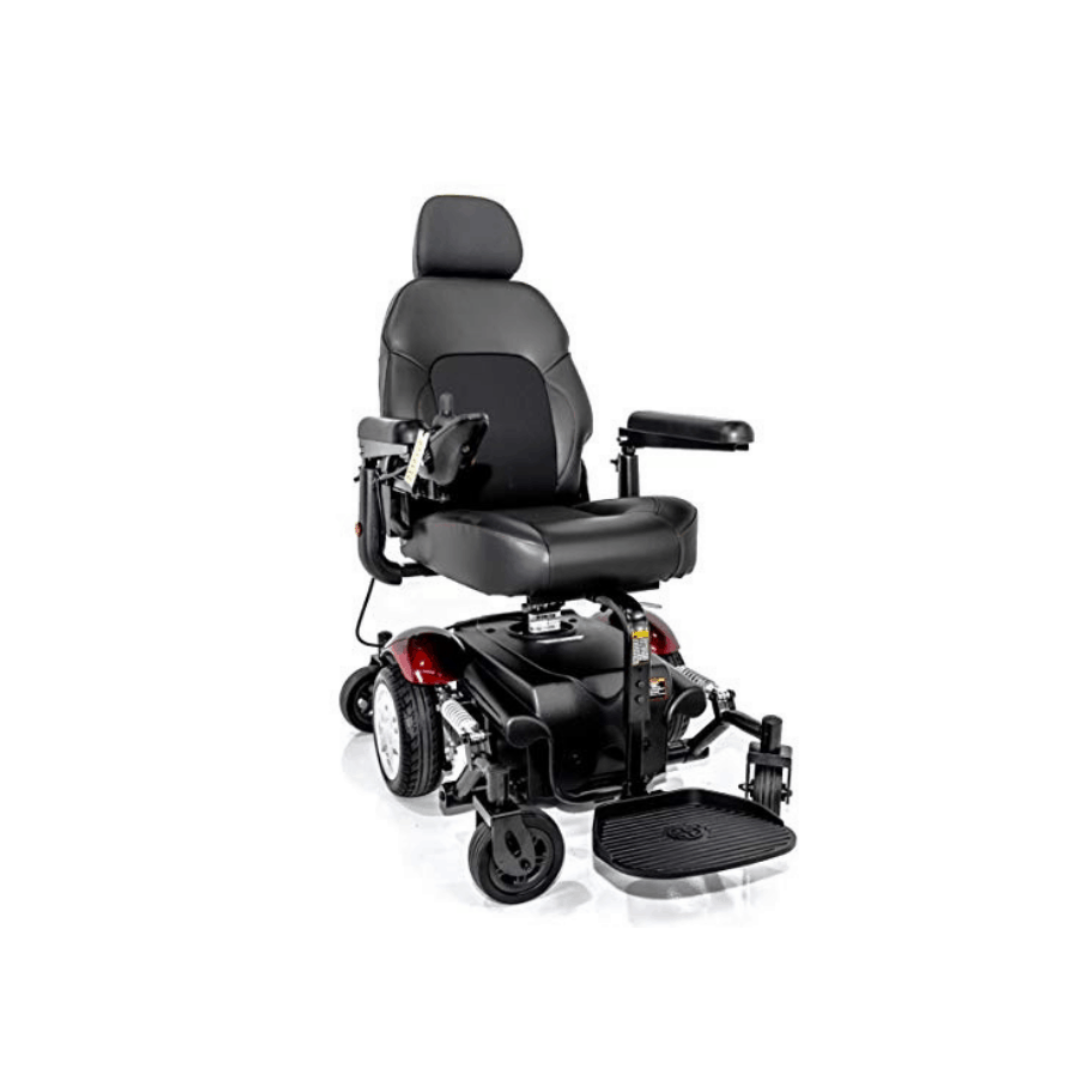

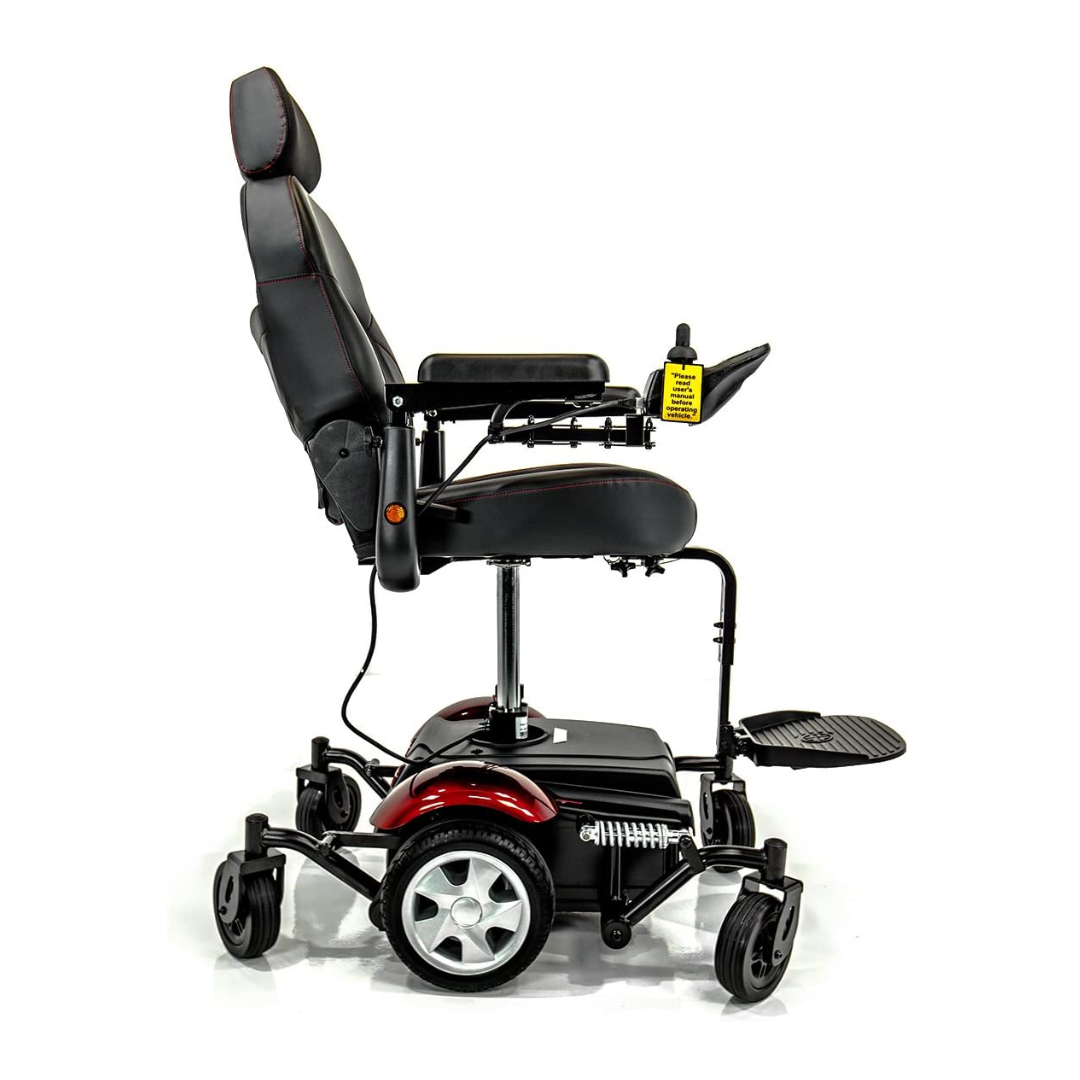

Merits P326D Vision Sport Lift is a Mid-wheel drive powerbase wheelchair with power elevating seat. The Vision Sport Lift includes a powered elevating seat lift for increased access to places you might not ordinarily be able to reach. Seat raises a full 7.5-inches at the touch of a button. Vision Sport Lift includes a full suspension system and goes up to 5mph, and will travel as many as 18 miles on a single battery charge. The chair will actually drive and maneuver with the seat in elevated position, but at half-speed for safety reasons.

Comfort and maneuverability are the greatest attributes of the Merits P326A Vision Sport Power Wheelchair. The large, 20"-wide Semi-Recline Captain's Seat (with headrest) will accommodate users weighing up to 300 lbs, and the adjustable arms can be set for height and width or will flip up. This mid-wheel drive power wheelchair will virtually turn around in place, with a small 20" turning radius.

Features:

  • 7.5" Seat Elevation Operates at 1/2 speed when elevated
  • Weight capacity: 300 lbs. No rear tipping on footplate standing (up to 250lbs)
  • Dual in-line motors for enhanced efficiency, torque, range and performance
  • Semi-reclining back: 135 Degrees -18" wide standard seat. Red color Powerchair.
Specifications

Download Owners Manual Here


Driving Range 29 km / 18 mi.
Max Speed 8 km/h , 5 mph
Battery Type 12V / U1 34AH x 2 pcs
Motor DC 24V , 160W (Rating )/ 520W 6(Max)
Max Climbing Angle
Turning Radius 50 cm / 20"
Ground Clearance 5 cm / 2"

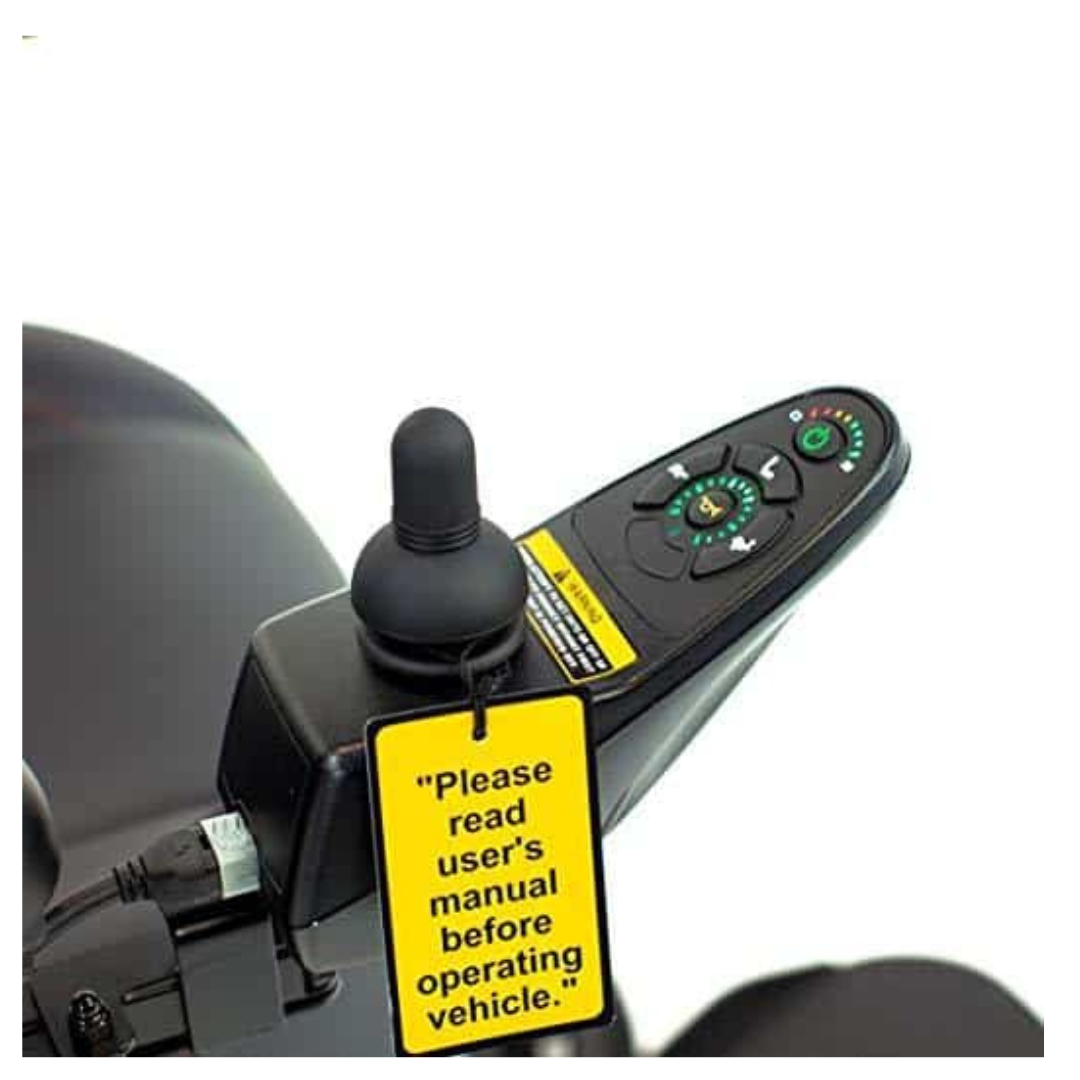

Controller PG VR2 60A A1
Charger 4A off-board
  • Weight Capacity: 136 kg / 300 lb
  • Total Weight: 88.5 kg / 195 lb
  • Front wheel: F/R 6”x 2” PU tire
  • Drive Wheel: 10"(260 x 85) PU tire
  • Rear wheelF/R 6”x 2” PU tire
