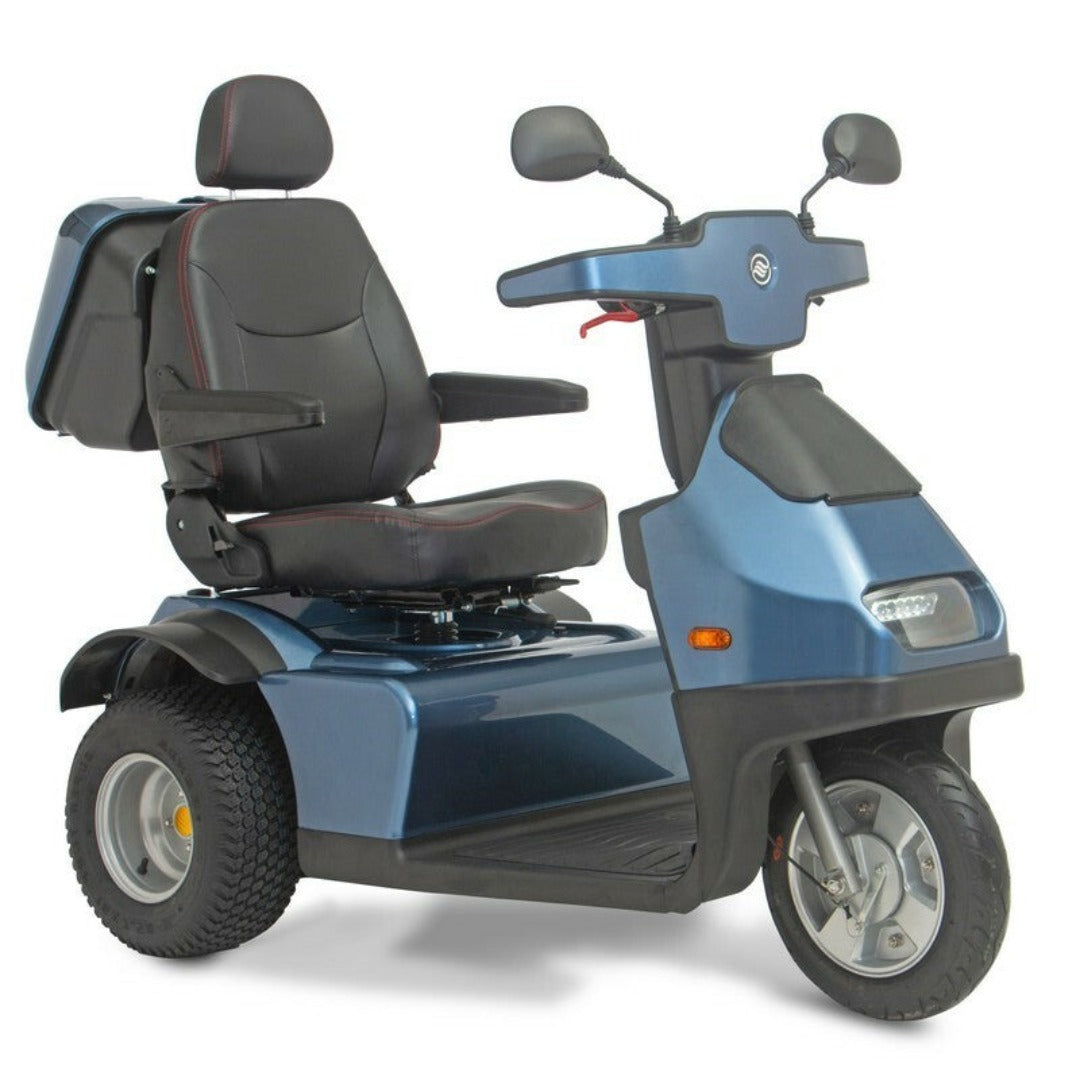

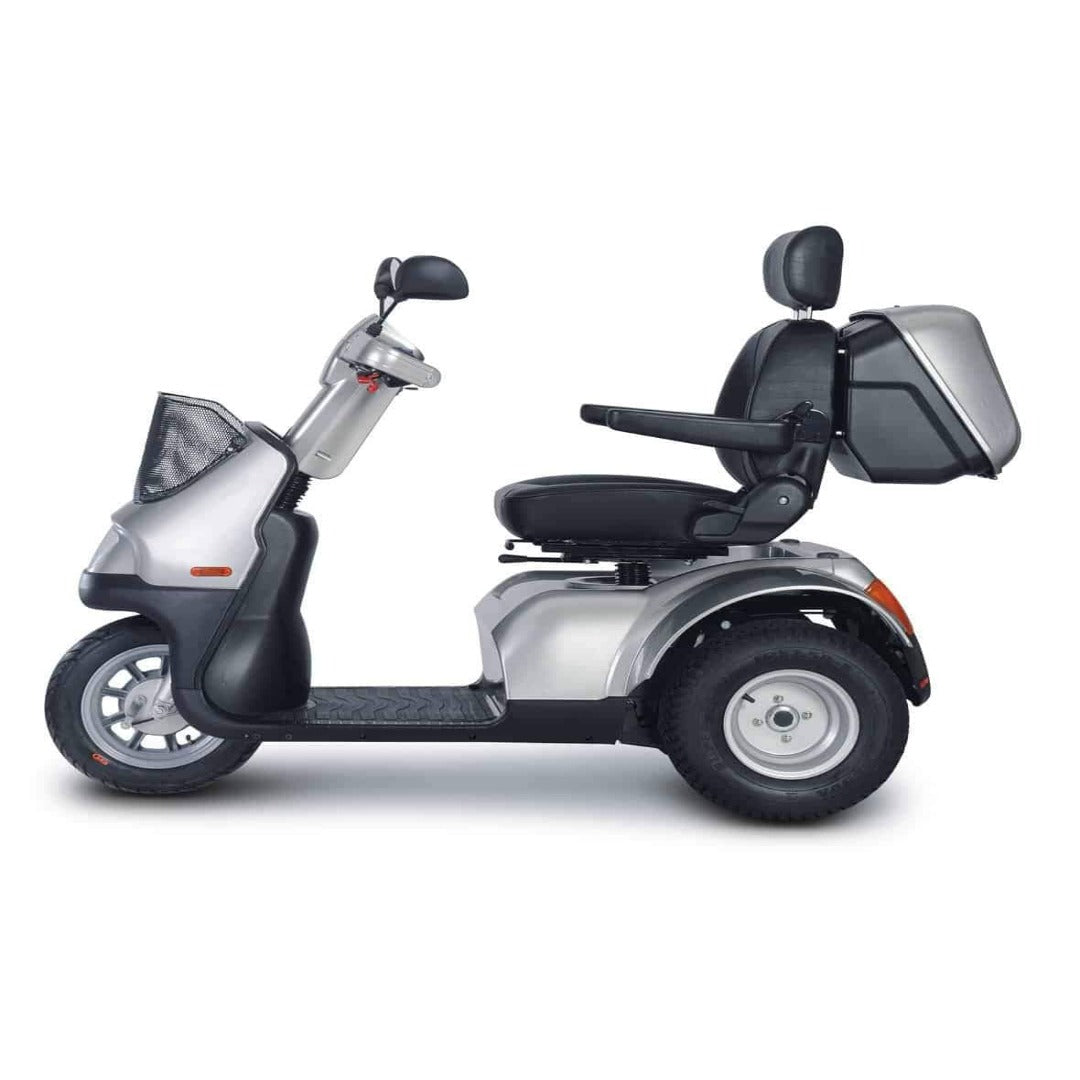

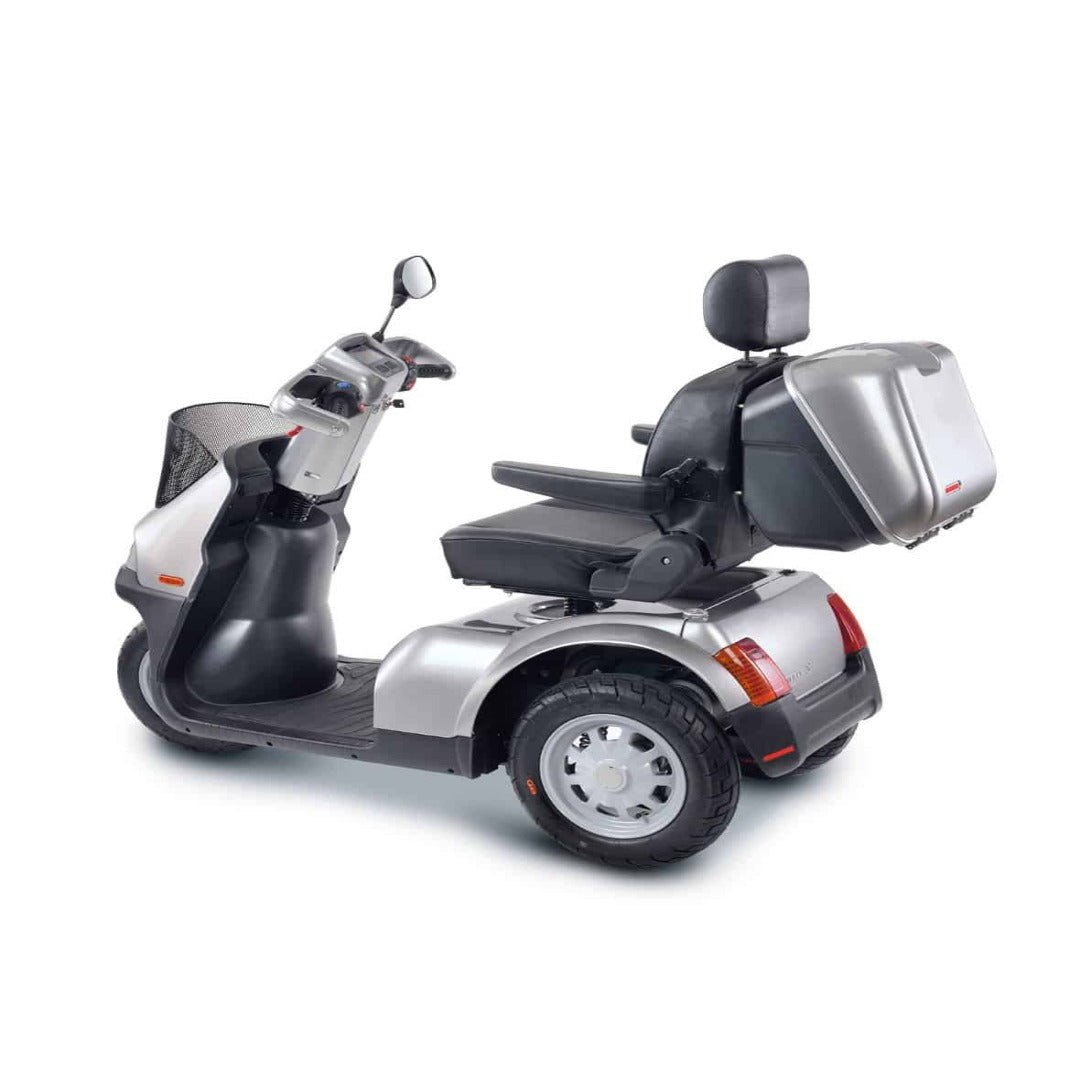

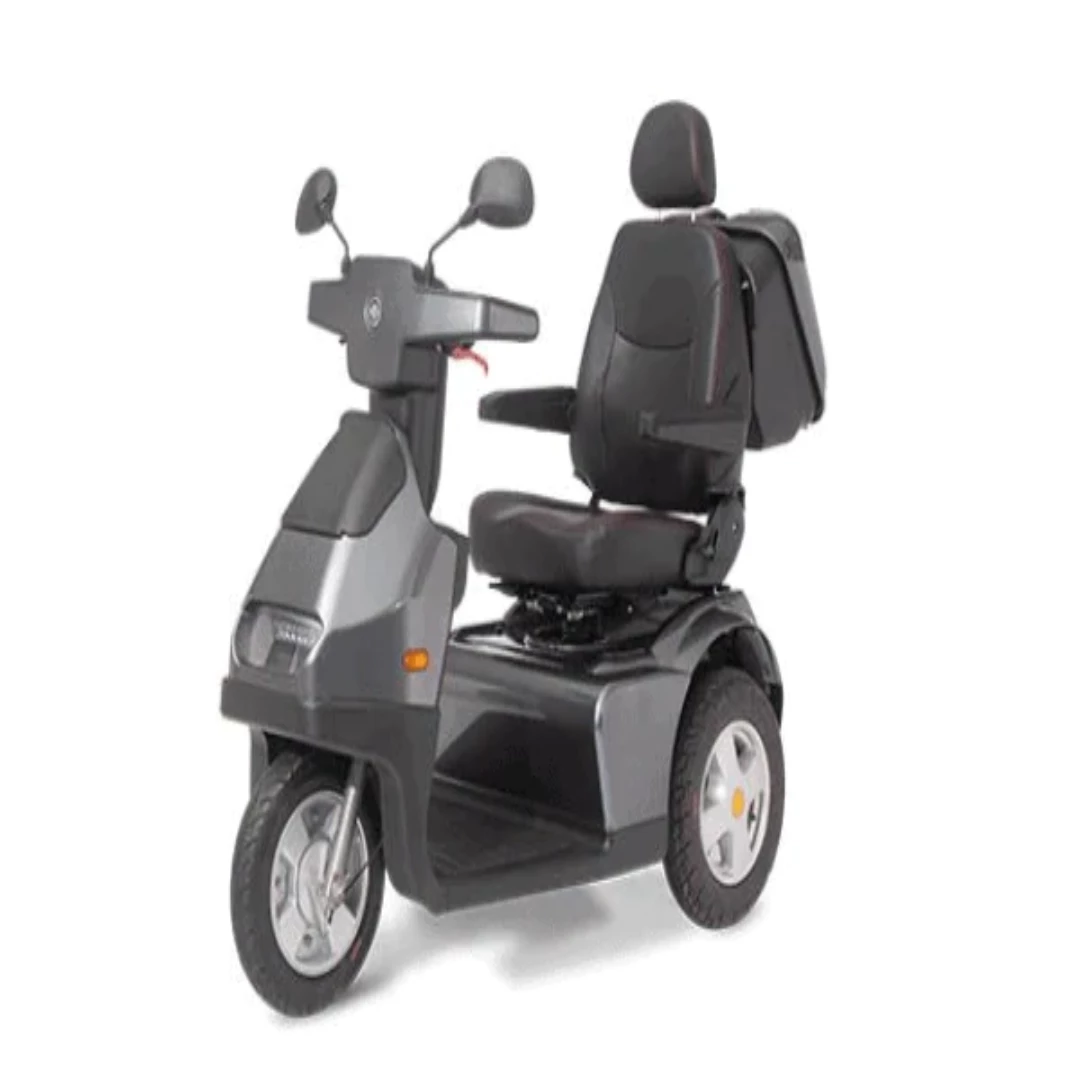

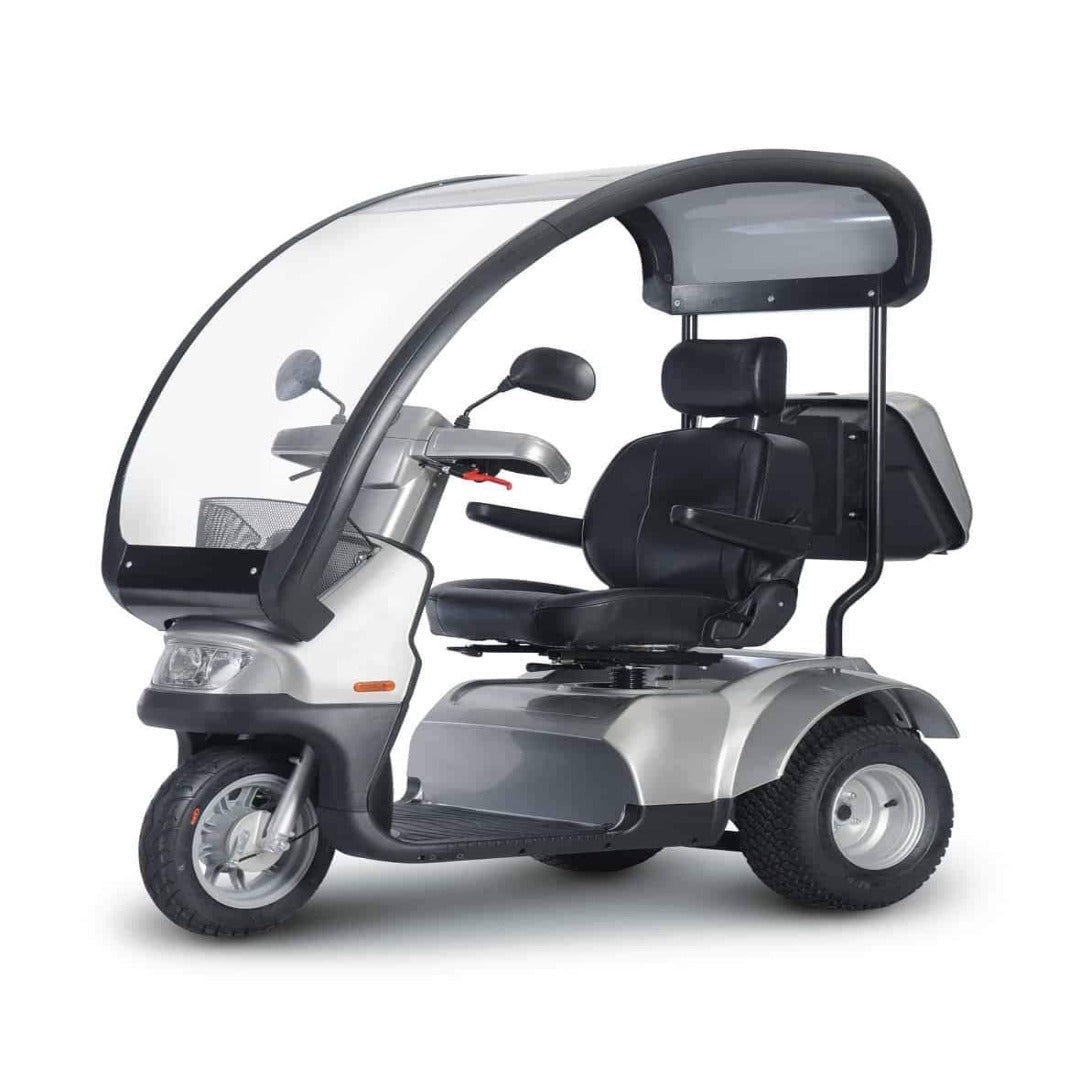

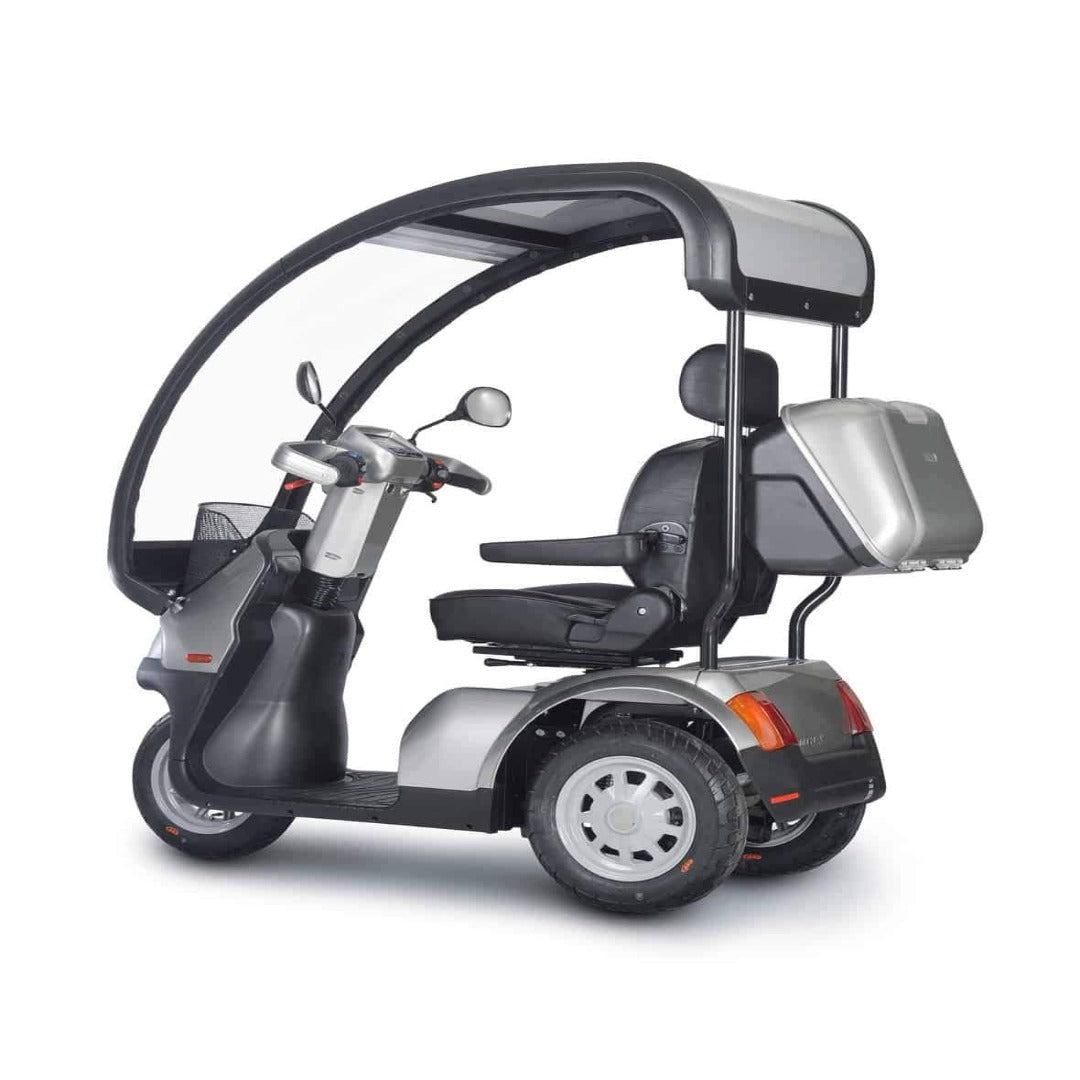

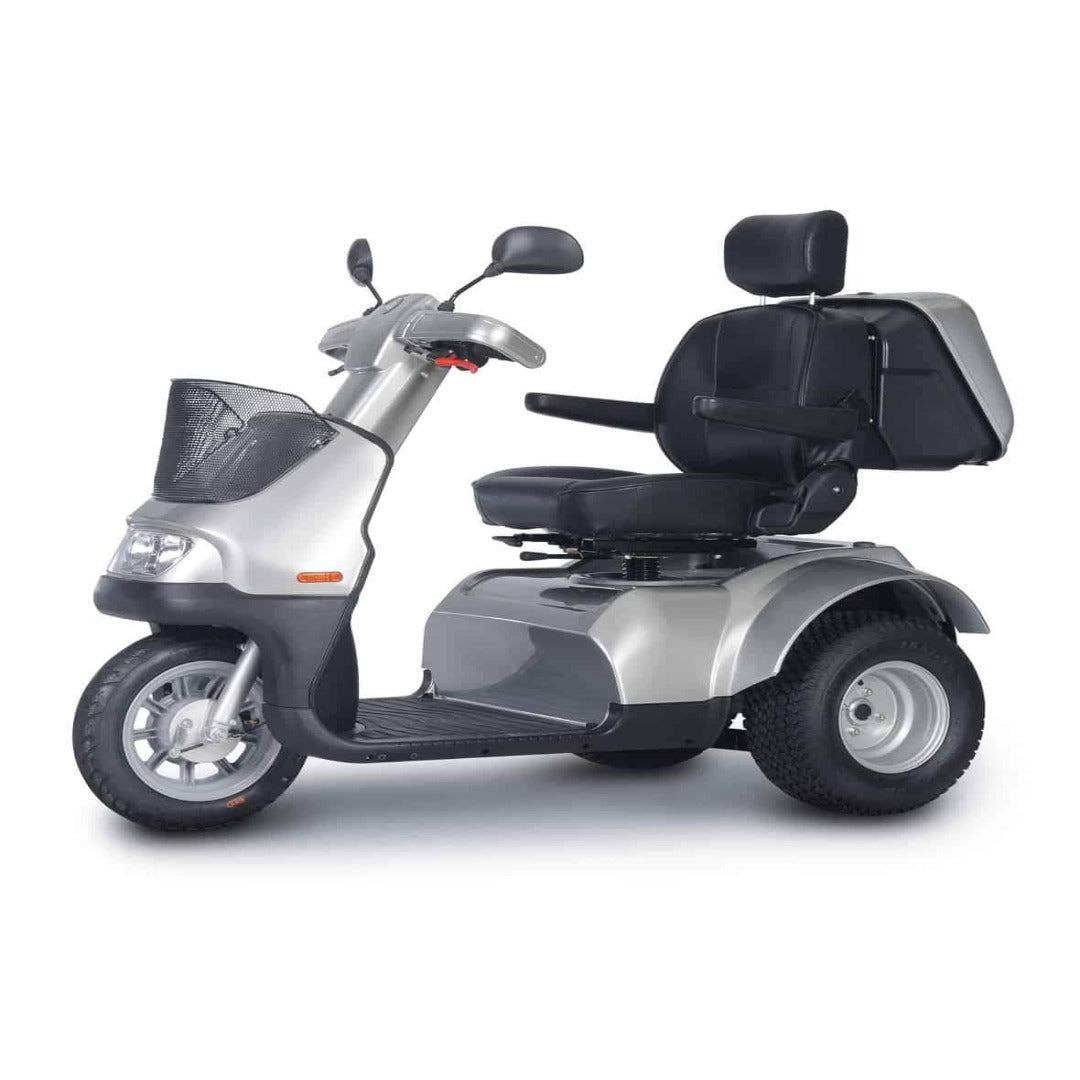

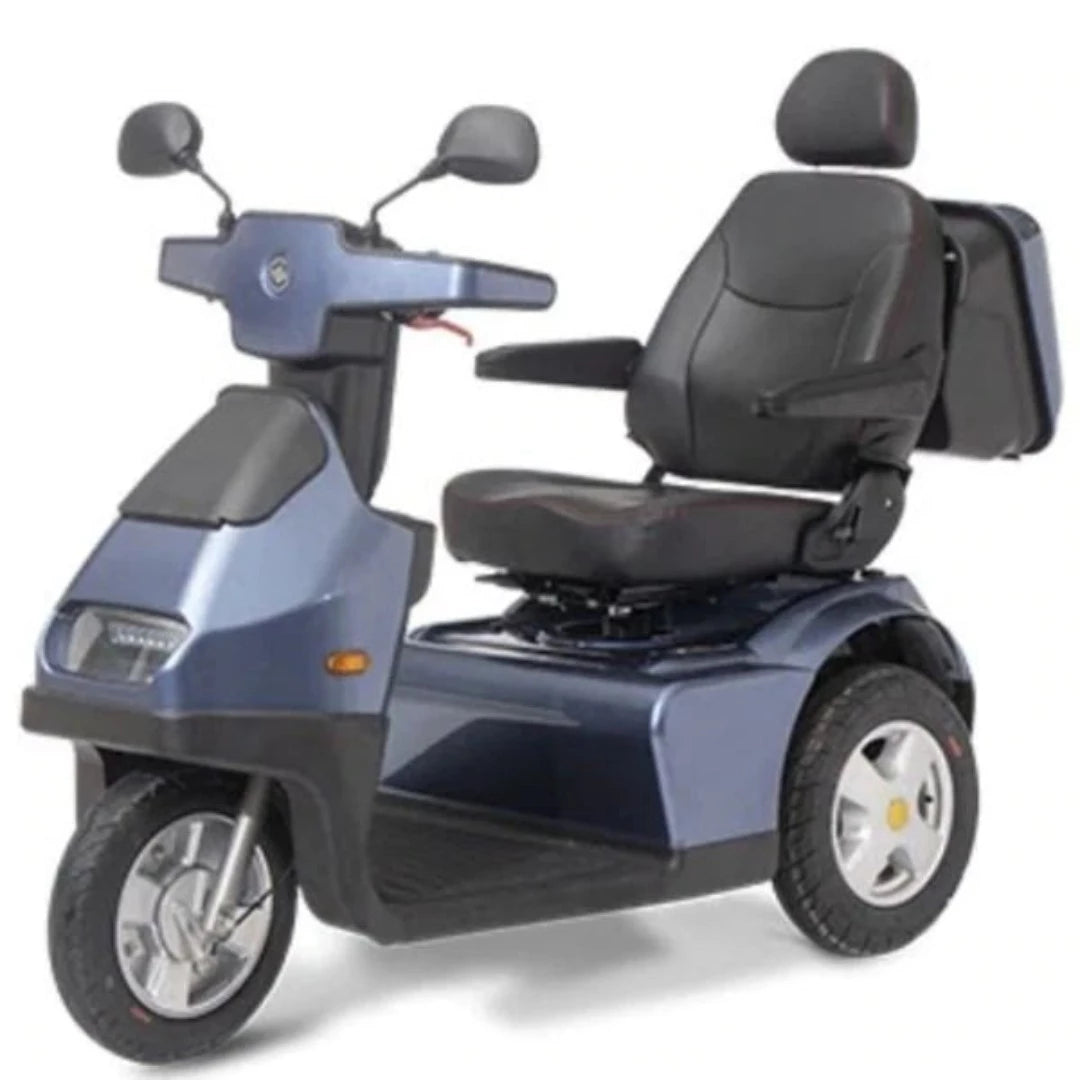

The Afiscooter Breeze S is winner of the prestigious Red Dot Design Award. It offers an impressive driving range, an ergonomic design to make the ride more comfortable, a programmable electronic controller, LCD control screen and LED headlights. The Afiscooter Breeze S has a fully adjustable tiller and an integrated canopy for protection from sun and light rain. The Afiscooter Breeze S has a fully adjustable orthopedic seat, full suspension and a shock-absorbing steel frame. The 3 wheel model has superb maneuverability and unrivaled ease of steering.
Features:
- Programmable electronic controller, LCD control screen and LED headlights

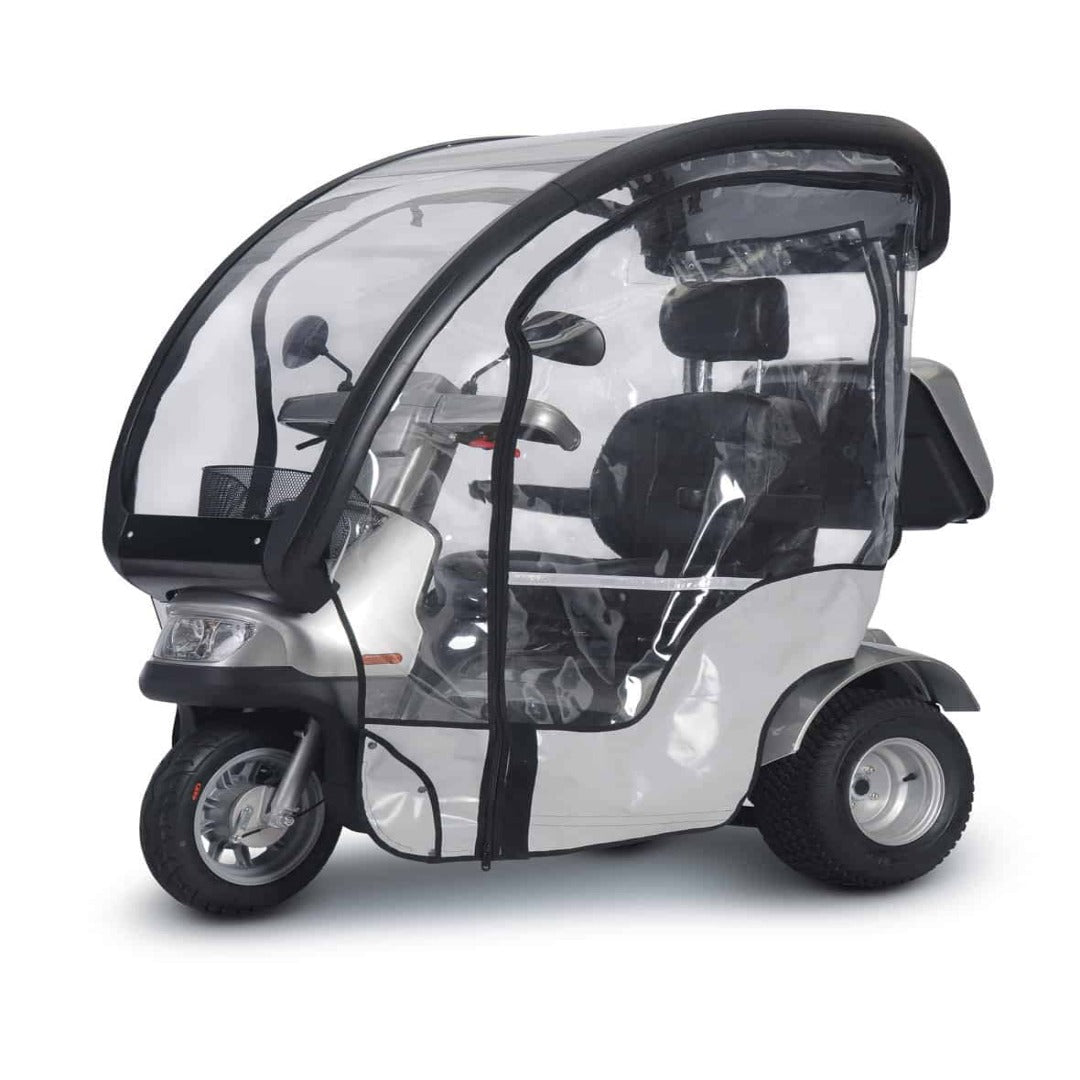

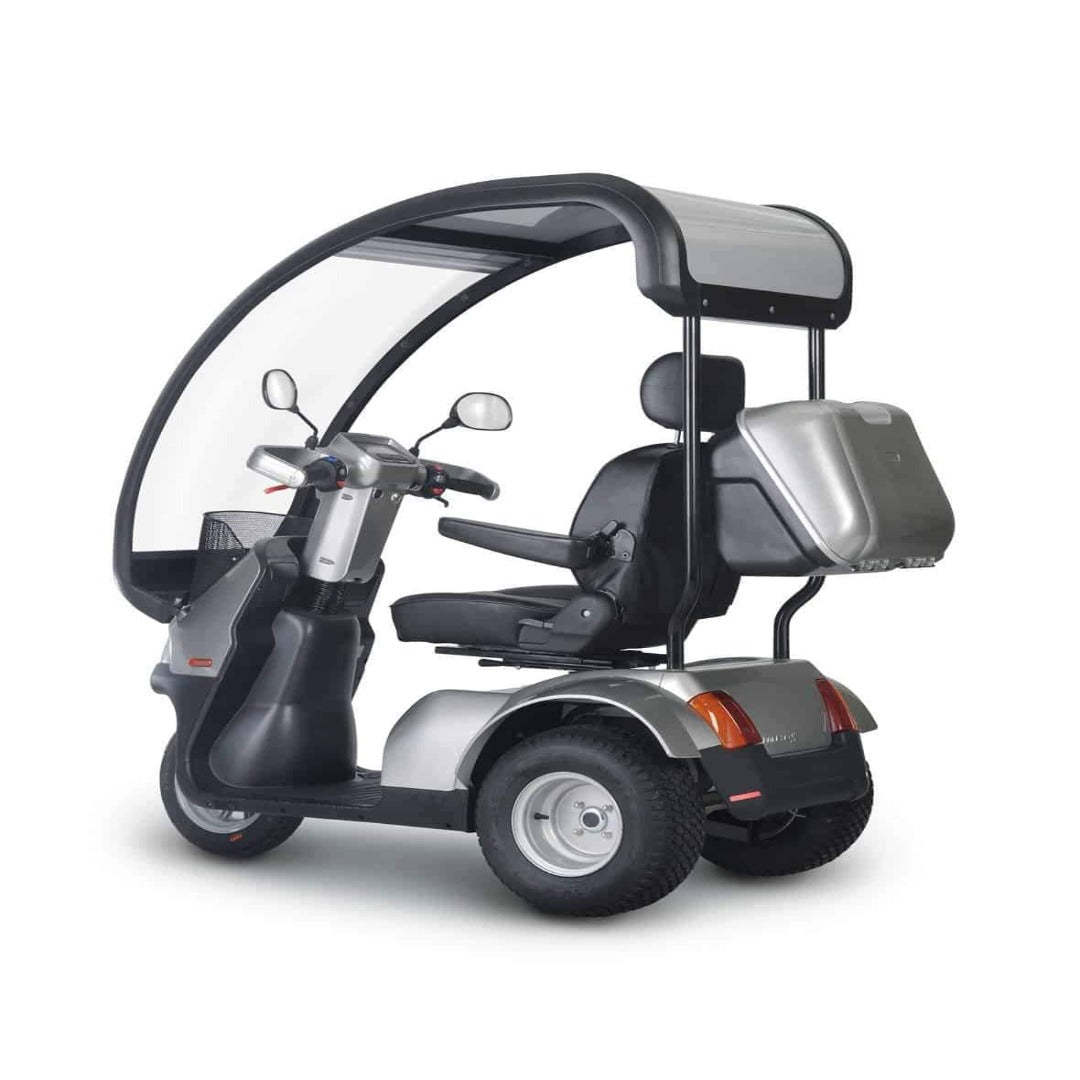

- Fully adjustable tiller and an integrated canopy for protection from sun and light rain.
- Fully adjustable orthopedic seat

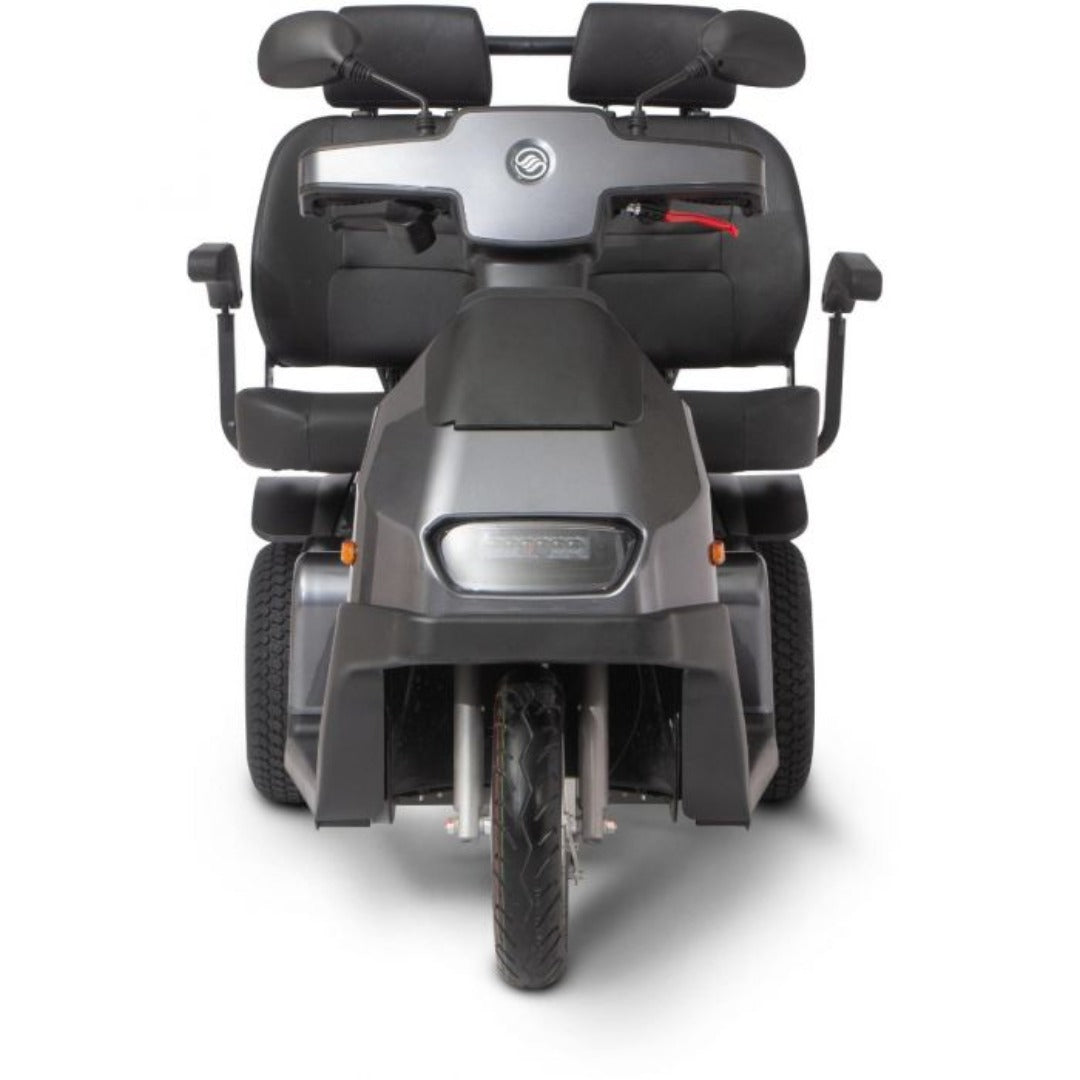

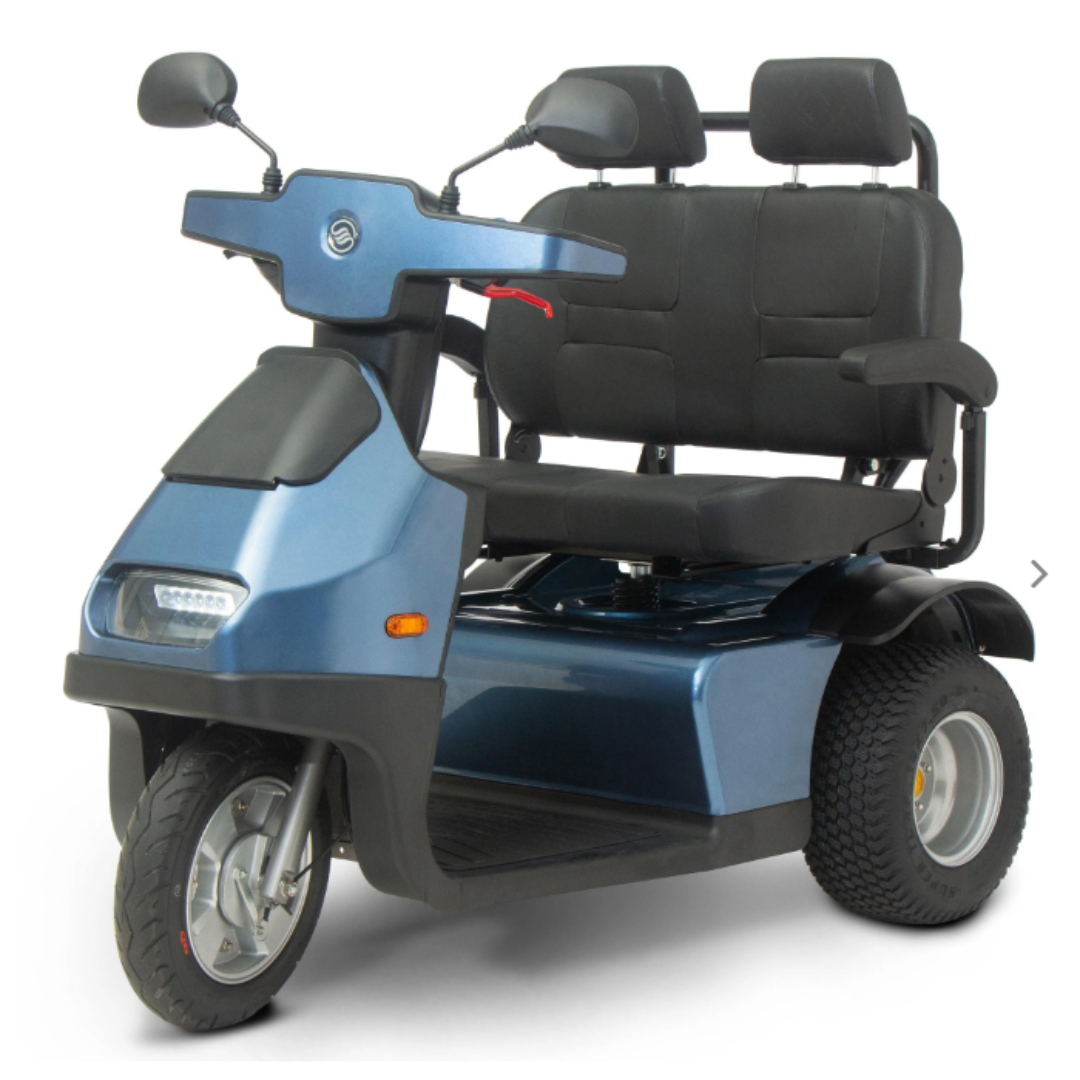

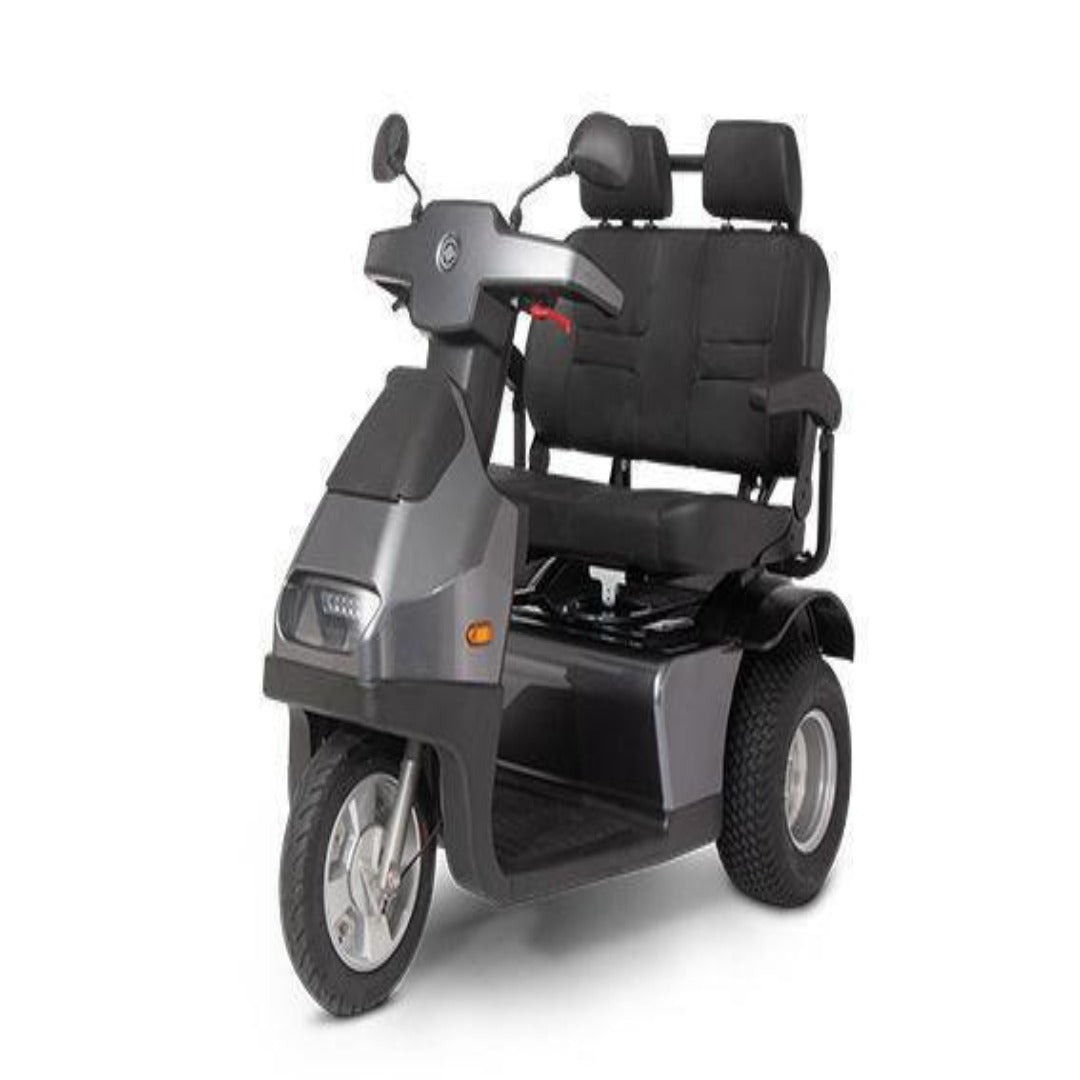

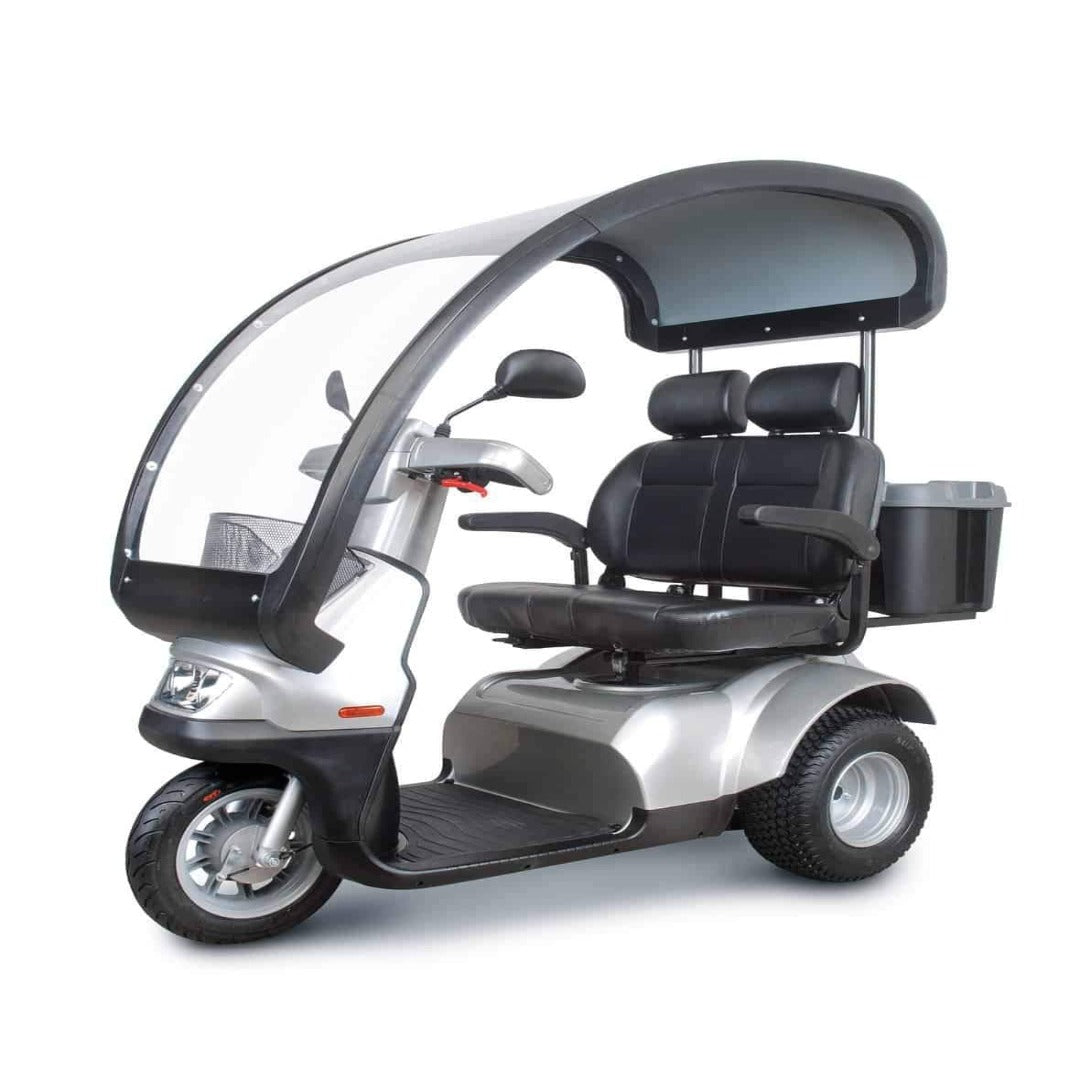

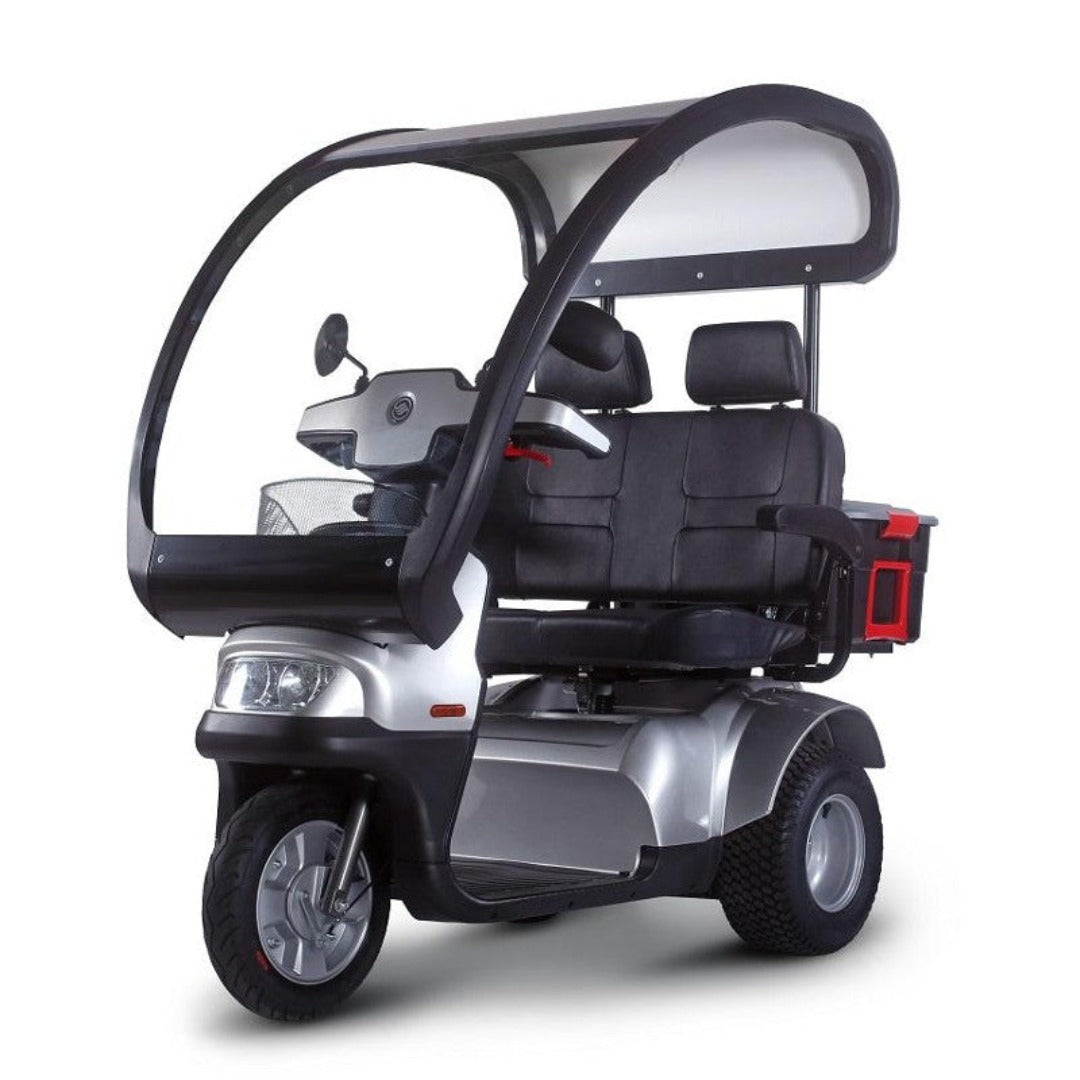

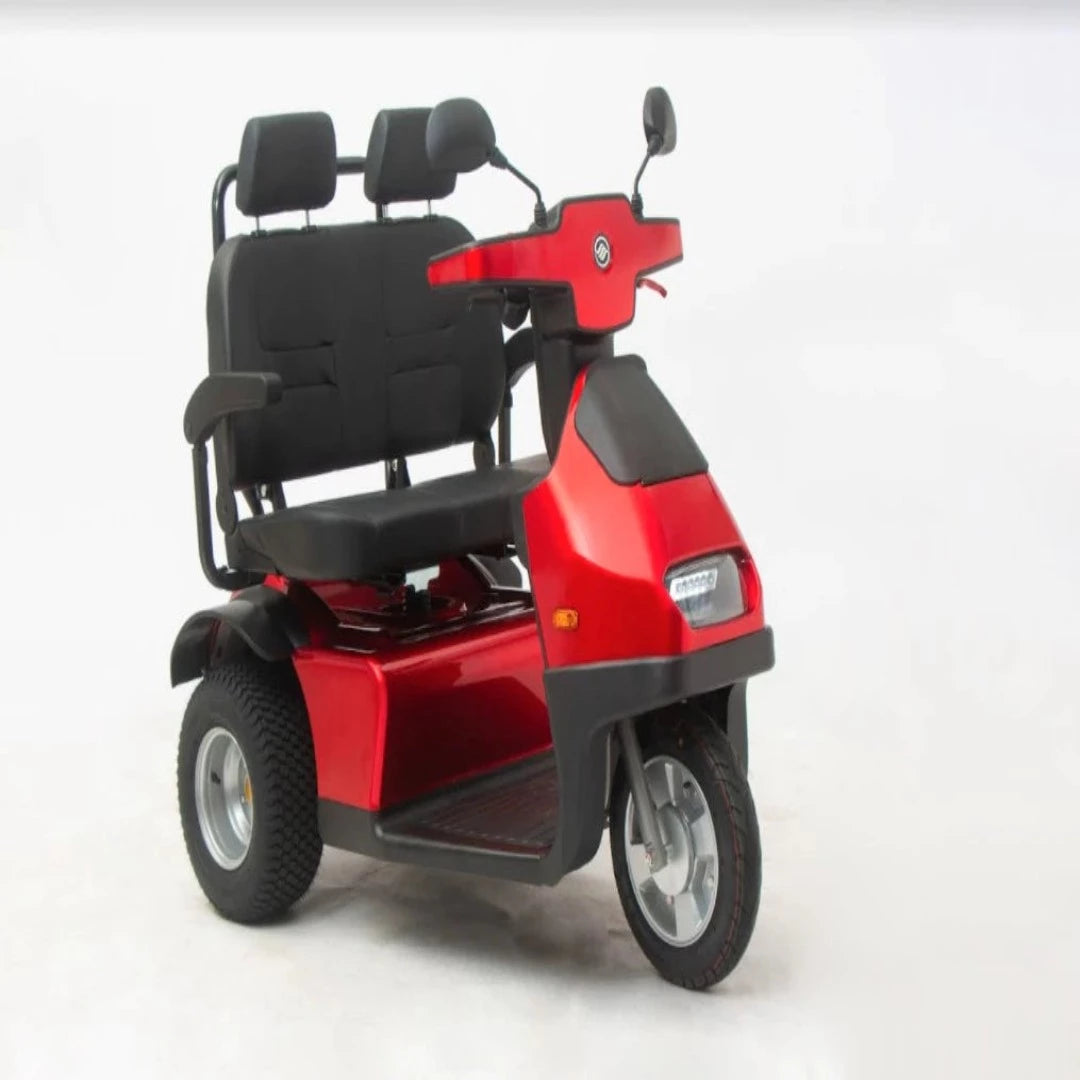

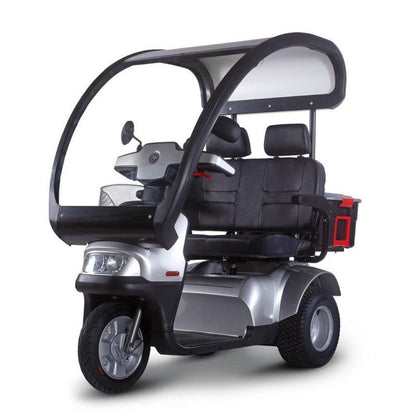

- Available in single seat or xtra wide double seat
- 450 lbs Weight Capacity
Specifications
|
Overall Length
|
60 in / 1,525 mm
|
|
Overall Width
|
27 in / 680 mm
|
|
Folded height(C) – for transport
|
37.4 in / 950 mm
|
|
Overall height without Canopy
|
49 in / 1250 mm
|
|
Overall Height with Canopy
|
65 in / 1640 mm
|
|
Ground Clearance
|
5 in / 125 mm
|
|
Total mass (G)
|
364 lbs / 165 kg
|
|
Load Capacity
|
450 lbs / 200 kg
|
|
Motor Type
|
1400 Watt
|
|
Mass of the heaviest part (H)
|
51 lbs / 23 kg (Battery)
|
|
Theoretical Distance Range
|
25-32 mile / 40-50 km
|
|
Obstacle climbing
|
4.5 in / 120 mm
|
|
Maximum speed forward**
|
9.3 Mph / 15.0 km/h |
|
Minimum braking distance from max speed***
|
9.8 ft / 3,000 mm (on the flat)
|
| Pneumatic Tyres |
3.00-10"
3.50-10"
|
|
Pressure of front tyres:
Pressure of rear tyres:
|
25 psi / 1.7 bars
25 psi / 1.7 bars
|
|
Battery type
Capacity
Charger
Dimensions
|
Lead Acid /Gel/dry, 2x12 V
70 -85 Ah max.
Charge current 12Amp.max.
10.4 in x 6.9 in x 9 in / 265mm x 175mm x 230mm
|
|
Seat plane angle
|
4°
|
|
Effective seat depth (M)
|
18 in / 455 mm
|
|
Effective seat width (N)
|
20 in / 510 mm
|
|
Footrest to seat distance (at
front edge) (O)
|
17 in / 430 mm
19.3 in / 490 mm
|
|
Backrest angle (P)
|
90° - 105° |
| Backrest height |
25.5 in / 650 mm |
|
Armrest to seat distance (K)
|
11.5 in / 292 mm
|
|
Handrim diameter (S)
|
1 in / 25 mm
|
|
Minimum turning radius (Y)
|
56.3 in / 1430mm
|
|
Minimum turn-around radius (Z)
|
44.5 in / 1130mm |
|
Charger for charging dry/gel acid battery
|
24VDC max charge 8 Amp. |
