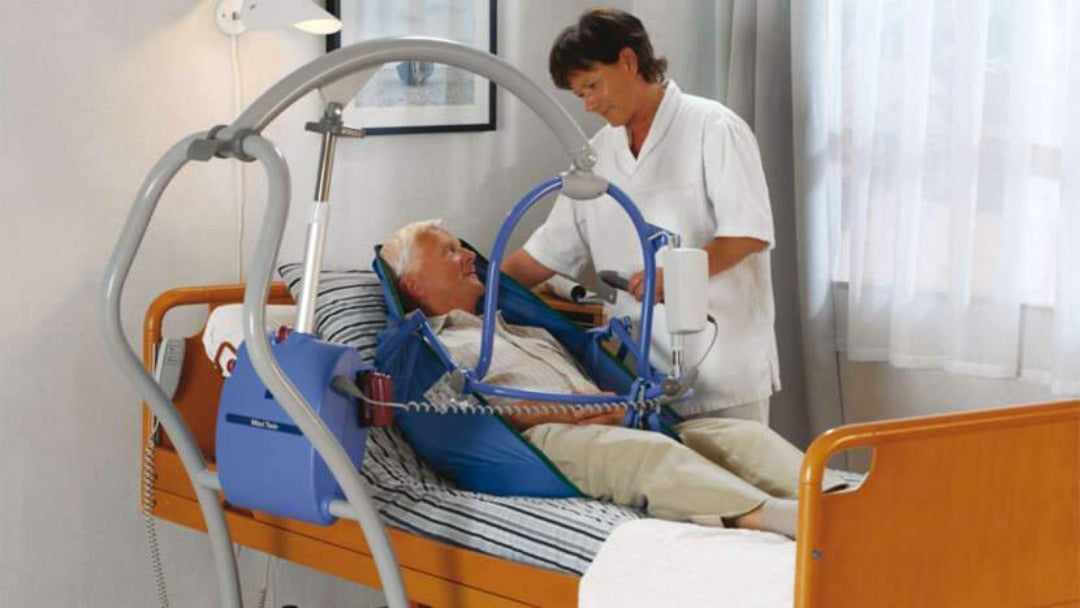

Arjo Maxi Twin Floor Patient Lifter - Arc Style with Powerbase

Arjo KTBB4BSU2WW
$7,995.44
$7,995.44 $9,959.00
You save 19% ($1,963.56)
Scale Option
Spreader Type

The open design of the Arjo Huntleigh Maxi Twin can enhance safe working practices for caregivers when transferring dependent patients or residents. The twin-mast design distributes the weight evenly, and the large handholds enable caregivers to maneuver the lifter. The open mast design also allows for additional legroom for the patient. Integrated with the spreader bar is a powered dynamic positioning system (PDPS) that helps in repositioning the patient in the sling, minimizing manual handling.

Features:

  • MANEUVERABILITY - The twin-mast design distributes the weight evenly, and the large handholds enable caregivers to maneuver the lifter. The open mast design also allows for additional legroom for the patient.
  • EYE CONTACT - The dual mast is designed to enable close, reassuring contact between caregiver and patient throughout the transfer.
  • PRECISION TRANSFERS - Integrated with the spreader bar is a powered dynamic positioning system (PDPS) that helps in repositioning the patient in the sling, minimizing manual handling.
  • SINGLE CAREGIVER - Maxi Twin has been designed to be operated by a single caregiver.
  • ELECTRONIC SCALE (OPTION) - Optional electronic scale enables the caregiver to weigh the patient while performing a transfer.
  • POWERED DPS - The powered dynamic positioning system (PDPS) minimizes manual handling and improves precision when positioning the patient.
  • RANGE OF SPREADER BARS - The choice of different loop spreader bar sizes and a 4-point spreader bar with powered DPS offers options for patients with different needs.
  • ERGONOMIC HANDLING - The Maxi Twin dual mast provides convenient positioning handles to suit caregivers of different heights.
  • HIGH-FRICTION SOLUTION - The friction solution reduces swinging of the spreader bar during patient transfers
Specifications
Weight and dimensions
Max safe working load kg 182 kg
Max safe working load lb 400 lbs
Lifter weight (with spreader bar and battery) kg 58 kg
Lifter weight (with spreader bar and battery) lb 126 lbs
Max lifting height mm 1460 mm
Max lifting height in 57,7 in
Min lifting height mm 230 mm
Min lifting height in 9,12 in
Lifting stroke mm 1230 mm
Lifting stroke in 48,5 in
Min total storage height mm 1370 mm
Min total storage height in 54 in
External width legs closed mm 755 mm
External width legs closed in 29,75 in
External width legs open mm 54 in
External width legs open in 1371 mm
Internal width leg closed mm 630 mm
Internal width leg closed in 24,9 in
Internal width leg open mm 1231 mm
Internal width leg open in 48,5 in
Leg clearance (floor to top of legs) - standard castors mm 115 mm
Leg clearance (floor to top of legs) - standard castors in 48,5 in
Leg clearance (floor to top of legs) – low castors mm 4,7 in
Chassis clearance (floor to bottom of chassis) – standard & low castors mm 31 mm
Chassis clearance (floor to bottom of chassis) – standard & low castors in 1,2 in
Lifter length mm 1298 mm
Lifter length in 51,12 in
Turning diameter mm 1440 mm
Turning diameter in 56,6 in
Electrical
Lifter protection class IP24
Hand control protection class IPX7
Battery 24V, 2.5 Ah NiMH



Downloads

Click The Links Below To Download

Scales Instructions for Use

Maxi Twin Quick Reference Guide - Use

Maxi Twin Quick Reference Guide - Functions
