Arjo Parker Patient Bathing System - Height-Adjustable Sitting and Recline Bathing
Arjo Parker Patient Bathing System - Height-Adjustable Sitting and Recline Bathing
Share
SKU:AL26010-US
Regular price
$15,789.00 USD
Sale price
$15,789.00 USD
Regular price
$17,999.00 USD
Unit price
/
per
Hurry, only 10 left in stock
Couldn't load pickup availability
We accept

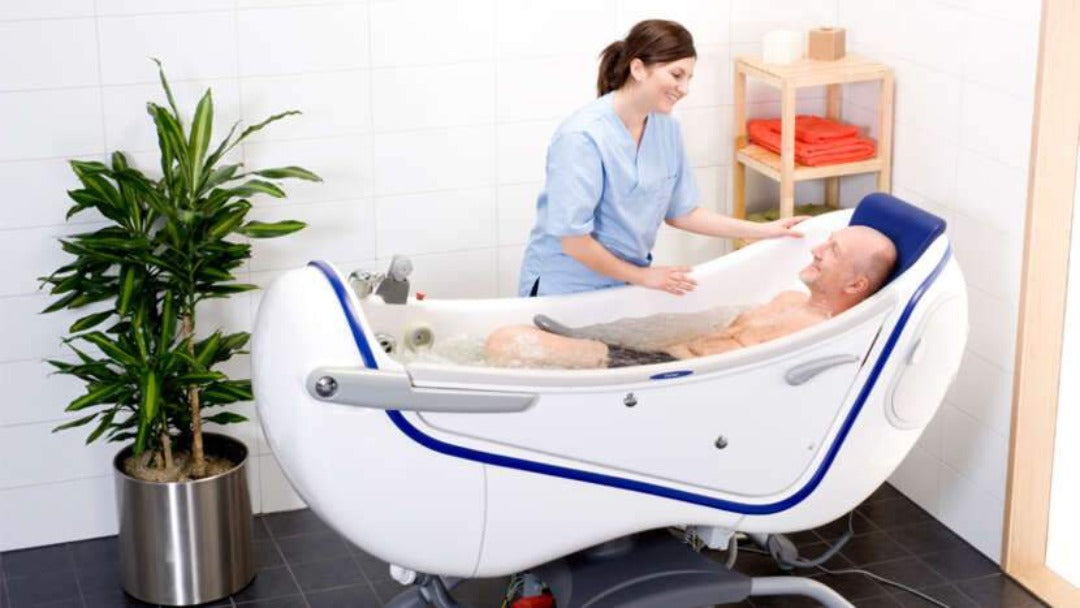

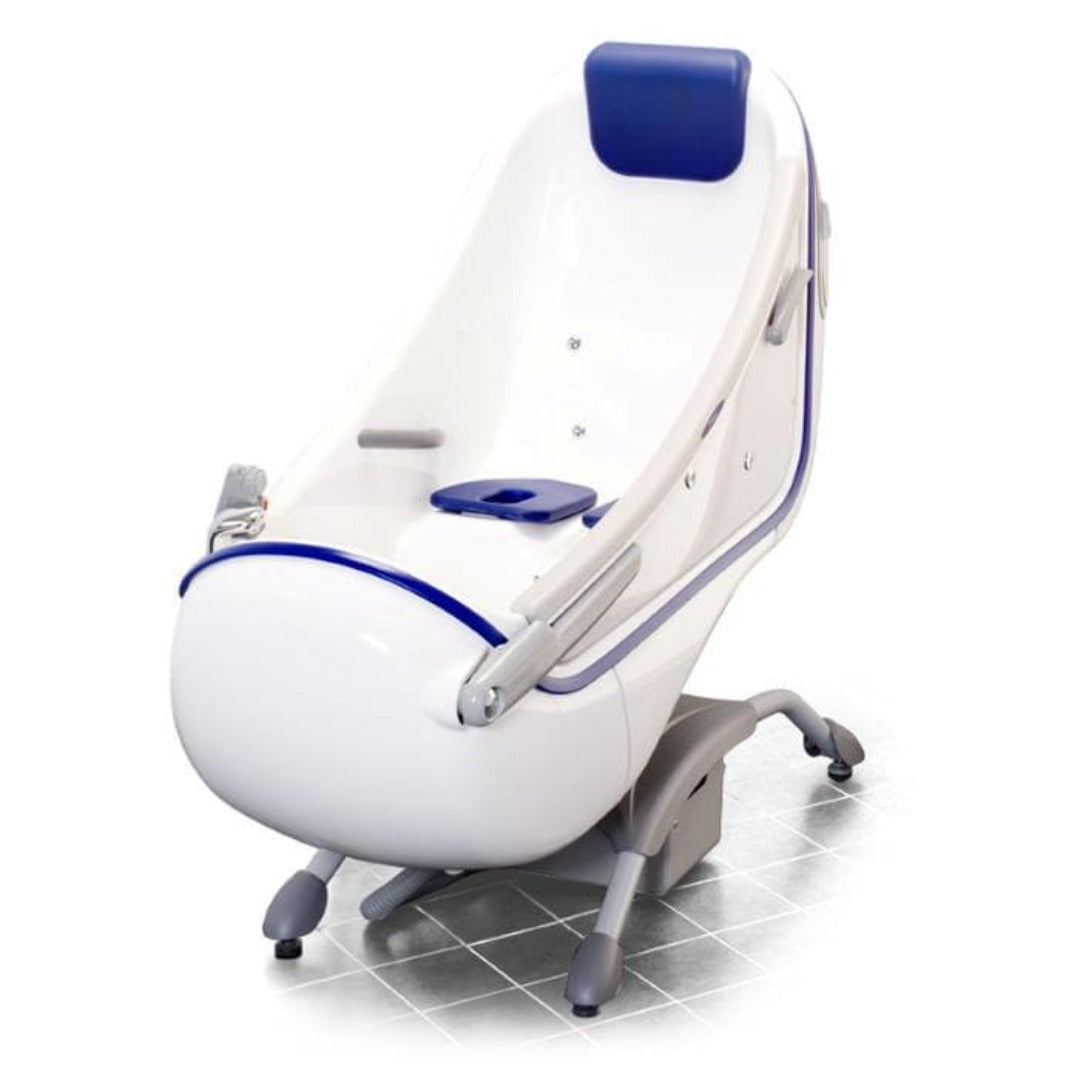

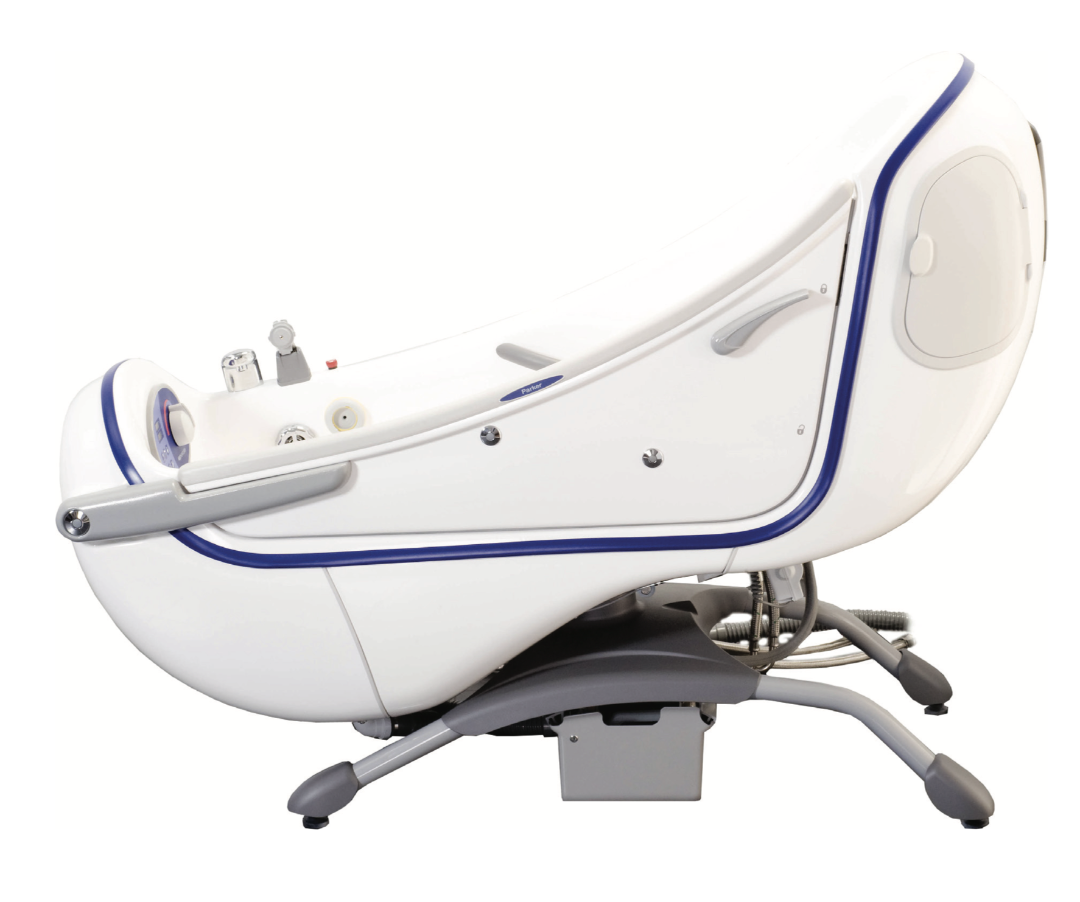

Featuring a distinctive swinging door, Parker is designed to enable independent to assisted transfers into and out of the tub. Parker is height-adjustable and goes from sitting to reclining, allowing the carer and resident to chose their preferred position to enhance the bathing experience.
Features:

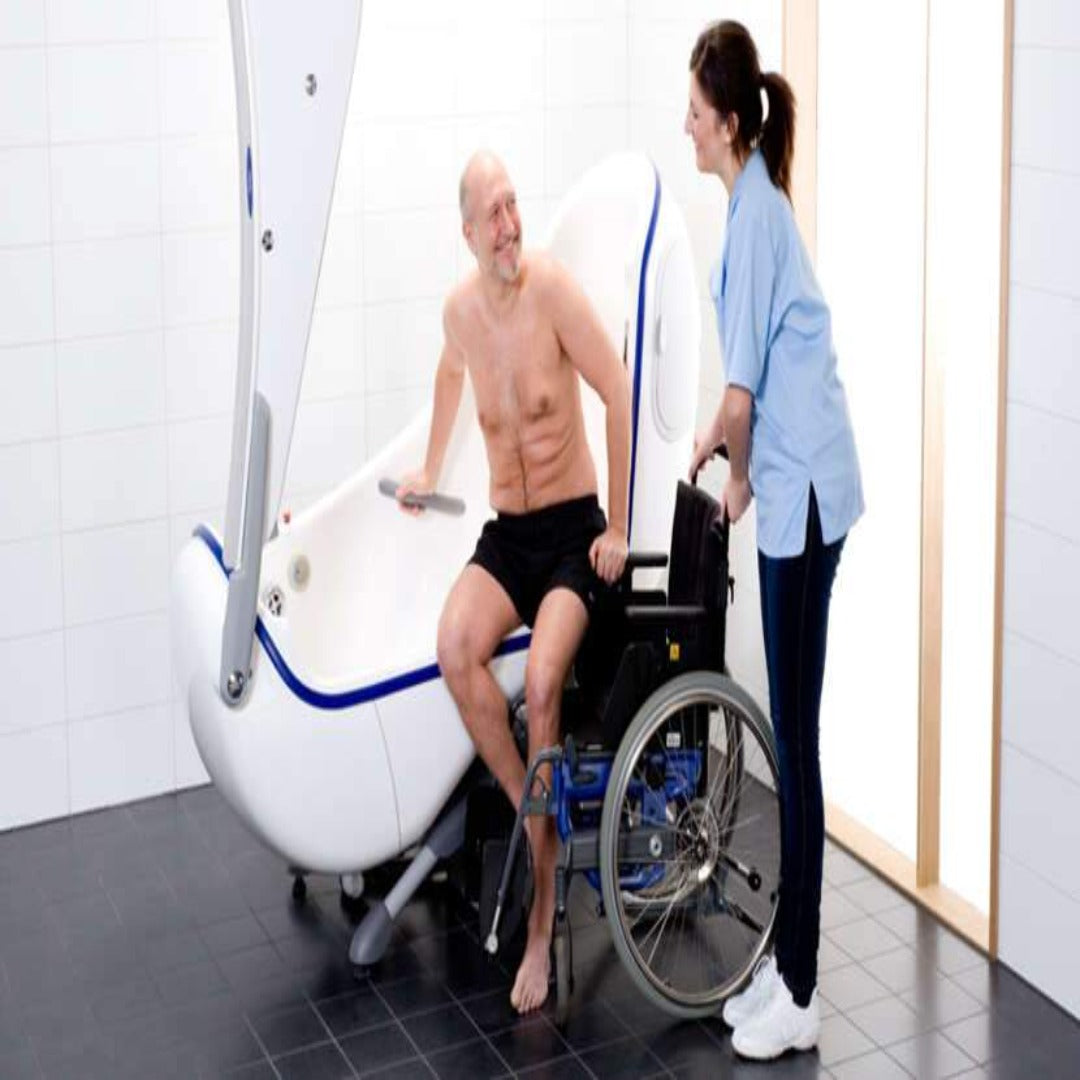

- Independent and Assisted Transfers - Height-adjustable Parker can be positioned in sitting and reclining positions. Its swing-up side door is designed to facilitate smooth access for patients and residents with mobility levels A through C without the need for additional bath lifters. Parker is also appropriate for residents with mobility level D when paired with a passive ceiling lifter.
- Multiple Levels of Anti-Scalding Protection - Including clear temperature displays, temperature and pressure regulated mixing valves, and automatic hot water shut off when exceeding safe temperatures.

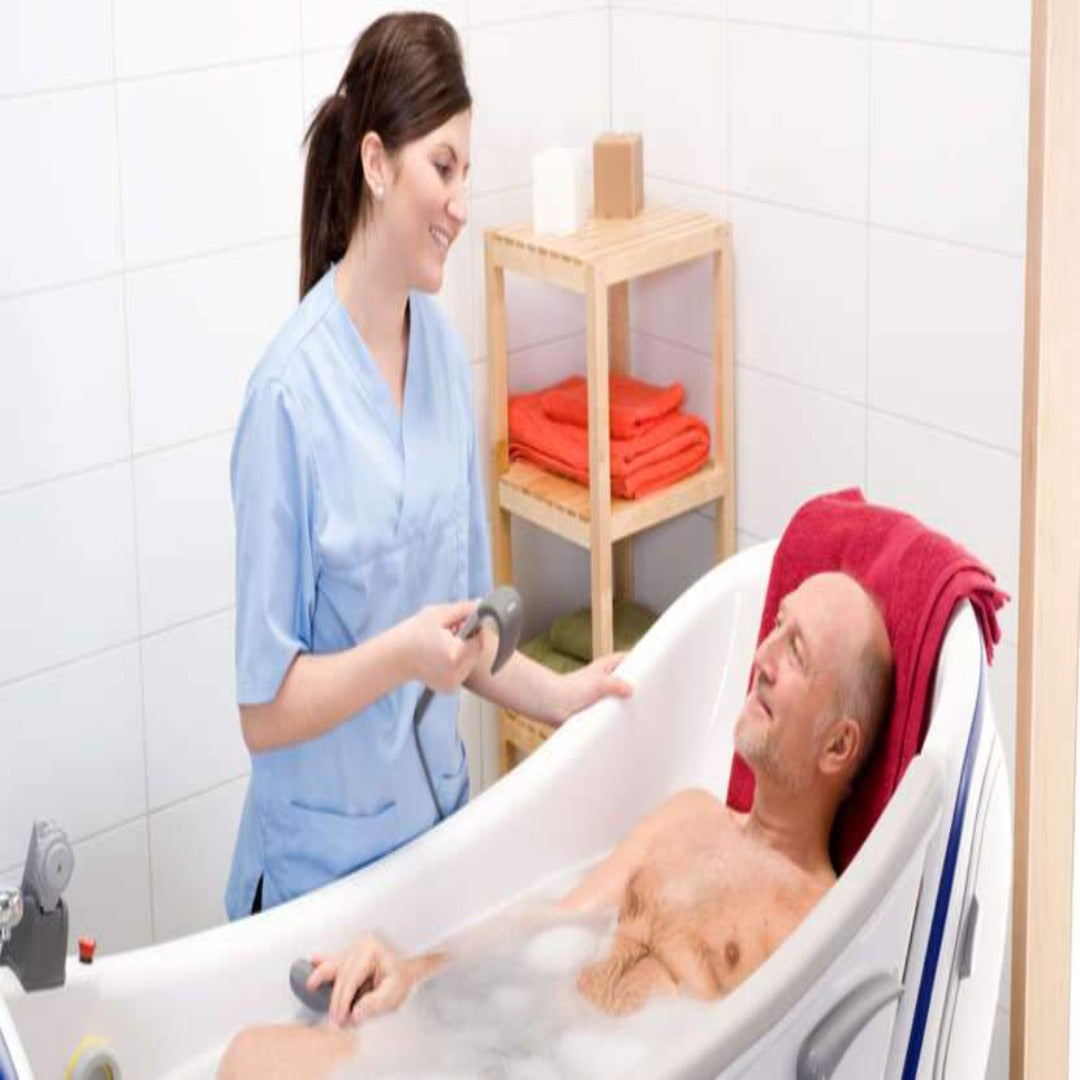

- Enhance the Wellness Benefits of Bathing - Choose between still immersion bathing, Air Spa and Sound and Vision to enhance relaxation and make the most of the wellness benefits of bathing.
- Suitable for Residents with mobility levels A to C. Also suitable for mobility level D when paired with a passive lifter.
Specifications
| Weight and dimensions | |
|---|---|
| Max safe working load (SWL) kg | 300 kg |
| Max safe working load (SWL) lb | 661 lb |
| Maximum patient weight kg | 210 kg |
| Maximum patient weight lb | 463 lb |
| Total weight kg | 126 kg |
| Total weight lb | 280 lb |
| Total length mm | 1960 mm |
| Total length in | 77,12 in |
| Total width mm | 750 mm |
| Total width in | 29,5 in |
| Water consumption L | 230 L |
| Water consumption Gal | 60,8 Gal |
| Filling time at 3bar (43.5 psi) | 1 min 42 sec |
| Emptying time | 3 min |
| Height of door in highest position mm | 2510 mm |
| Height of door in highest position in | 98,9 in |
| Seat height at lowest position mm | 565 mm |
| Seat height at lowest position in | 22,25 in |
| Seat height at highest position mm | 685 mm |
| Seat height at highest position in | 27 in |
| Maximum static water pressure | 6 bar |
| Minimum operating pressure | 1 bar |
| Electrical | |
| IP Class | IP X4 |
| IP Class Hand control | IP X7 |
Downloads
Click The Links Below To Download
Parker Quick Reference Guide - Disinfection
Parker Instructions for Use
Parker Quick Reference Guide - Use
Parker Quick Reference Guide - Functions
