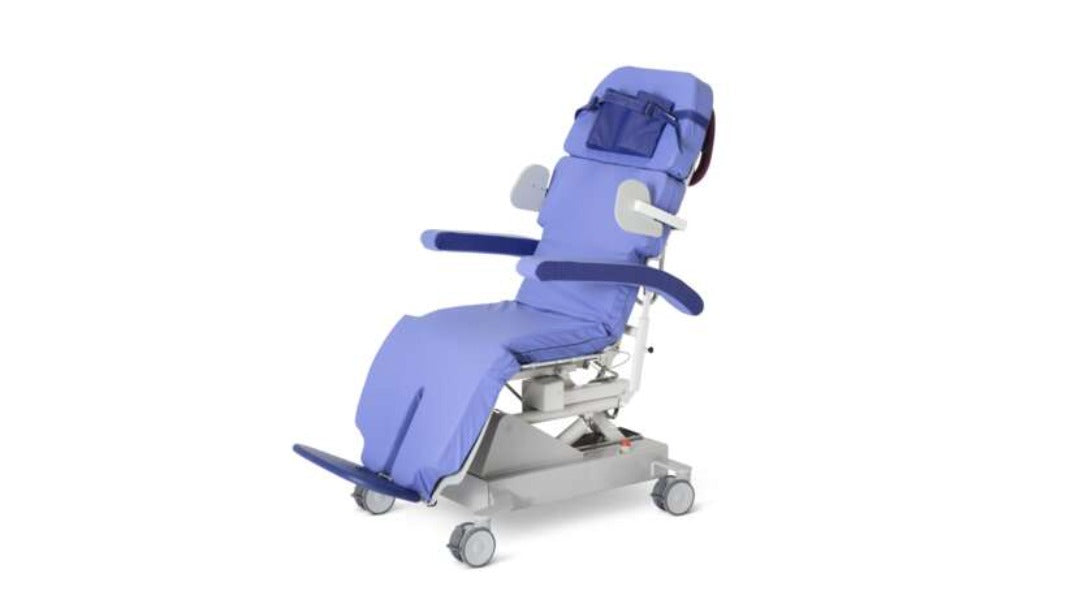

The Arjo Sara® Combilizer APA1000 Full Standing Aid Patient Lift & Transfer with Full Recline will engage earlier mobilization of ventilated patients previously deemed high risk or inappropriate to mobilize, as well as patient with low attention and level of consciousness, poor trunk stability and hemofiltration lines in the groin.
A growing body of evidence supports the effectiveness of early mobilization. When utilized, early mobility is associated with reduced ICU and hospital length of stay and improved functional outcomes.
A review article on early mobilization in the ICU concluded: “A new approach for managing mechanically ventilated patients includes reducing deep sedation and increasing rehabilitation therapy and mobilization soon after admission to the ICU. Research provides preliminary evidence supporting the safety, feasibility and potential benefits of early mobilization in critical care medicine.”1
A standing or sitting position can deliver benefits that are vitally important in an optimized recovery process for a critically ill patient.

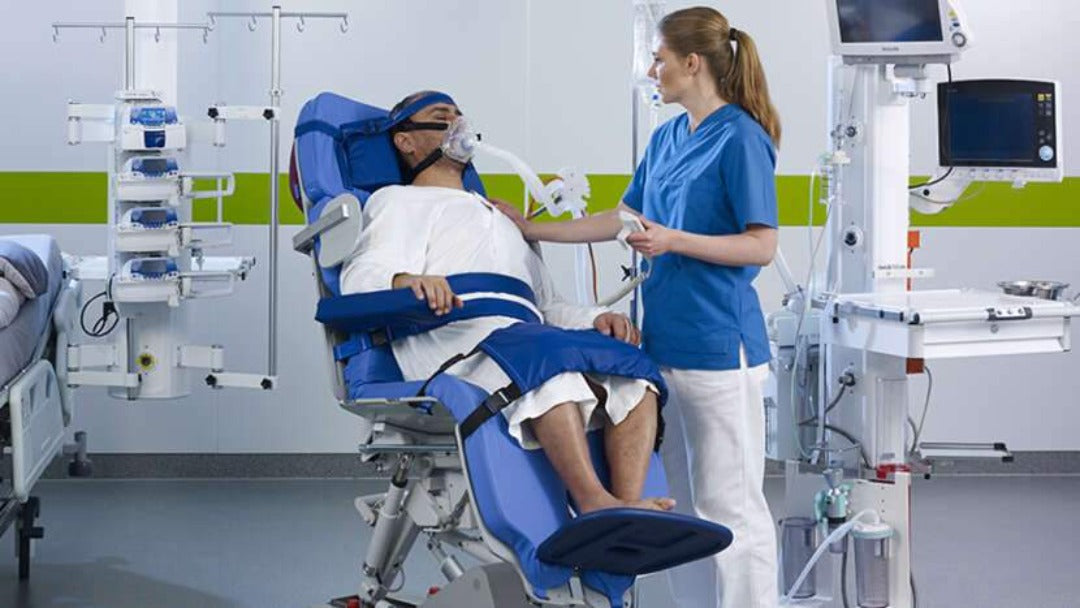

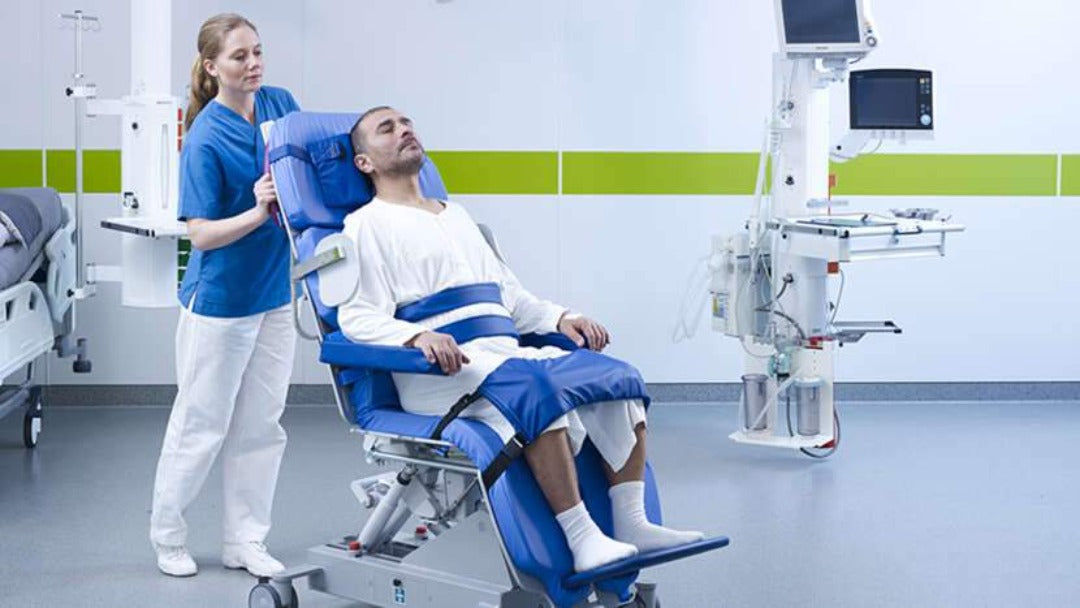

Sara Combilizer enables unconscious, sedated or mechanically ventilated patients to be mobilized in different standing or sitting positions for several hours per day.

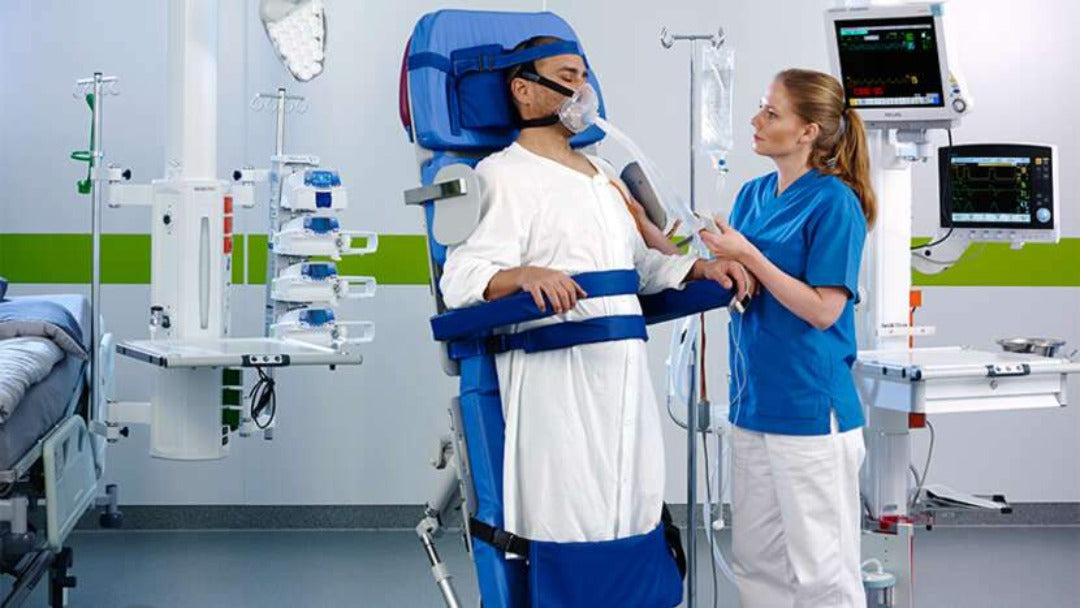

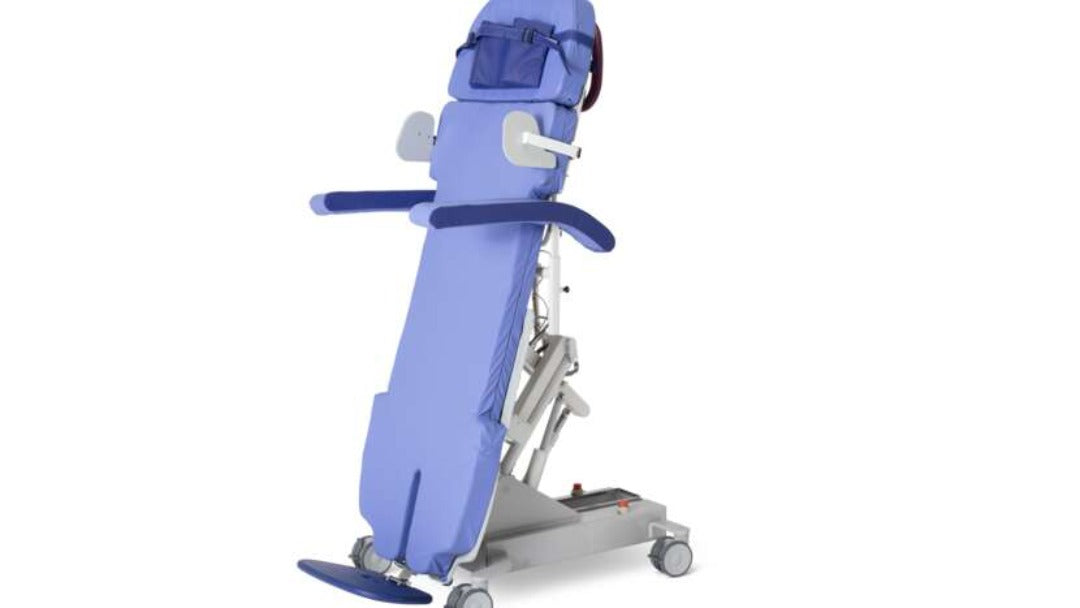

The innovative design of Sara Combilizer provides a safe and secure platform so that patients can remain standing for the required amount of time to fully maximize early mobilization benefits.
Sara Combilizer provides this benefit in combination with a full range of patient positioning options, making it a comprehensive solution for early mobilization and related rehabilitation exercises.

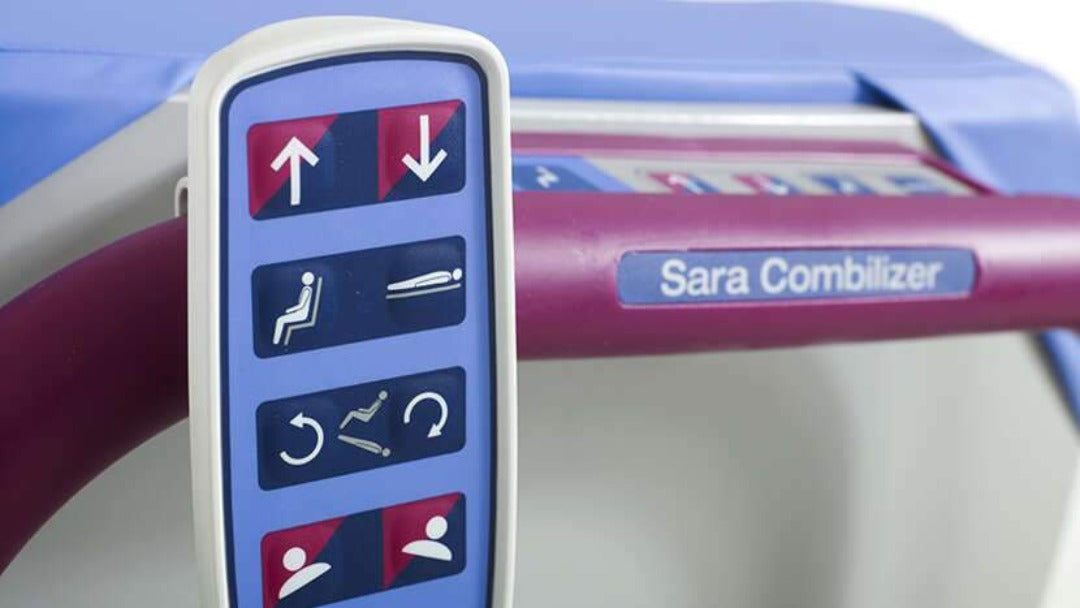

- All patient positioning options powered and hand control operated.
- Removable NiMH battery, to be charged in a separate charging station.
- Inclinometer indicating the level of inclination.
- Low friction castors, all with brakes.
- Adjustable foot plate with anti-slip properties.
- Adjustable arm-rests.
- Adjustable lumbar support.
- Adjustable and foldable shoulder supports.
- Mattress covers in breathable fabric that provides multidirectional stretch.
- Designed for easy cleaning and disinfection, with no fastener strips or push buttons.
- Safety and emergency features
- Adjustable safety belt system securing the patient at knee, hip and chest.
- Three level redundant maneuvering controls for safety.
- Manual “Quick-down” emergency lowering option from standing to lying position enabling CPR.
- Built in pinch protection.
- Dual emergency stops and system failure override.
| Product Information |
| Max safe working load kg |
200 kg |
| Max safe working load lb |
440 lb |
| Weight kg |
115 kg |
| Weight lb |
265 lb |
| Width mm |
750 mm |
| Width in |
29,5 in |
| Max patient length cm |
196 cm |
| Min patient length cm |
148 cm |
| Chassis dimensions (incl. castors) mm |
915 x 714 mm |
| Chassis dimensions (incl. castors) in |
36 x 28 1/8 in |
| Max length (stretcher) mm |
2045 mm |
| Max length (stretcher) in |
80 1/2 in |
| Min length (chair incl. foot plate) mm |
1580 mm |
| Min length (chair incl. foot plate) in |
62 1/4 in |
| Max height (seat surface) mm |
984 mm |
| Max height (seat surface) in |
38 3/4 in |
| Min height (seat surface) mm |
588 mm |
| Min height (seat surface) in |
2,25 in |
| Turning radius, stretcher mm |
2045 mm |
| Turning radius, stretcher in |
80,5 in |
| Turning radius, chair mm |
1840 mm |
| Turning radius, chair in |
72,3 in |
| Max elevation, standing: |
75° |
| Max sideways tilting: |
20° |
| Trendelenburg tilt: |
-15° |
| Electrical |
| Lifter protection class |
IPX4 |
| Handcontrol protection class |
IPX6 |
| Battery |
NiMH, 2,5Ah, 24 V DC |
