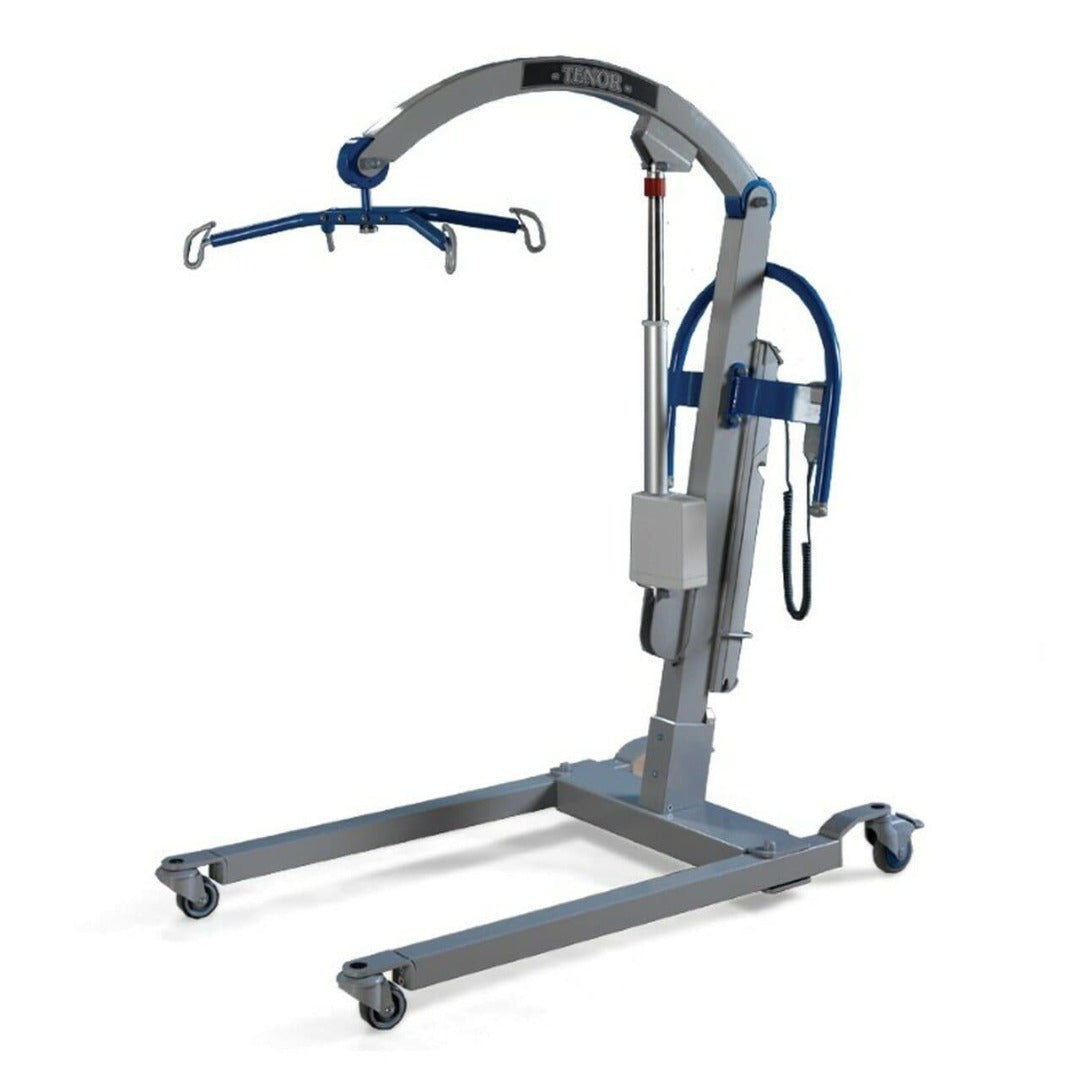

Arjo Tenor Mobile Floor Lifter Arc Style Lift - For Larger Patients

SKU:KHA1010-US

$11,789.44 USD

$11,789.44 USD ~~$13,000.00 USD~~

Sale Sold out

50 in stock

Quantity

We accept

X

View full details

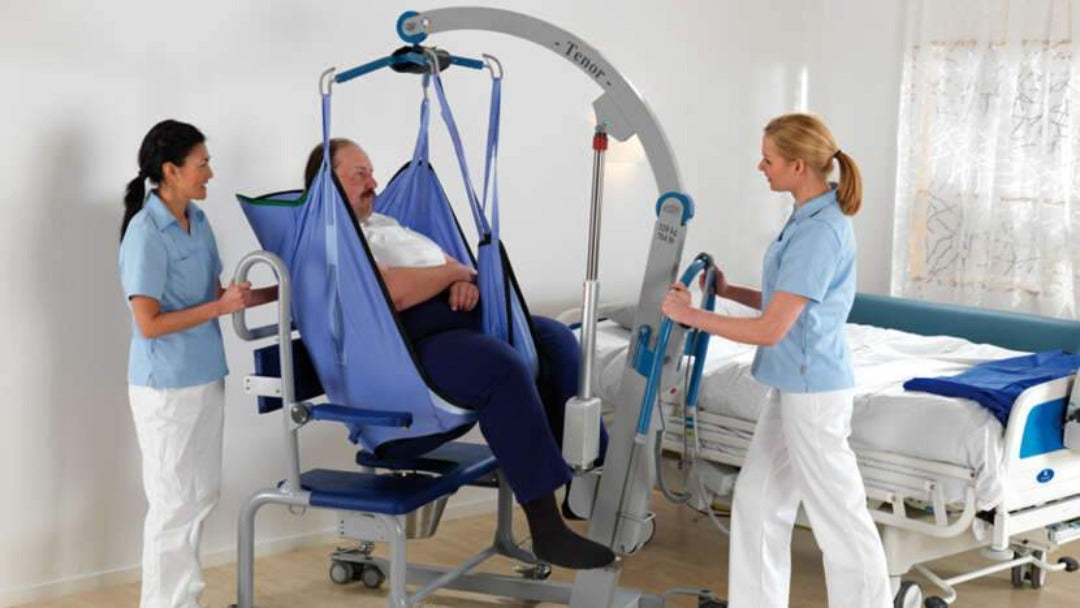

The Arjo Huntleigh Tenor mobile floor lifter is specifically designed for lifting and transferring plus-size patients or residents. The design incorporates features that ensure exceptional strength and stability. The lightweight aluminum structure provides a safe working load of 704 lb / 320 kg. Familiar arc lifter with a hand control enables the caregiver to stay close to the patient throughout the transfer.

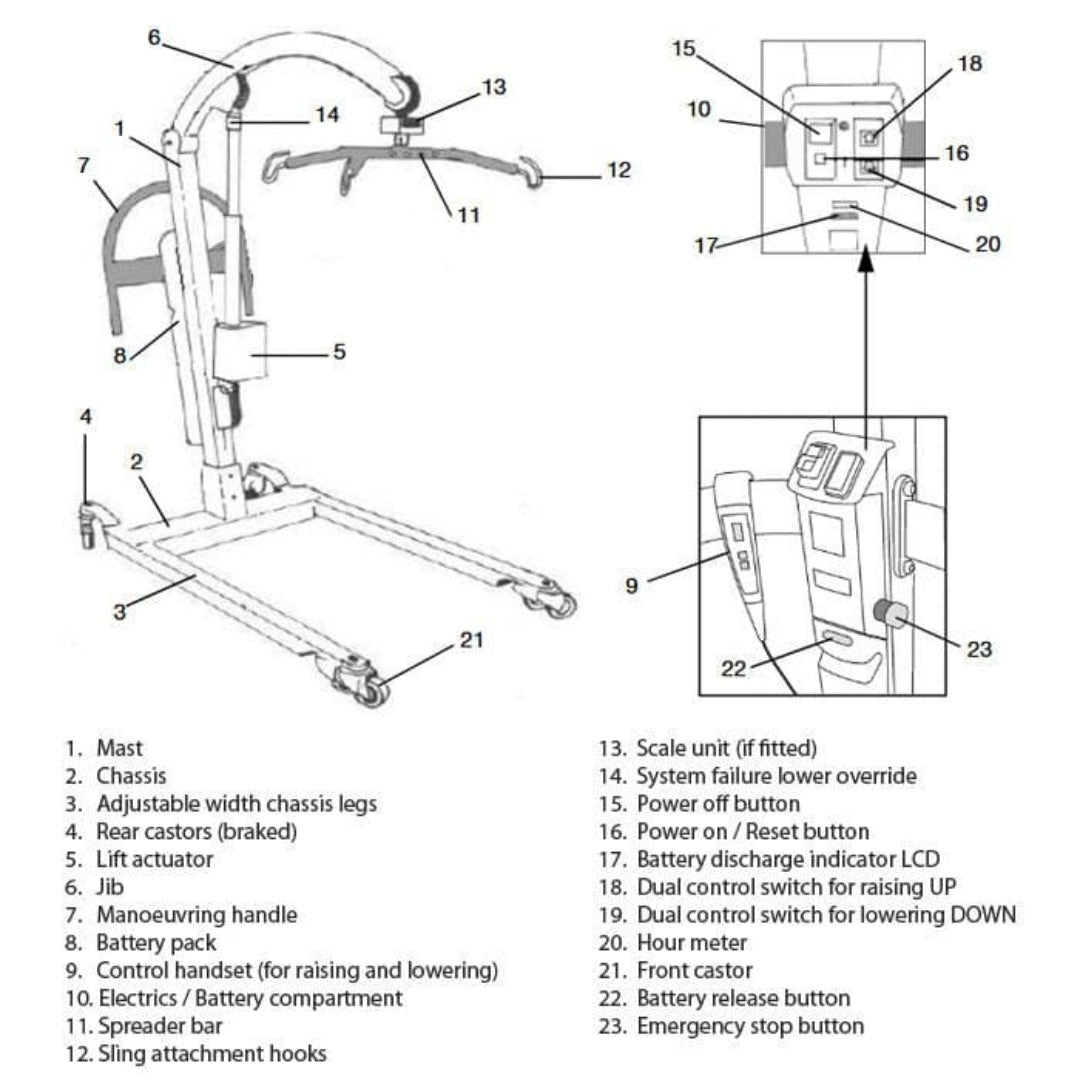

Features:

LIFTING CAPACITY - The design incorporates features that ensure exceptional strength and stability. The lightweight aluminum structure provides a safe working load of 704 lb / 320 kg.
SLING RANGE - The slings are designed to meet the comfort and support requirements of dependent plus-size patients.
SCALE (OPTION) - Optional suspended scale enables the caregiver to weigh the patient while performing a transfer.
INTEGRATED SOLUTION - The connection of the spreader bar with the sling attachment enables 360-degree movement of the patient during transfer and positioning.
FAMILIARITY - Familiar arc lifter with a hand control enables the caregiver to stay close to the patient throughout the transfer.
SHAPED FOR STRENGTH - Curved jib design with a capacity to lift 704 lb/320 kg. The curved design maximizes lifting clearance and is important for 360-degree rotation when patient is lifted.
SPREADING THE WEIGHT - Using the 4-point bariatric spreader bar provides a wider gap between the shoulder and leg hooks. This distributes the patient’s weight and is designed to reduce the squeezing forces from the sling.
ERGONOMIC HANDLEBAR - The ergonomically designed curved handlebar enables the caregiver to turn and maneuver in the care environment.
DUAL CONTROLS - Tenor can be operated from the control panel on the mast or with the hand control, which enables the caregiver to stay close to the patient while operating the lifter.

Specifications

Weight and dimensions
Max safe working load kg	320 kg
Max safe working load lb	704 lb
Lifter weight (with spreader bar and battery) kg	69,1 kg
Lifter weight (with spreader bar and battery) lb	152,3 lb
Max lifting height mm	1860 mm
Max lifting height in	73,2 in
Min lifting height mm	600 mm
Min lifting height in	23,7 in
Lifting stroke mm	1260 mm
Lifting stroke in	49,7 in
Min total storage height mm	1470 mm
Min total storage height in	57,9 in
External width legs closed mm	745 mm
External width legs closed in	29,4 in
External width legs open mm	1250 mm
External width legs open in	49,2 in
Internal width leg closed mm	625 mm
Internal width leg closed in	24,7 in
Internal width leg open mm	1160 mm
Internal width leg open in	45 in
Leg clearance (floor to top of legs) - standard castors mm	105 mm
Leg clearance (floor to top of legs) - standard castors in	4,12 in
Chassis clearance (floor to bottom of chassis) – standard & low castors mm	20 mm
Chassis clearance (floor to bottom of chassis) – standard & low castors in	0,75 in
Lifter length mm	1485 mm
Lifter length in	58,5 in
Turning diameter mm	1650 mm
Turning diameter in	65 in
Electrical
Lifter protection class	IPX4
Hand control protection class	IPX7
Battery	24V 4Ah

Downloads

Click The Link Below To Download

Tenor Instructions for Use

Scales (2016-) Instructions for Use

Tenor Quick reference guide - Use

Tenor Quick reference guide - Functions

The Arjo Huntleigh Tenor mobile floor lifter is specifically designed for lifting and transferring plus-size patients or residents. The design incorporates features that ensure exceptional strength and stability. The lightweight aluminum structure provides a safe working load of 704 lb / 320 kg. Familiar arc lifter with a hand control enables the caregiver to stay close to the patient throughout the transfer.

Features:

LIFTING CAPACITY - The design incorporates features that ensure exceptional strength and stability. The lightweight aluminum structure provides a safe working load of 704 lb / 320 kg.
SLING RANGE - The slings are designed to meet the comfort and support requirements of dependent plus-size patients.
SCALE (OPTION) - Optional suspended scale enables the caregiver to weigh the patient while performing a transfer.
INTEGRATED SOLUTION - The connection of the spreader bar with the sling attachment enables 360-degree movement of the patient during transfer and positioning.
FAMILIARITY - Familiar arc lifter with a hand control enables the caregiver to stay close to the patient throughout the transfer.
SHAPED FOR STRENGTH - Curved jib design with a capacity to lift 704 lb/320 kg. The curved design maximizes lifting clearance and is important for 360-degree rotation when patient is lifted.
SPREADING THE WEIGHT - Using the 4-point bariatric spreader bar provides a wider gap between the shoulder and leg hooks. This distributes the patient’s weight and is designed to reduce the squeezing forces from the sling.
ERGONOMIC HANDLEBAR - The ergonomically designed curved handlebar enables the caregiver to turn and maneuver in the care environment.
DUAL CONTROLS - Tenor can be operated from the control panel on the mast or with the hand control, which enables the caregiver to stay close to the patient while operating the lifter.

Weight and dimensions
Max safe working load kg	320 kg
Max safe working load lb	704 lb
Lifter weight (with spreader bar and battery) kg	69,1 kg
Lifter weight (with spreader bar and battery) lb	152,3 lb
Max lifting height mm	1860 mm
Max lifting height in	73,2 in
Min lifting height mm	600 mm
Min lifting height in	23,7 in
Lifting stroke mm	1260 mm
Lifting stroke in	49,7 in
Min total storage height mm	1470 mm
Min total storage height in	57,9 in
External width legs closed mm	745 mm
External width legs closed in	29,4 in
External width legs open mm	1250 mm
External width legs open in	49,2 in
Internal width leg closed mm	625 mm
Internal width leg closed in	24,7 in
Internal width leg open mm	1160 mm
Internal width leg open in	45 in
Leg clearance (floor to top of legs) - standard castors mm	105 mm
Leg clearance (floor to top of legs) - standard castors in	4,12 in
Chassis clearance (floor to bottom of chassis) – standard & low castors mm	20 mm
Chassis clearance (floor to bottom of chassis) – standard & low castors in	0,75 in
Lifter length mm	1485 mm
Lifter length in	58,5 in
Turning diameter mm	1650 mm
Turning diameter in	65 in
Electrical
Lifter protection class	IPX4
Hand control protection class	IPX7
Battery	24V 4Ah
