Foldawheel Draco Electric Standing Power Wheelchair with Lie Down, Stand, Sit and Recline Positions

Foldawheel Draco-14-L
$13,450.00
$13,450.00 $189,909.00
You save 92% ($176,459.00)
Seat Size
Controller Position

Draco standing wheelchair is the best electric standing wheelchair that equips with full function capability allows you to move, stand, sit, recline and lie down in safe and comfortable positions. The footrest, armrest and backrest move in a coordinated way simultaneously, so user will not feel the muscle pull when changing from standing-sit-lie down position.

With Draco, you can minimise the risk and effort of transferring user during day time as user can take a nap in lie-down position.

Features:

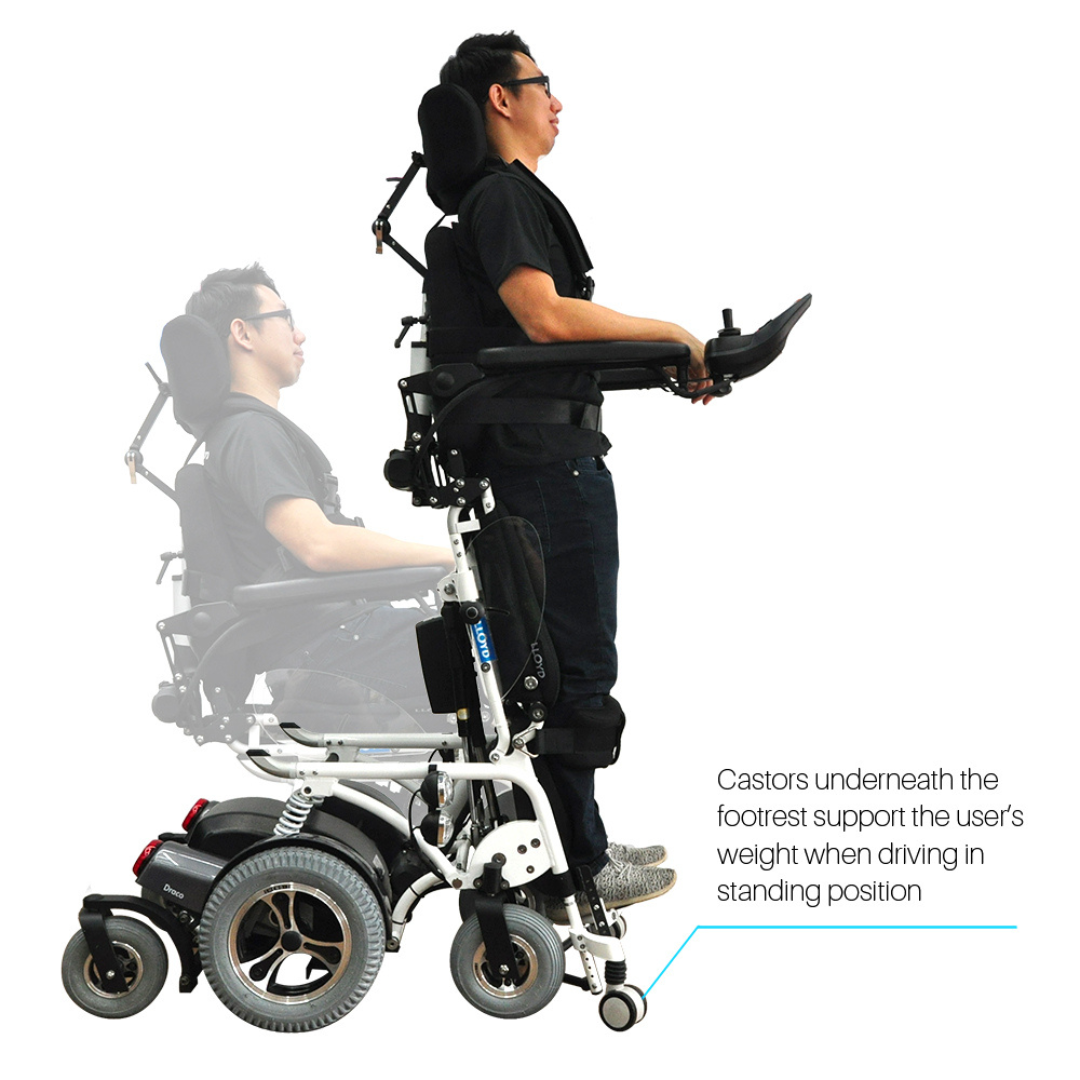

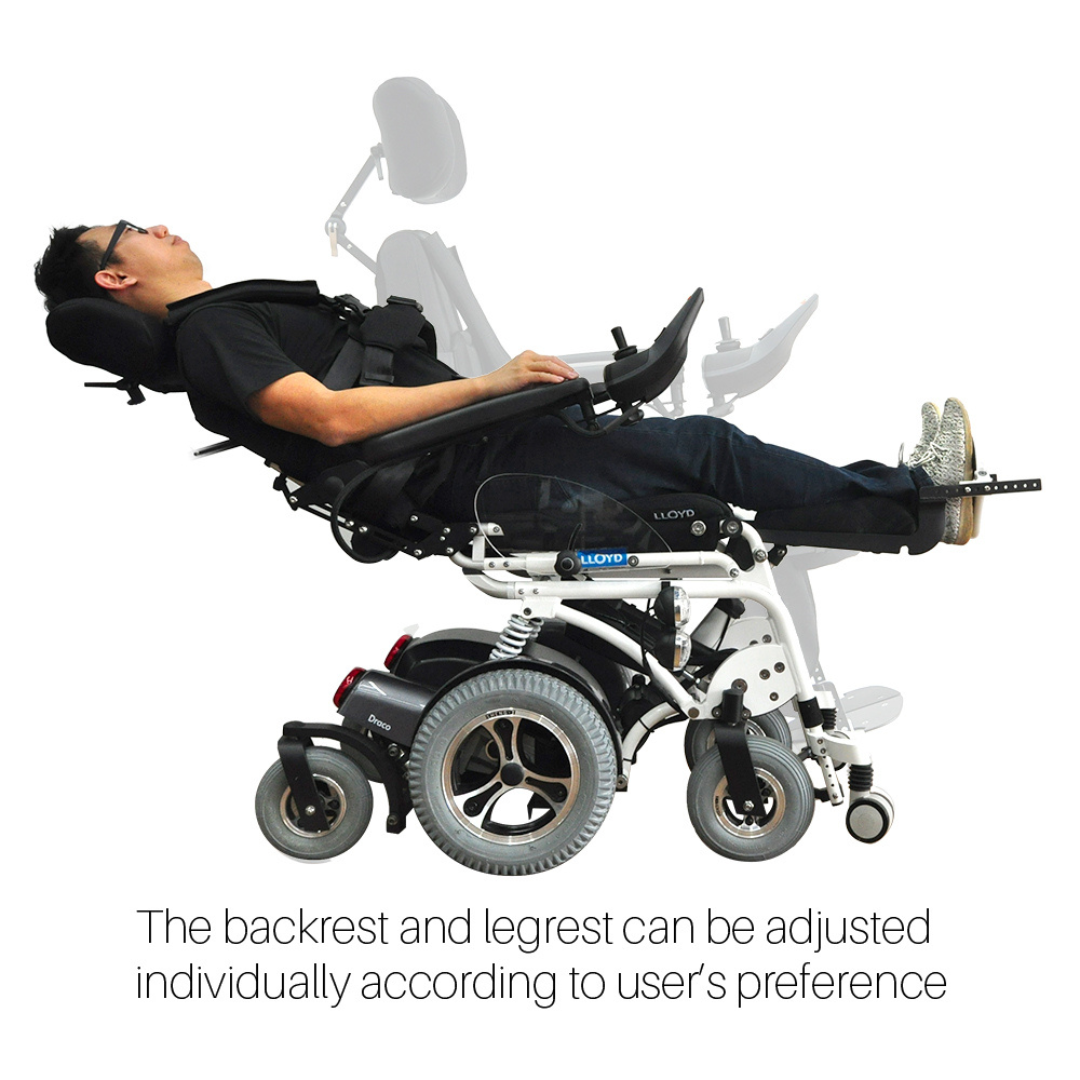

  • Fully powered for lie down, stand, sit and recline positions.
  • Maximum speed up to 8 km/hr (5 miles/hr).
  • Travels up to 30 km (18.5 miles) with a full charge.
  • Equipped with Dynamic LED graphic display Controller (DX2) for precise user control.
  • Adjusts speed automatically during standing position for safety.
  • 8 wheels to provide excellent stability especially during standing and lie down position.
  • Motorized wheels locate in the center to ensure tight turning radius of 66 cm (30″).

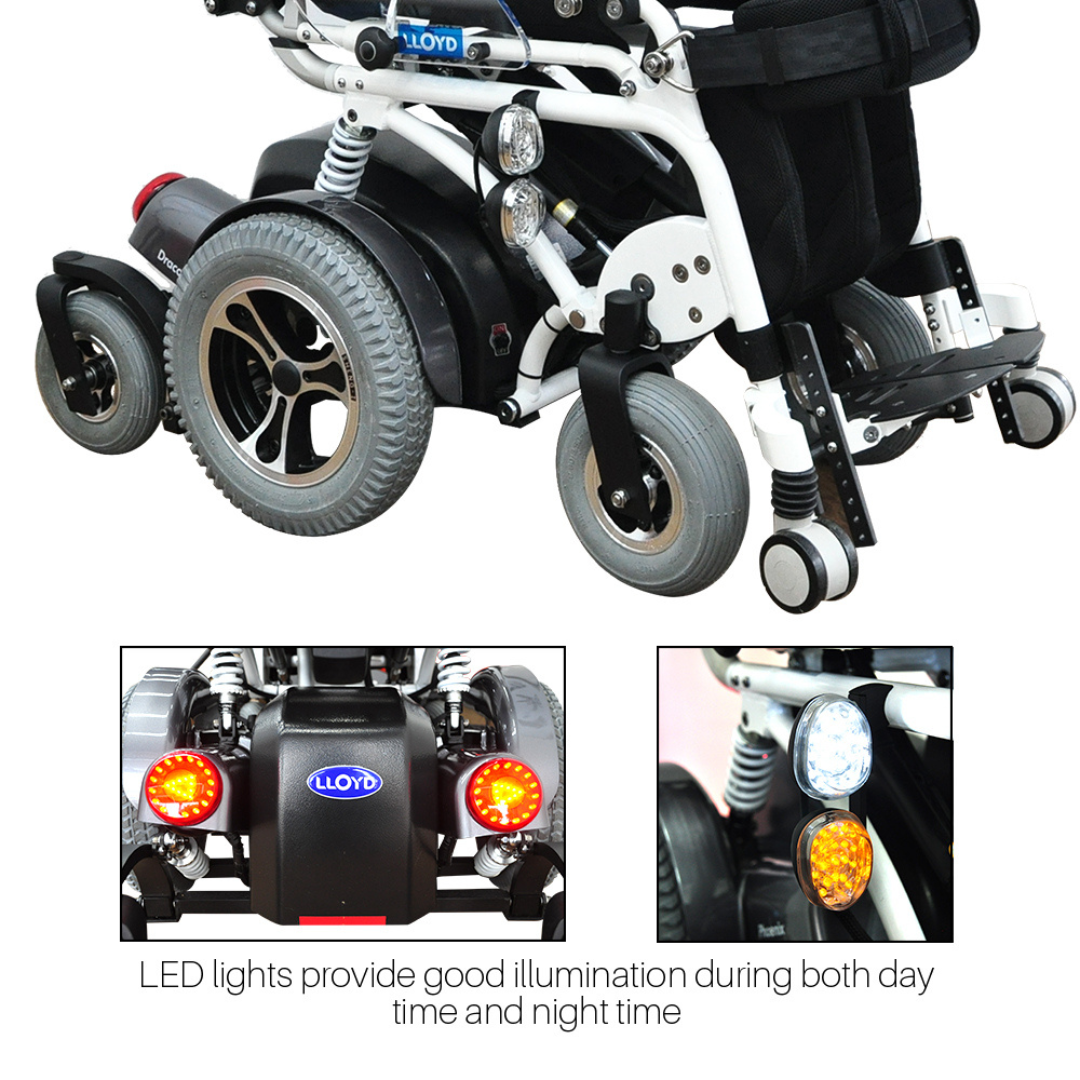

  • Energy saving LED lights for night out.
  • Adjustable headrest for extra comfort.
  • H-shaped safety harness.
  • Spring suspensions for extra comfort over rough terrains.
  • Angle adjustable footrest to allow standing posture in different stages.
  • Adjustable leg length and seat depth to fit users with different leg length.

*The form below is needed in order to build your custom Draco to fit you needs. Once your purchases, please download the form. A product specialist will contact you after yoru purchase to finalize

Click Here To Fill Out The Assessment Form

Click Here To View The Draco Guidelines For Measurement

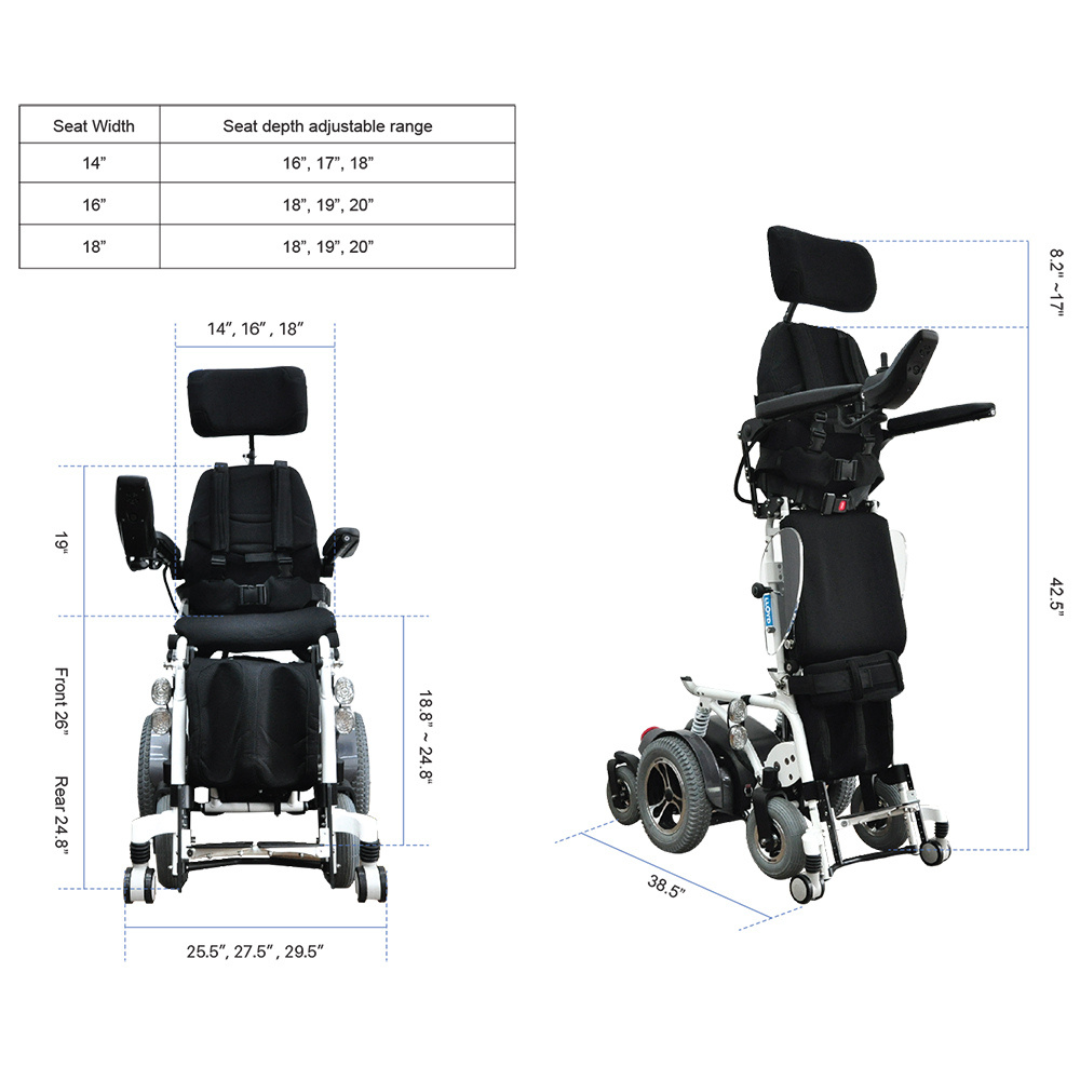

Specifications
Seat Width Choices 40cm (16″) for 16″ seat / 46cm (18″) for 18″ seat
Seat Depth (Adjustable) 40-52 cm (18″- 20″) adjustable
Backrest Height 64 cm (25.2″)
Total Width 64.5cm (25.4″) for 16″ seat / 69.5cm (27.4″) for 18″ seat
Total Length 115cm (45.3)″
Total Height(Front) 143.5cm (56.5″) w/Headrest; 118cm (46.5″) W/o Headrest
Total Weight 147kg (14″) 150kg (16″) 153kg(18″)
Ground clearance 5cm (2″)
Open Size 18″ (L x W x H) 114cm x 75cm x 142cm
Open Size 16″ (L x W x H) 114cm x 70cm x 142cm
Open Size 14″ (L x W x H) 114cm x 65cm x 142cm
Footrest to Seat Length (Adjustable) 44.5 – 52cm (17.5″- 20.5″) adjustable
Motor DC24V, 320W
Battery 12V36Ah X 2 pcs
Packing Dimension (W x L x H) CM 109x66x93cm (14″) 109x68x93cm (16″) 109x72x93cm (18″)
Package weight 155KG (310 lbs)
Front Wheel 9.5″
Mid Wheel 13″
Rear Wheel 3″



Warranty

All our Standing Wheelchairs Series come with 2 years global warranty and support services. We have excellent after sales service record with more than 10,000 happy users worldwide. So you can count on our commitment and be one of our happy customers.
