HealthCraft Advantage Rail with Pivot Locking Technology

HealthCraft AR-T
$343.55
$343.55 $449.00
You save 23% ($105.45)
Type

The Advantage Rail provides vertical and horizontal support for added safety to your living room, bedroom, kitchen or bathroom. Featuring an innovative “Pivot and Lock” technology, it offers centralized support that moves with you, getting you wherever you need to go. It easily installs in your bathroom, bedroom, or wherever else you need support.

Features:

  • A gentle lift unlocks the horiztontal rail to start it moving. Keep the rail up to move freely. Let the rail down to lock
  • Provides 8 locking positions. Height adjustable
  • Safe Effective Support. Push or pull on the rail to assist with sitting standing and moving
  • To help prevent a forward fall the rail will lock if released and reduce Caregiver Strain
  • Maximize the use of available strength while a caregiver supervises.
  • Promotes safe and independent movement
  • Weight Capacity 300 lb For Advantage Rail
  • Weight Capacity 450 lb For Advantage Rail Bariatric
  • All Steel construction protected with Anti-Microbial Powder coat white gloss finish for years of service
  • Latex free grip
  • Made In Canada
  • This is not a free standing safety rail. This must be mounted to the ground. For Installation instructions, click the "Installation" tab

Specifications

  • Rail Diameter - 1.25"/3.175cm
  • Rail Length - 17"/43cm
  • Horizontal Rail Height Range - 3-38"/76-97cm
  • Pole Diameter - 1.5"/3.81cm
  • Pole Height - 54"/137cm
  • Floor Plate Diameter - 7.5"/19cm
Material Alloy steel
Finish / Colour Anti-microbial powder coat white
Weight Capacity 300lbs / 136kg (Standard)
450lbs / 204kg (Bariatric)
Rail Diameter 1.5” / 38.1mm
Support Arm Length 17” / 432mm
Height Adjustable 30-38” / 762-965mm (from floor)
Grip Material Non-slip, PVC closed cell foam (latex free)
Installation Mechanism Secures to floor (hardware dependant on floor type)
Installation Hardware/Fasteners 1/4 x 3" / 6 x 76mm length lag bolts are included
Fasteners Exposed or Concealed Concealed – metal base plate covers mounting screws
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rest Resistant No
Country of Origin Canada
Product Code Advantage Rail (AR-T)
Advantage Rail Bariatric (AR-T-HD)
Shipping Dimensions 19x8x34” / 483x203x864mm
Shipping Weight 22lbs / 9.9kg
Warranty Limited Lifetime Warranty



Download Installation Instructions Here

Step 1: Fasten mast to floor with appropriate fasteners for floor construction.

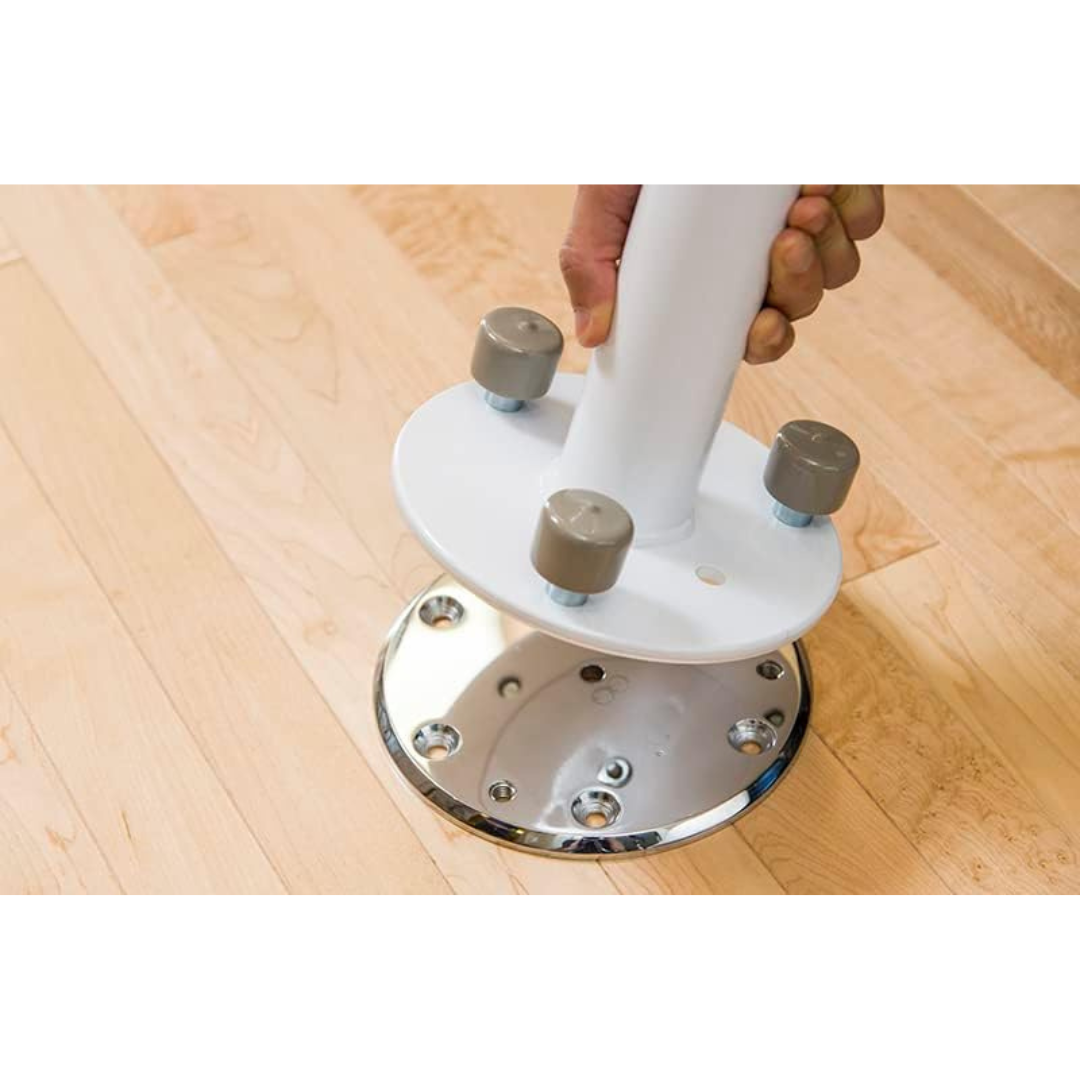

Step 2. Lower plate to cover exposed screws at bottom of mast.

Step 3. Set height of rail and install sleeve with thru pin.

Step 4. Place pivot rail assembly into mast.

Step 5. Install top bushing.
