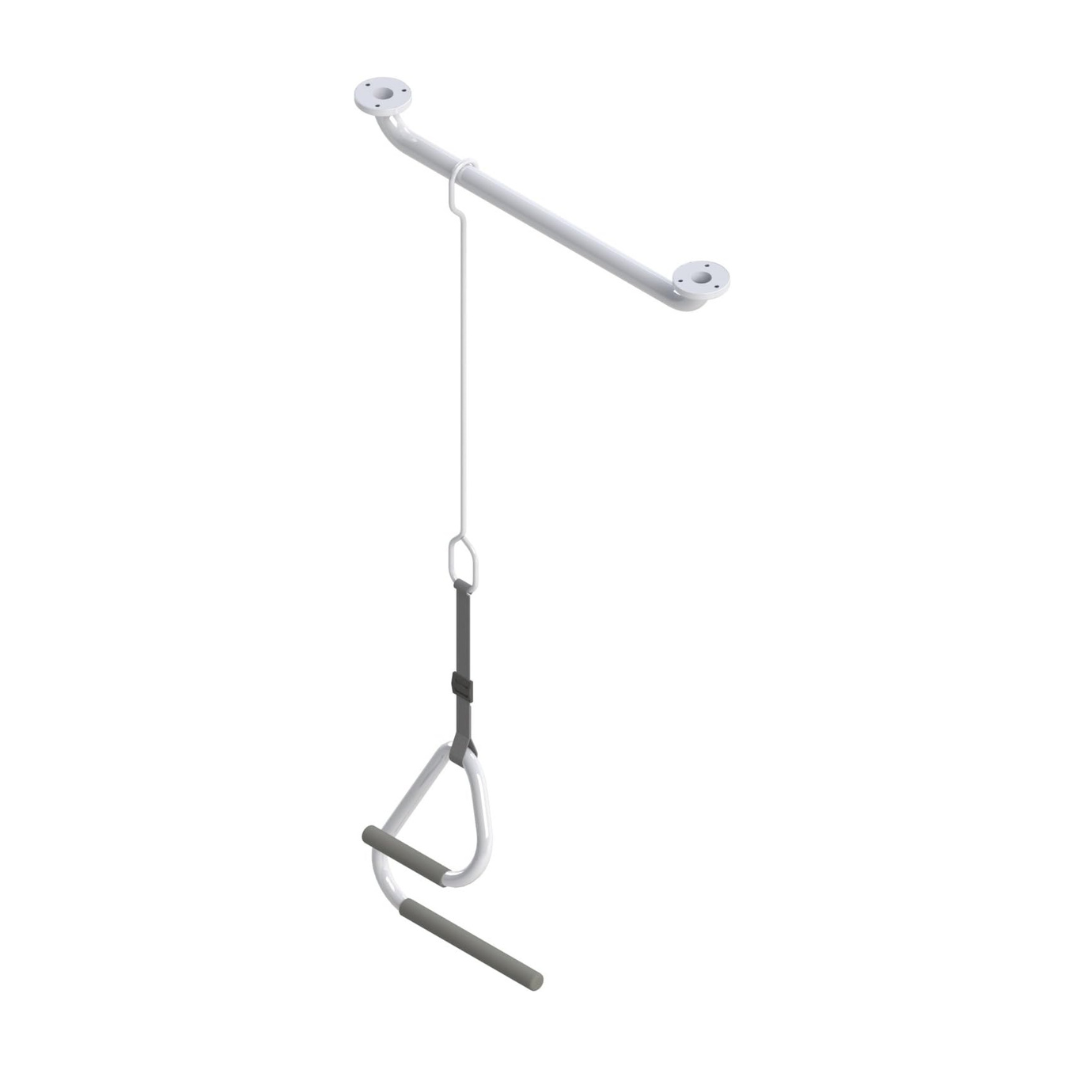

HealthCraft e2 Ceiling Mount Trapeze - Lifting & Standing Aid

HealthCraft STP-CM-24
$184.00 $269.99
You save 31% ($85.99)
Choose Condition
Choose Size

Designed for bed assistance and safety, our E2 Ceiling Mount Trapeze is an innovative solution to the Trapeze Bar. Redesigned with ergonomic ladder rungs, you have two points of leverage to maximize your strength and easily climb from a lying to a seated position in bed. The Trapeze bar acts in place of a bed safety rail and can be securely mounted to your ceiling. When not in use, you can remove your Trapeze bar and store it out of the way.


  • Color: White
  • Size: 32"-58"H x 24"W x 1.25"D
  • Sturdy Steel Design

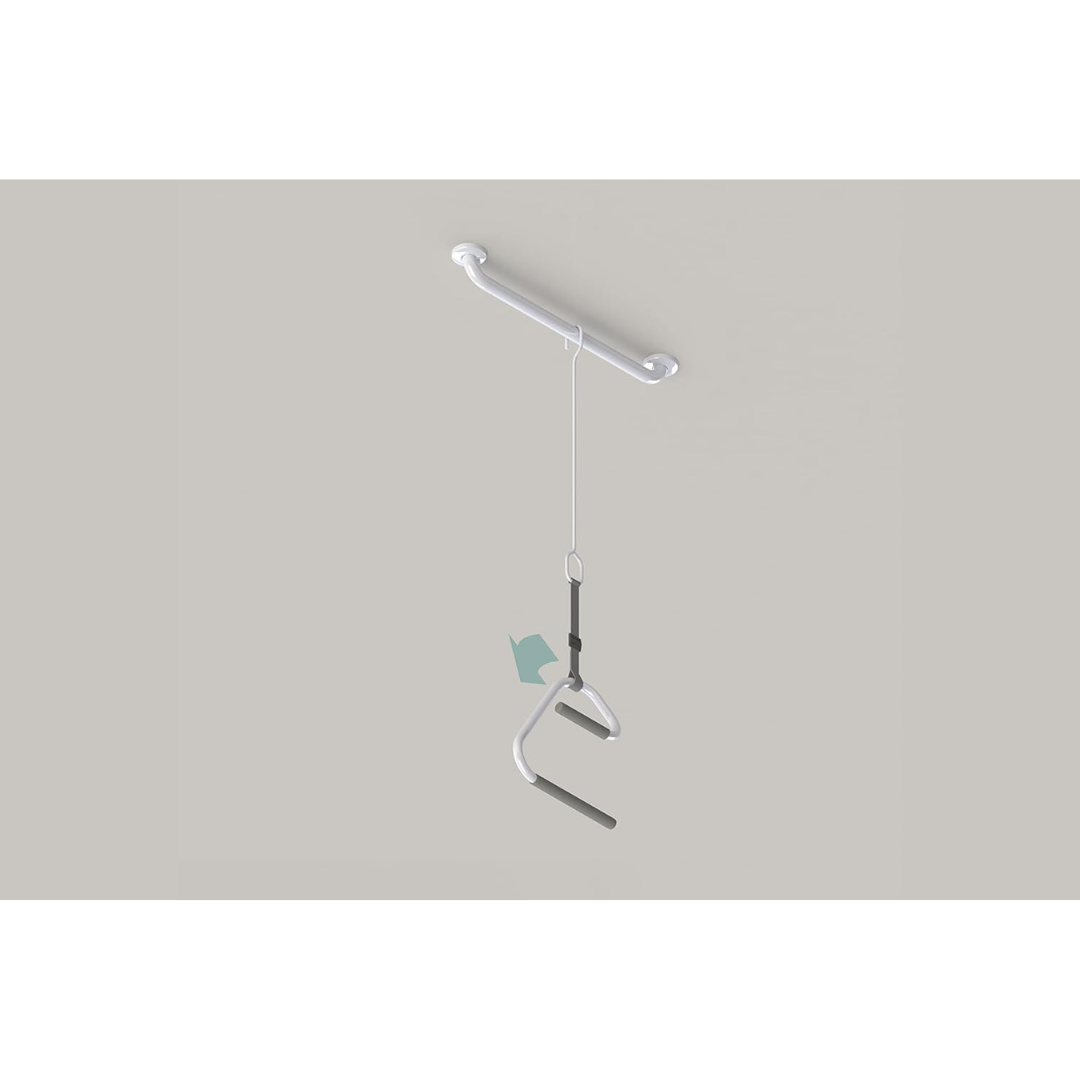

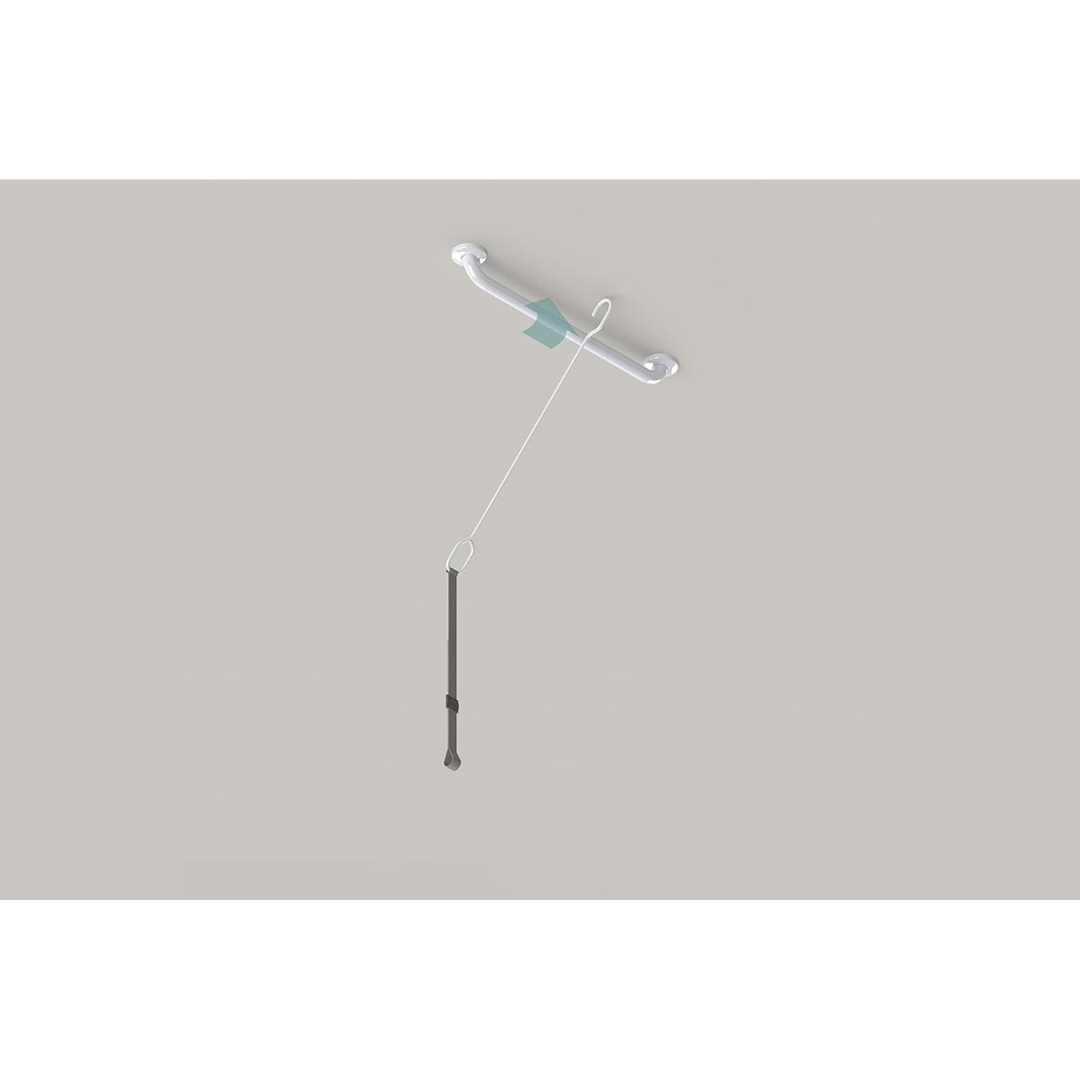

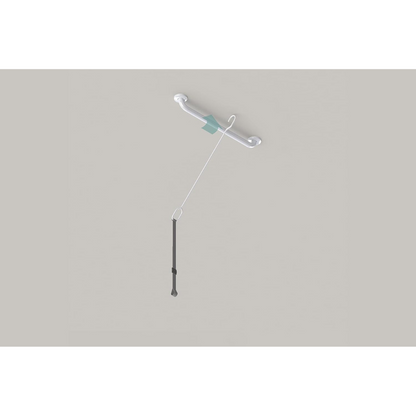

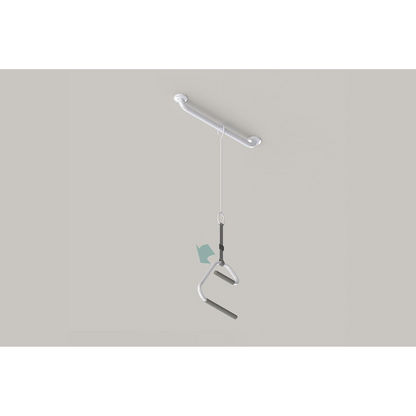

  • Bar Can be Swept Aside

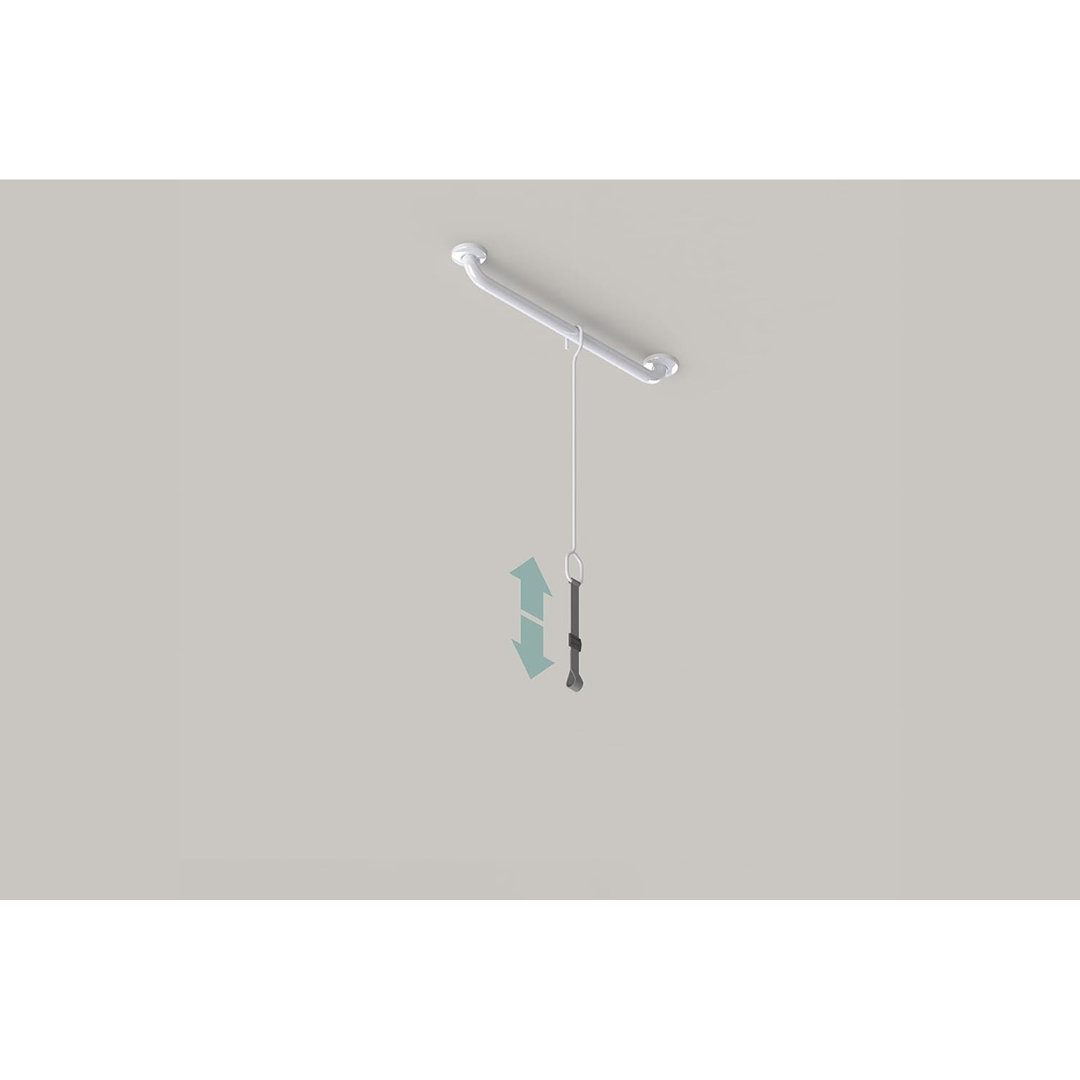

  • Adjustable Height
Material Alloy steel
Finish / Colour Anti-microbial powder coat white
Weight Capacity 300lbs / 136kgs (No more than 150lbs / 68kgs should be exerted on the trapeze system)
Rail Diameter SuperTrapeze Handle: 1.0” / 25.4mm
Ceiling Grab Bar 24”/610mm or 32”/813mm
Hook Length 27”/686mm
Strap Range 3-29” / 76.2-737mm
Grip Material Non-slip, PVC closed cell foam (latex free)

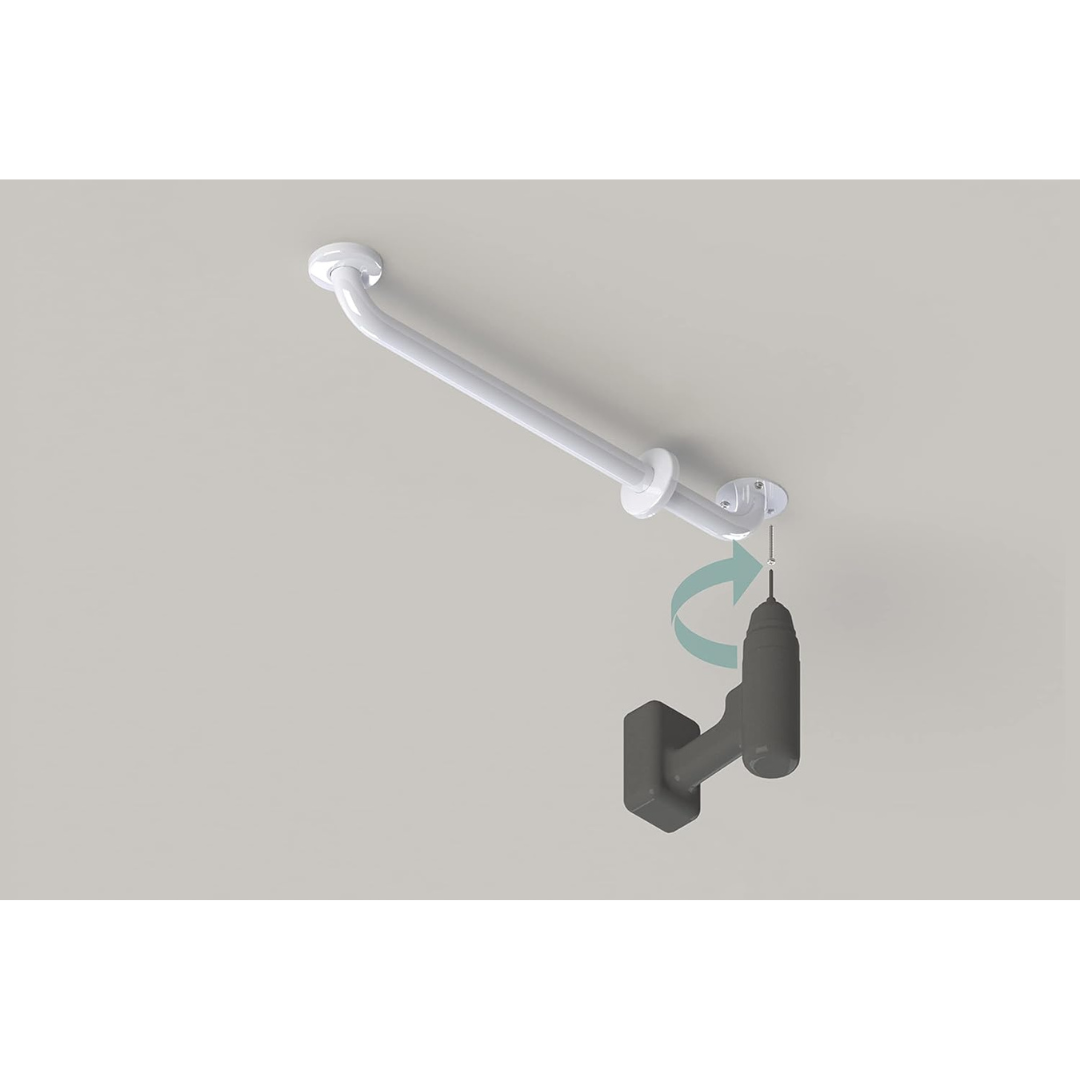

Installation Mechanism Must secure to ceiling joists
Installation Hardware/Fasteners #10 x 2"/ 50.8mm length (x6), S/S wood screws (provided)
Fasteners Exposed or Concealed Yes - metal flanges cover mounting screws
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rest Resistant No
Country of Origin Canada
Product Code Ceiling Mount Trapeze, 24" (STP-CM-24)
Ceiling Mount Trapeze, 32" (STP-CM-32)
Shipping Dimensions 38x20x4"/ 965x508x102mm
Shipping Weight 8lbs / 3.6kgs
Warranty Limited Lifetime Warranty
