HealthCraft PT Rail - Bathroom Wall Mounting Heavy Duty Hinged Grab Bars

HealthCraft PT-WR28L-PCW
$269.00 $349.00
You save 22% ($80.00)
Left or Ride Side

HealthCrafts' PT Rail Bathroom Wall Mounting Heavy Duty Hinged Grab Bars are the perfect toilet safety rail to provide support and comfort during transitional movements. Unlike other bathroom safety rails, the PT Rail is designed with an innovative offset rail to avoid wrist strain when you’re sitting down or pulling yourself up from a seated position. The PT Rail is also easily stored; simply lift the rail until it is flush against your bathroom walls. The toilet safety rail also features strong compression hinges to keep the rail from falling, giving you support and security even when the rail is halfway up.

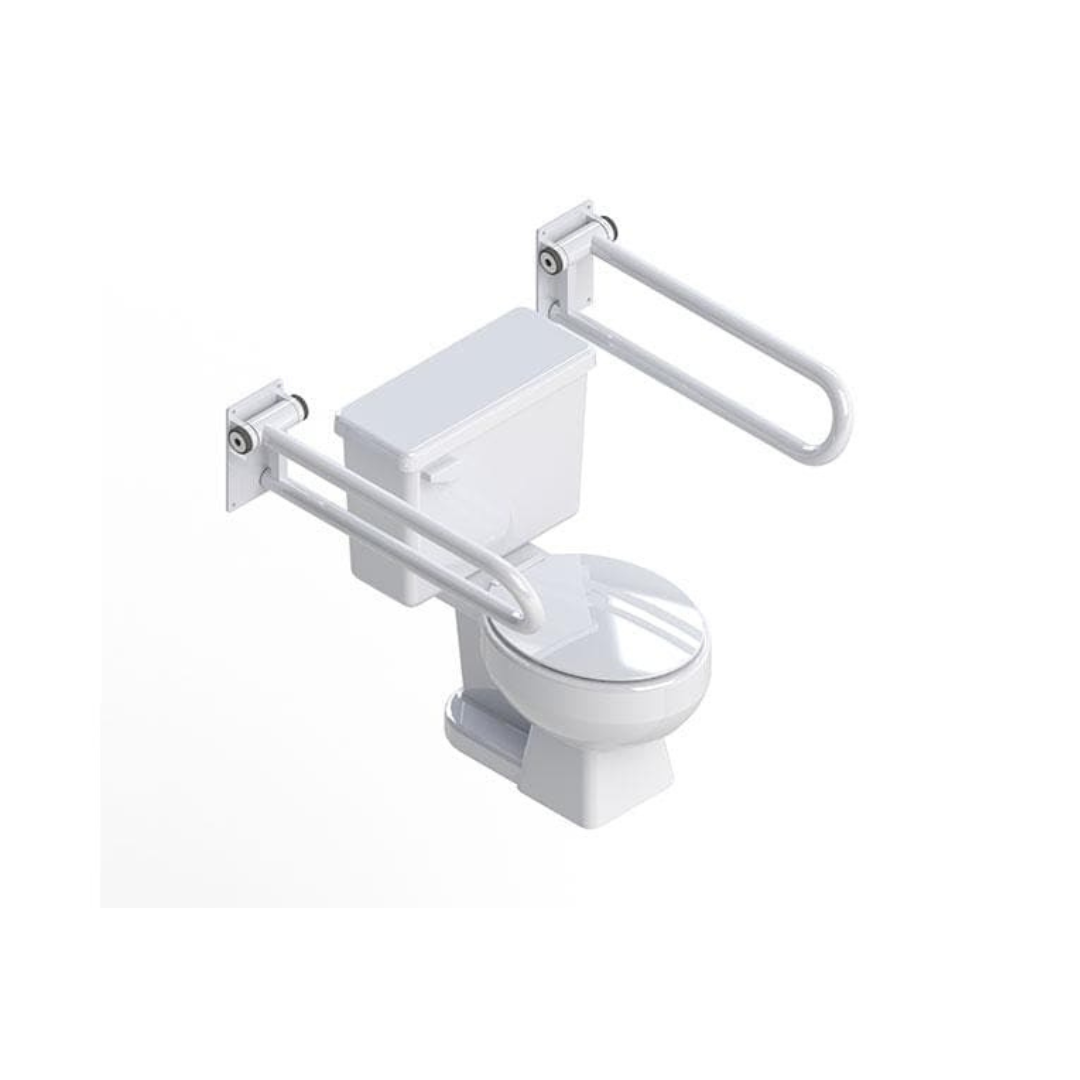

  • P.T. Rail™ provides rigid support where it is needed - on one or both sides of the toilet.
  • Unlike vertically aligned dual rail systems, our unique offset rail design prevents wrist strain when using lower rail.
  • All HealthCraft grab bars meet or exceed the guidelines of the Americans with Disabilities Act (ADA).
  • Mounting hardware is NOT included due to the variety of possible installation structures.
  • For directions to install the rail into drywall, please contact us after ordering.
  • Sold as a single unit


Material Alloy steel or Stainless steel (-SS)

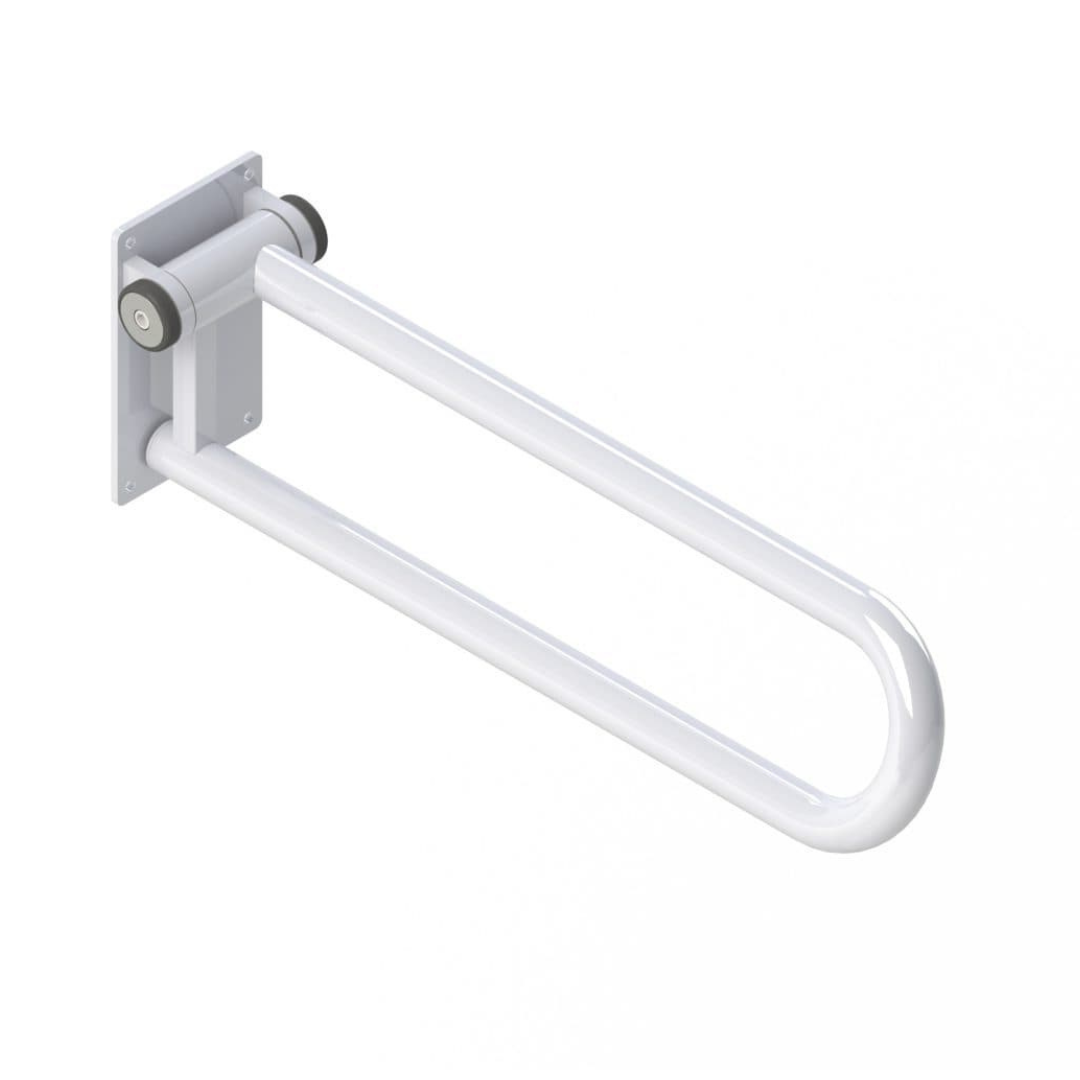

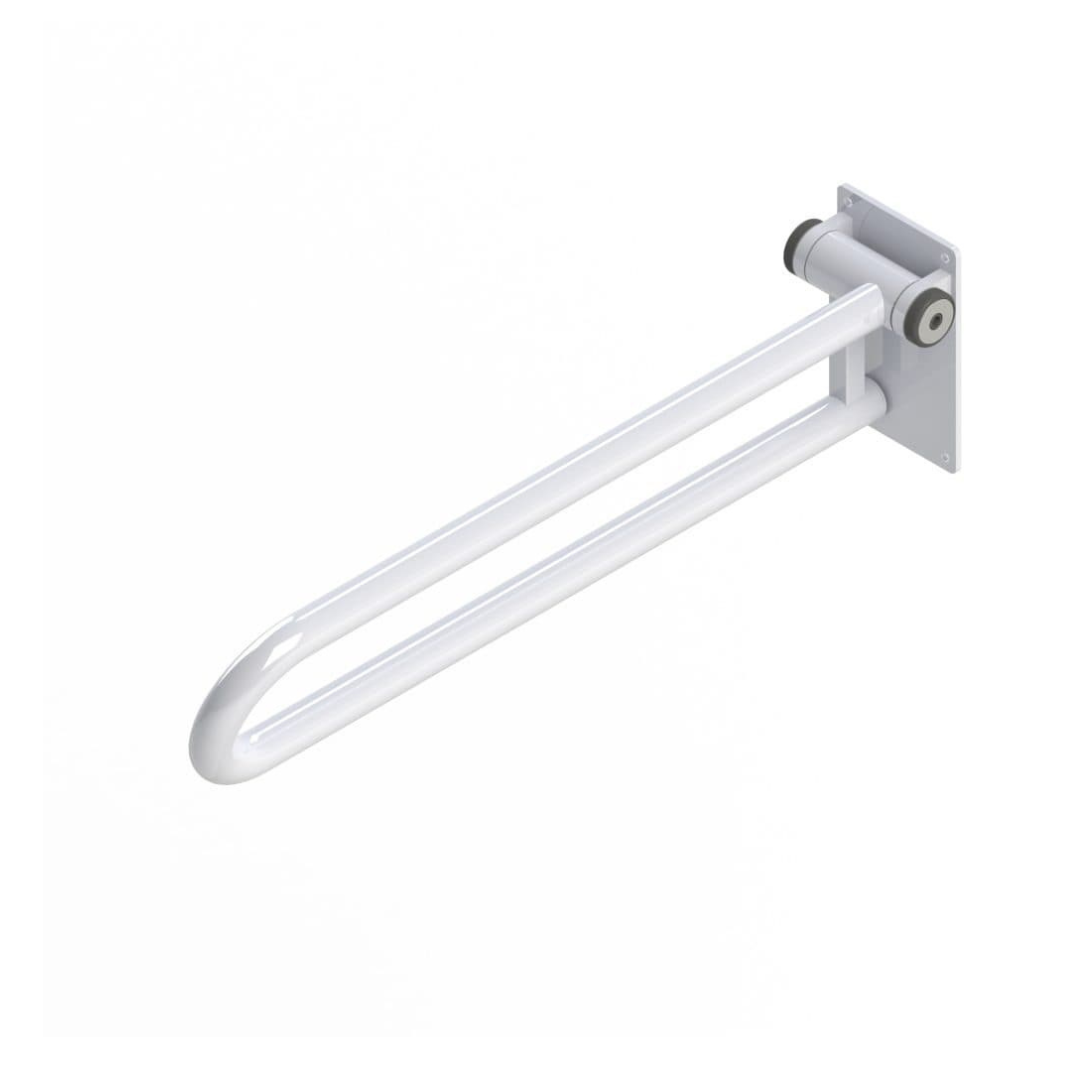

Finish / Colour Anti-microbial powder coat white (-PCW)

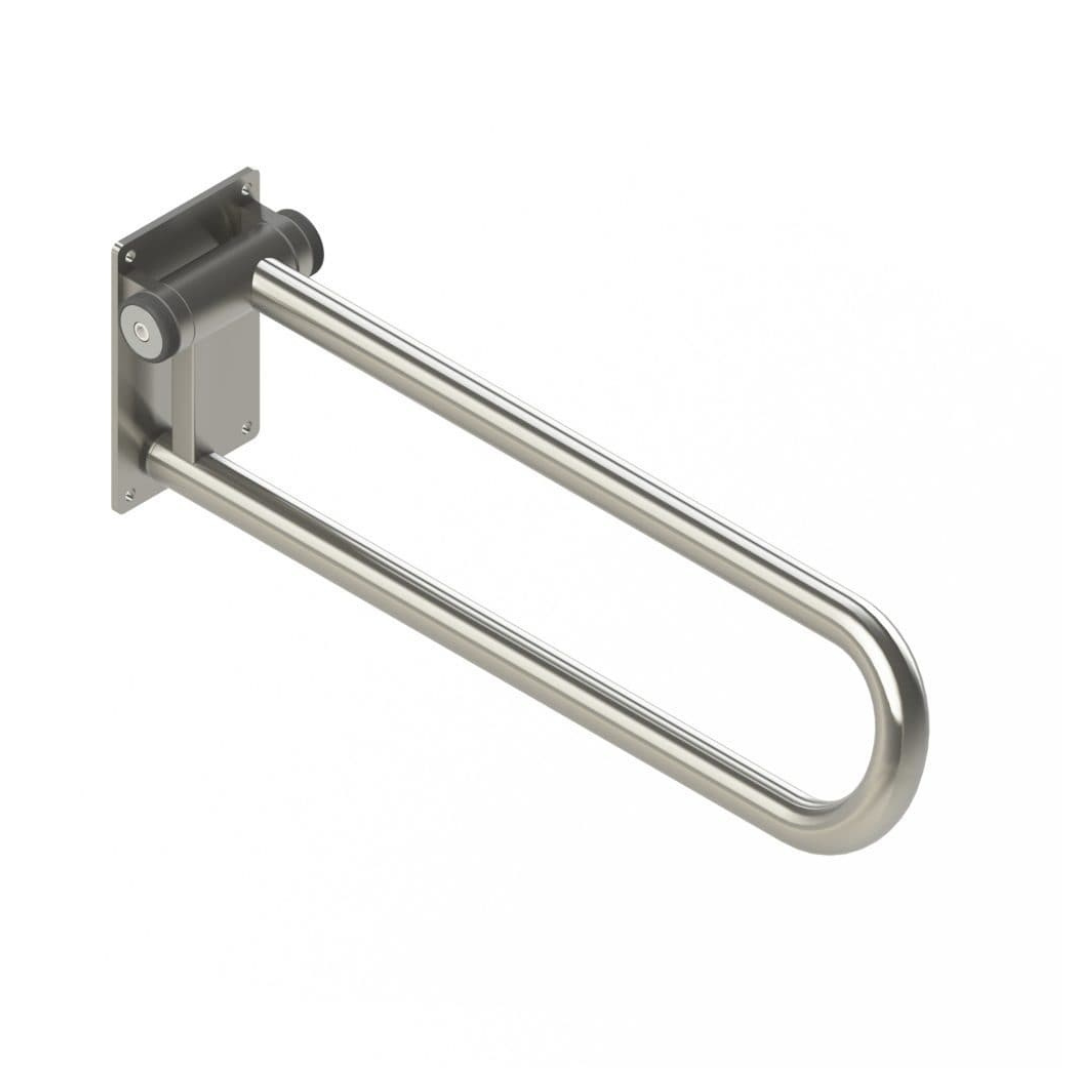

Brushed Stainless Steel (-SS)
Weight Capacity 400lbs / 181kgs
Rail Diameter 1.50" / 38.1mm (ADA Compliant)
Rail Length 28”/711mm and 32”/813mm
Wall Plate 5.5x9” / 140x229mm
Wall Plate Mounting Holes .375” / 9.525mm
Installation Hardware/Fasteners Fasteners must be suitable for substrate. We include lag bolts (1/4" x 3" length) for wood constructions.
Fasteners Exposed or Concealed Exposed
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rust Resistant Yes (Only on Stainless Steel)
Country of Origin Canada
Product Code for P.T.Rail (PCW) PT-WR28L-PCW
Product Code for P.T.Rail (SS) PT-WR28L-SS
Shipping Dimensions 9x6x33” / 229x152x383mm
Shipping Weight 16lbs / 7.25kgs
Warranty Limited Lifetime Warranty
