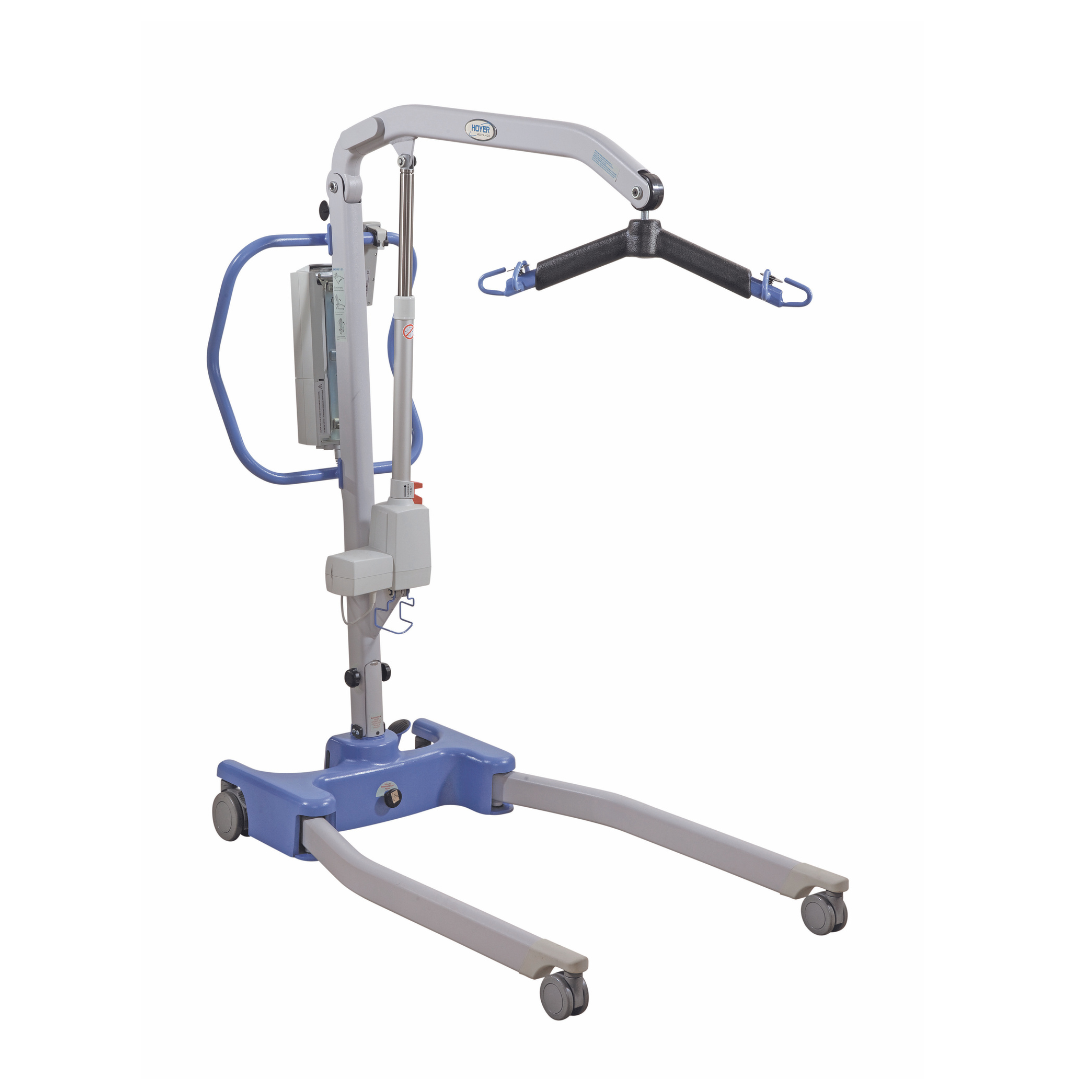

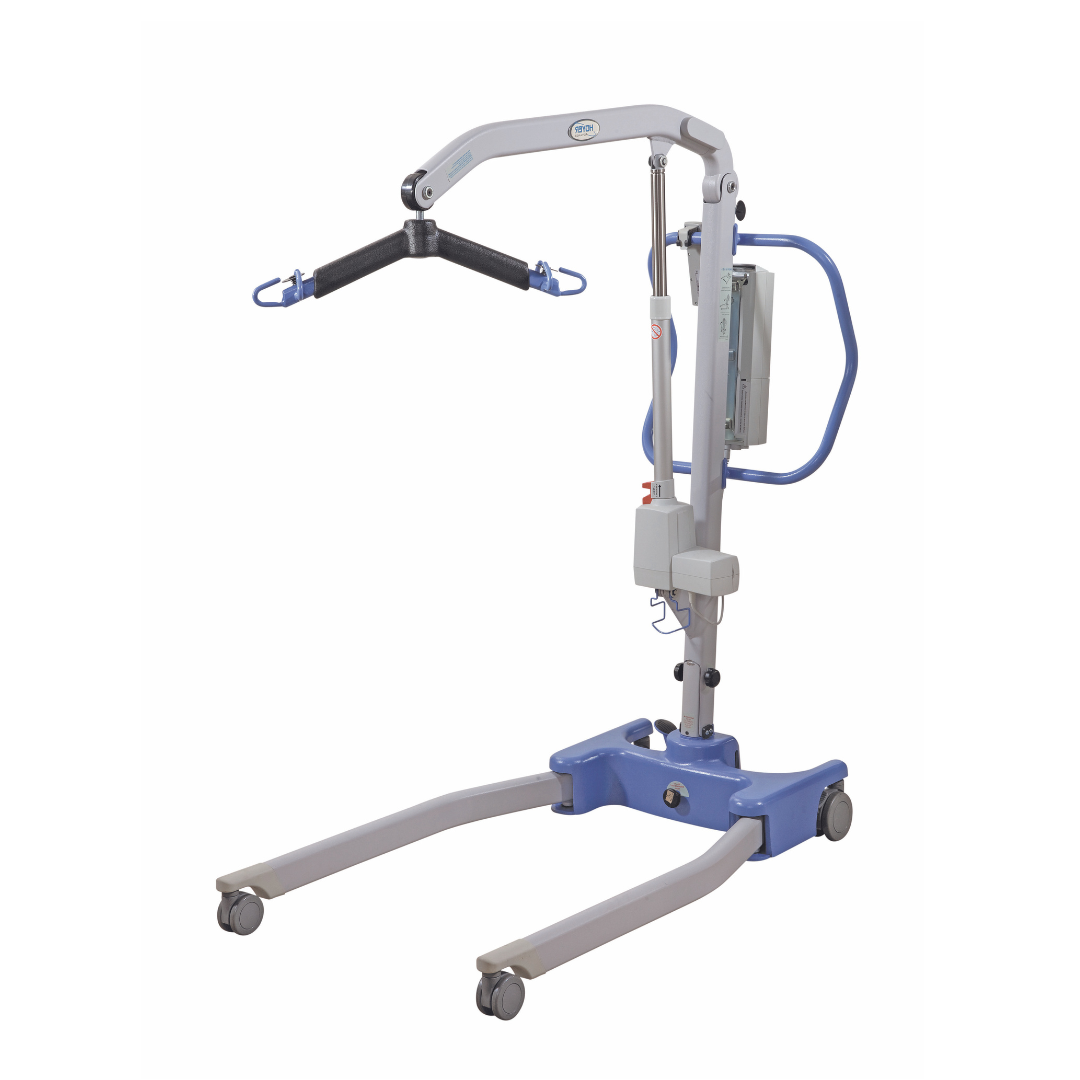

Hoyer Advance-E Portable Electric Patient Lift with LCD Display Screen

The Hoyer Advance is compact, yet able to perform an outstanding range of transfers. Whether from the floor or onto a healthcare bed, the Advance copes with ease. The Advance's unique tapered leg design allows the lift to get even closer to the widest of obstacles. This is especially useful when encountering large chairs, bulky commodes, and wheelchairs. The tapered design also ensures that the resident feels safe and secure during the transfer. Features The unique Smart Monitor control box is programmable and will accurately record and display vital lift utilization and service data. An easy to read LCD display provides the valuable information at the touch of a button. No-tools folding design allows for compact storage. The push footpad has been designed to reduce the force needed to initiate movement when maneuvering the stationary lift in a forward direction

Features:

• HIGHLY COMPACT & PORTABLE: No tools are required to fold this Hoyer lift to transport or to store. With an oversize handle and specially designed wheels, it is easy to push and pull.
• MULTIPLE TRANSFER OPTIONS: Transfer and lift patients with ease from the floor to bed, from bed to chair, commodes, shower seats and lift chairs. It can also transfer from cars and vehicles (may require a different sling, not included)
• EASY TO USE: Uniquely styled swan legs enable you to get the lift closer to the patient for increased comfort and ease. An adjuster pedal lets you control the width of legs to help access around wheelchairs and furniture.
• This electric powered lift has a built in battery and comes with a charger. With a light aluminum body it weighs only 69 pounds and has a weight capacity of 340 lbs. Designed to be compatible with numerous slings.

Specifications

• Safe Working Load: 341 lbs.
• Maximum Overall Length: 51.2"
• Minimum Overall Length: 49.2"
• Maximum Overall Height: 73.2"
• Minimum Overall Height: 53.5"
• Folded Dimensions Height: 17.7"
• Depth: 46.5" Width: 21.7
• Spreader Bar Max. Height: 66.5"
• Spreader Bar Min. Height (usable): 15.4"
• Height at Maximum Reach: 46.1"
• Reach at Maximum Height: 25.6"
• Reach at Minimum Height: 13.8"
• Maximum Reach: 32.9"
• Turning Radius: 55.9"
• Legs Open - Internal Width: 39.4"
• Legs Closed - External Width 26.4"
• Overall Height of Legs: 4.5"
• Ground Clearance: 1.2"
• Front Twin Casters: 3.0"
• Rear Braked Casters: 4.0"
• Weight Total: 69.7 lbs
• Electrical Shock Protection Charger - Class II Lift - Internal power source Degree of shock protection Charger - Type B Lift - Type B Intended operating environment: >+5 degreeC Outside this environment functionality and safety may be compromised.

Electrical Specifications Battery:

• 24vDC rechargeable sealed lead acid type
• Battery capacity 3.2A Amp per hours

• Charger rated input: 100-240V AC VDC 50/60Hz
• Charger rated output: 29.5 VDC. Max. 19W
• Limited Lifetime Warranty on Frame
• 2 Year Warranty on Parts
