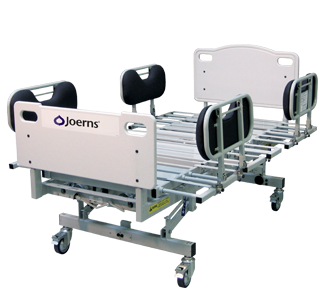

Joerns Healthcare RC Multi-Functional Bariatric Bed Package

The Joerns Healthcare RC 750 is prepared to handle a patient who may require a bed that can support more weight. The RC 750 is a 750 lb or 1,000 lb capacity bed frame with three function electric control. The simple to use pull pin system allows caregivers to easily expand the bed frame’s width from 39" to 54" to accommodate a variety of body contours and emergency transport through 40" door frames. The RC 750’s economical price makes it an excellent bariatric bed solution for the alternate care market.

As the brawnier version of our RC 750, the RC 1000 is an economical 1000 lb capacity bed frame with five function electric control. The simple to use pull pin system allows caregivers to easily expand the bed frame’s width from 39″ to 54″ to accommodate various patient girth and emergency transport through 40″ door frames. Its split frame design allows for easy delivery into tight areas. The RC 1000’s reasonable price makes it an excellent bariatric bed solution for the alternate care market.

RC 750 Features:

• Split frame design for easy delivery and storage
• Expandable bed deck permits transport through doorways as narrow as 40"
• Accommodates mattresses up to 54" wide
• 3 position, wing type, padded side rails
• 3 functions including hi-low, head (Fowler) and knee gatch
• IV pole and Foley bag holder
• 750 lb weight capacity comes with 3 function pendant
• Optional trapeze
• Comes with Head Rails and Foot Rails

RC 1000 Features:

• Split frame design for easy delivery and storage
• 5 functions including Trendelenburg and cardiac chair
• Integrated scale for one-button weighing in any position
• Expandable bed deck permits transport through doorways as narrow as 40″
• Accommodates mattresses up to 54″ wide
• 3 position, wing type, padded side rails
• IV pole and Foley bag holder
• 1000 lb weight capacity
• Optional trapeze

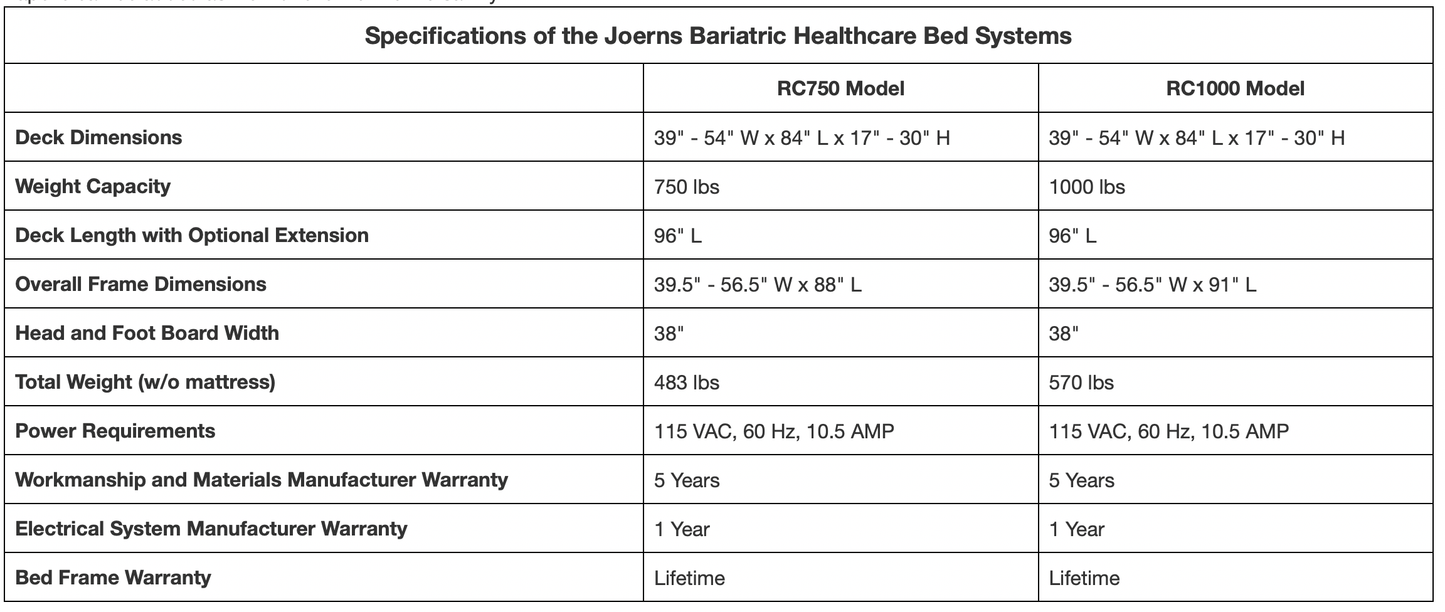

RC 750 Specifications:

• Accommodates mattresses 37", 39", 42", 48" or 54" W
• Bed deck length: 84" (96" with optional extender)
• Overall frame size: 39.5" to 56.5" W x 88" L
• Deck height: 17" to 30"
• Head/Footboard width: 38"
• Total weight: 483 lb
• Power requirements: 115 VAC 60 Hz 10.5 AMP
• Warranty: 5 years ‐ workmanship and materials, 1 year ‐ electrical system
• Click Here to Download The User Manual

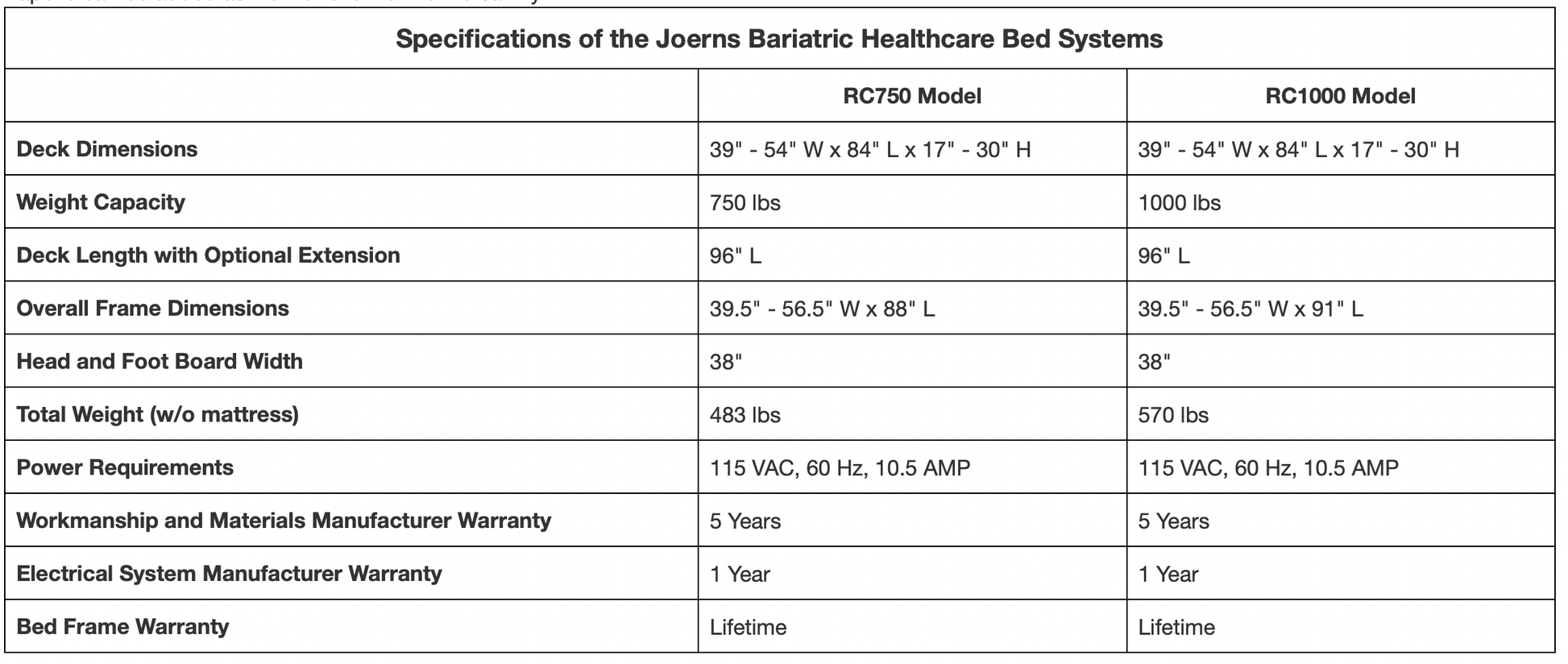

RC 1000 Specifications:

• Accommodates mattress 37", 39", 42", 48" or 54" W
• Bed deck length: 84" (96" with optional extender)
• Overall frame size: 39.5" to 56.5" W x 91" L
• Bed deck height range: 17" to 30"
• Head/Footboard width: 38"
• Total weight: 570 lb
• Power requirements: 115 VAC 60 Hz 10.5 AMP
• Warranty: 5 years ‐ workmanship & materials, 1 year ‐ electrical system
• Click Here To Download The User Manual
