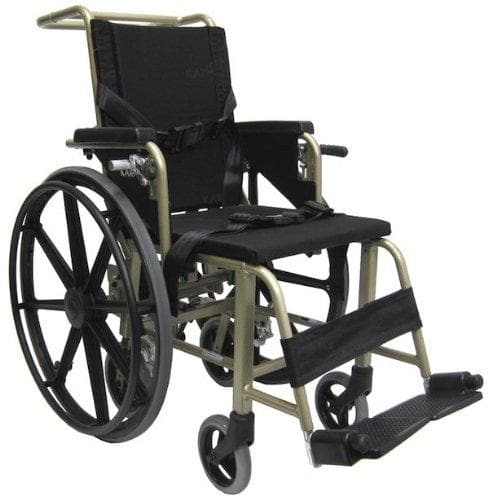

Karman Healthcare Convertible Airplane Aisle Chair - Foot Operated 24" Quick Release Rear Wheels

This airplane aisle chair is the first of its kind. The optional convertible model easily converts from an airplane wheelchair to a manual wheelchair, allowing the user to propel him/herself while not on the airplane.

The aircraft-grade aluminum and solid welded frame make this chair sturdy and safe, and thanks to the innovative frame design, it's able to maneuver easily through narrow aisles. The swing-back armrests aid in decreasing the overall width when necessary, and the 11″, extra-long reach push handles promise ease of use for the caregiver.

Swivel and height adjustable footplates ensure comfort for many different users, and the snap-in safety belt and easy-access brake locks provide ease of mind. On the convertible model the 24″ large rear wheels are flat-free and feature a foot-operated quick release for easy conversion to the aisle transport chair.

Product Features:

• 61 T6 Aircraft-grade Aluminum Solid/Welded Frame
• Converts Easily From a Aisle Wheelchair to an Aisle Transport Chair
• Easily Maneuvers Narrow Aisle Through an Innovative Frame Design
• Swing-back Armrest Decrease Overall Width
• 11” Extra Long Reach Push Handles
• Swivel & Height Adjustable Footplates
• 24” Flat Free Rear Wheels & 7” Rear Transport Mode Rear Wheels
• 29 lbs Total weight w/Aisle & Transport Mode
• Snap-in Safety Belt
• Easy-access Brake Locks for Both Large & Small Wheels
• Foot Operated Quick Release Rear Wheels
• 6” Front Casters
• 42 lbs Total weight w/Wheelchair Mode
• Weight capacity: 300 lbs.
• 24” Flat Free Rear Wheels & 7” Rear Transport Mode Rear Wheels
• 29 lbs Total weight w/Aisle & Transport Mode

Specifications

Specifications:

• HCPCS Code : E1038
• Seat Width : 14 inch.
• Seat Depth : 16 inch.
• Armrest Height : 25 inch.
• Seat Height : 17 inch.
• Back Height : 17 inch.
• Overall Height : 35 inch.
• Overall Open Width : 15 inch., 24 in.
• Folded Width : N/A
• Weight Without Riggings : 29 lb., 42 lb.
• Weight Cap : 300 lb.

Warranty

Please refer to the warranty card attached to each product for more information on policies and procedures. The warranty is extended only to the original purchase and delivery of the product.  Warranty is not transferable.  Parts or materials which are subjected to normal wear and tear which must be replaced / repaired are the owner’s responsibility.  Damaged caused by user negligence, accidental damages intentional or not are not covered under Factory warranty.  Arm pad and upholsteries are not covered by warranty.   It is recommended that any claims under warranty be returned to the authorized dealer for service through whom it was purchased from.

If Warranty Registration Card is not on file for the claim product, then a copy of the invoice with the date of purchase must be provided.  The warranty period for the consumer commences on the purchase date of the seller.  The warranty period for the seller, if the products are not to be sold to a consumer, commences on the invoice date from Karman.  The warranty is void on wheelchairs that have had the serial # tag removed and/or altered.

Furthermore, products which have been subjected to negligence, abuse, improper storage, or handling, improper operation, any modifications, misuse are not covered by the warranty.

All warranty repairs or replacements must have prior authorization from Karman with freight prepaid. Karman reserves the right to issue call tags for any warranty repairs, which is situation dependent. Should a field action or recall occur. Karman will identify the affected units and contact your Karman dealer with instructions for resolution. Warranty registration are still advised.  To ensure records are quickly retrieved with corresponding customer and serial number for your medical equipment. Thank you for filling out this form.  Please see RMA policy for further details, rules, and restrictions.
