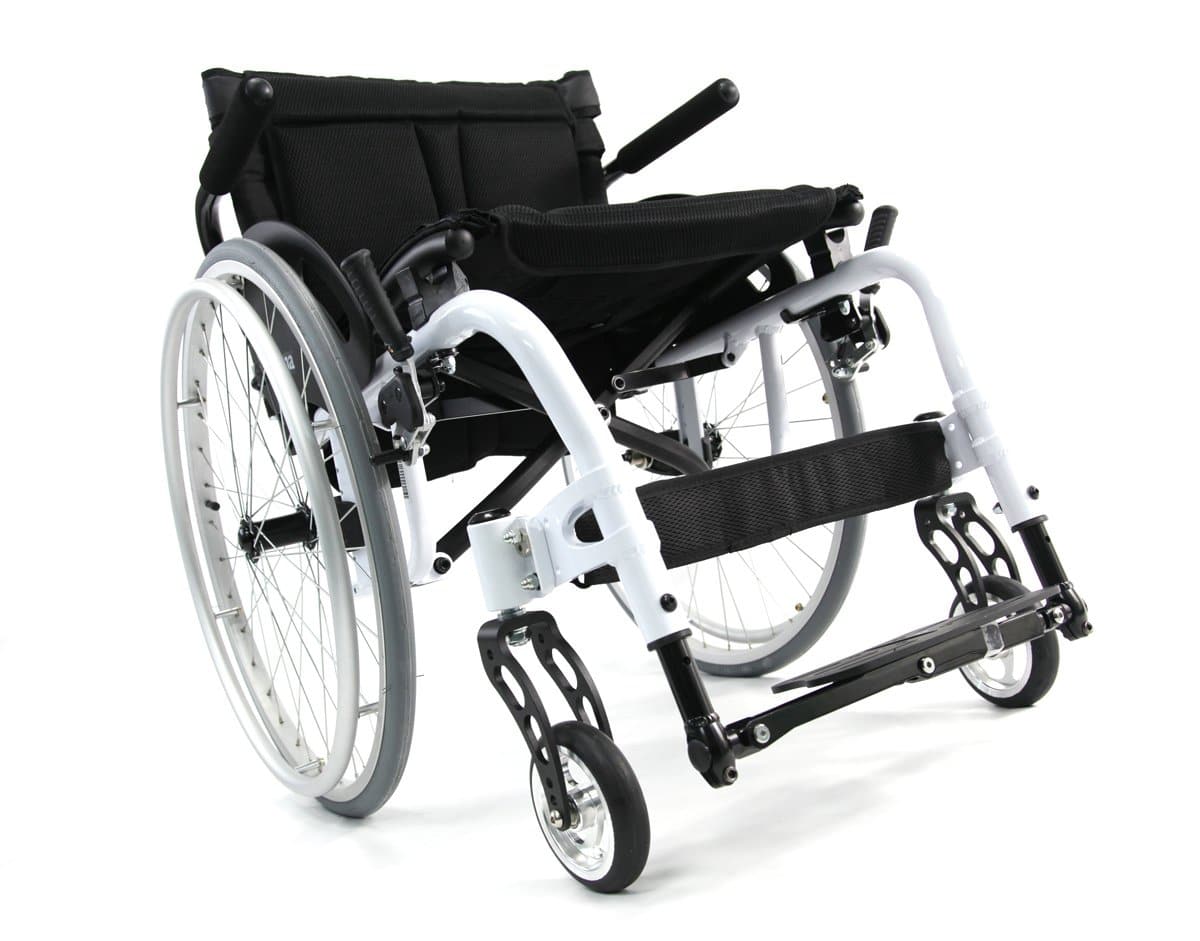

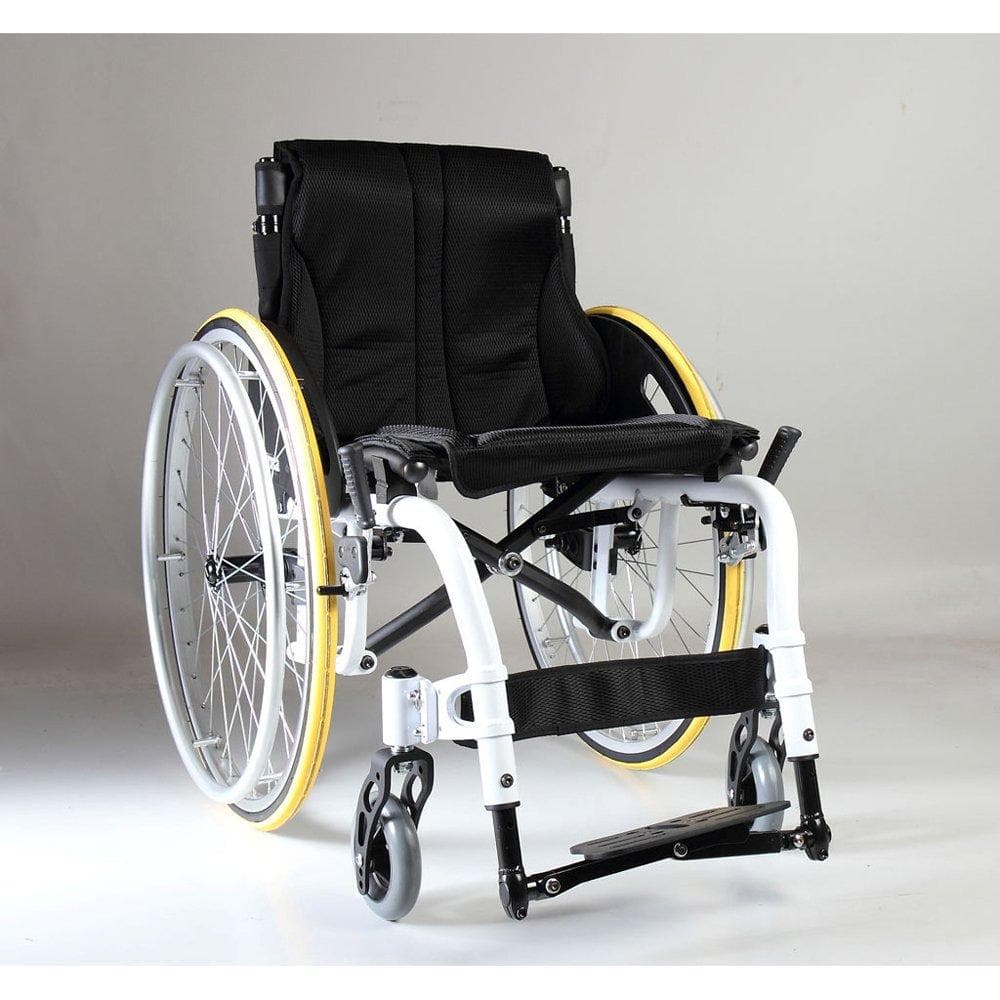

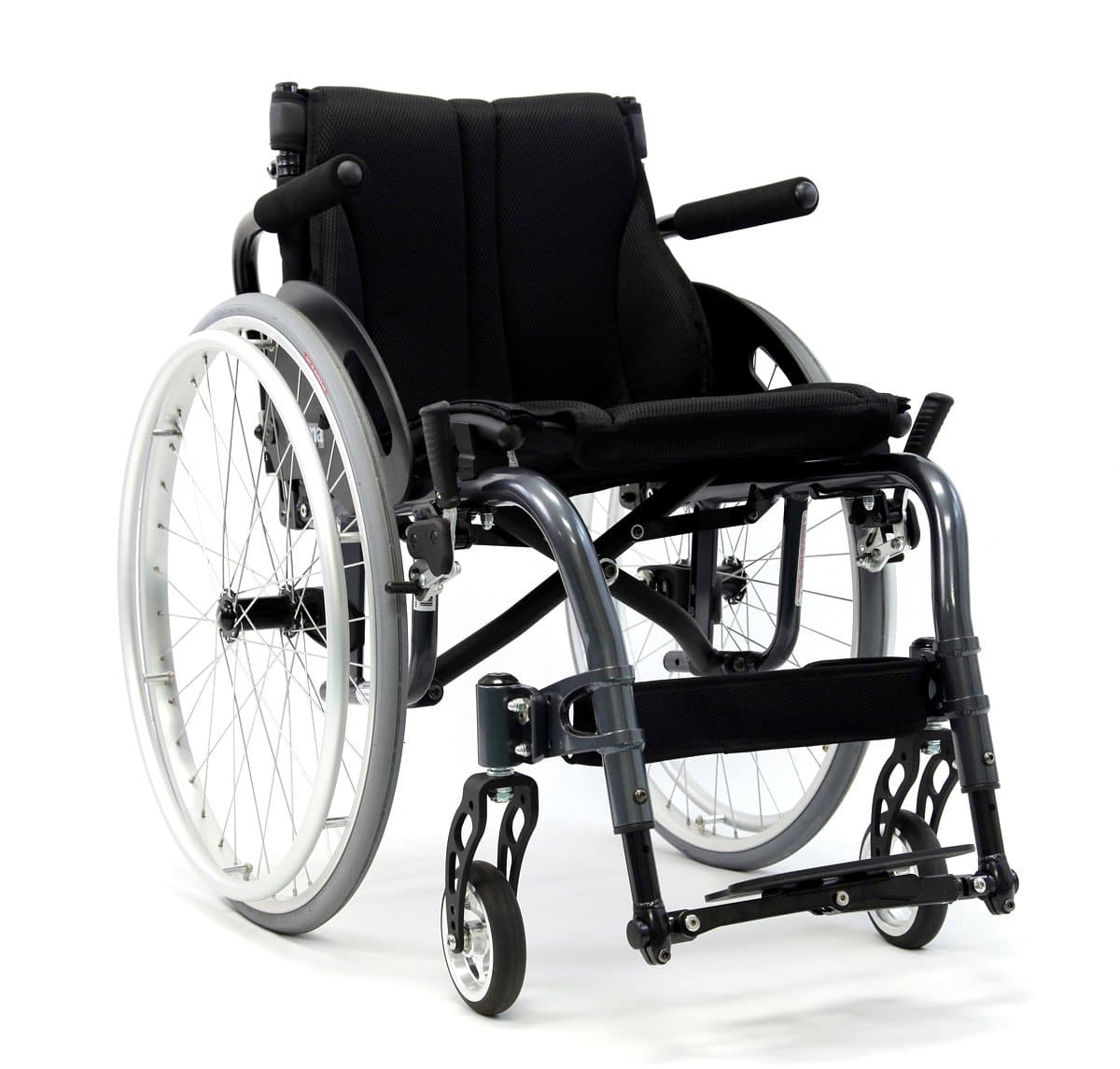

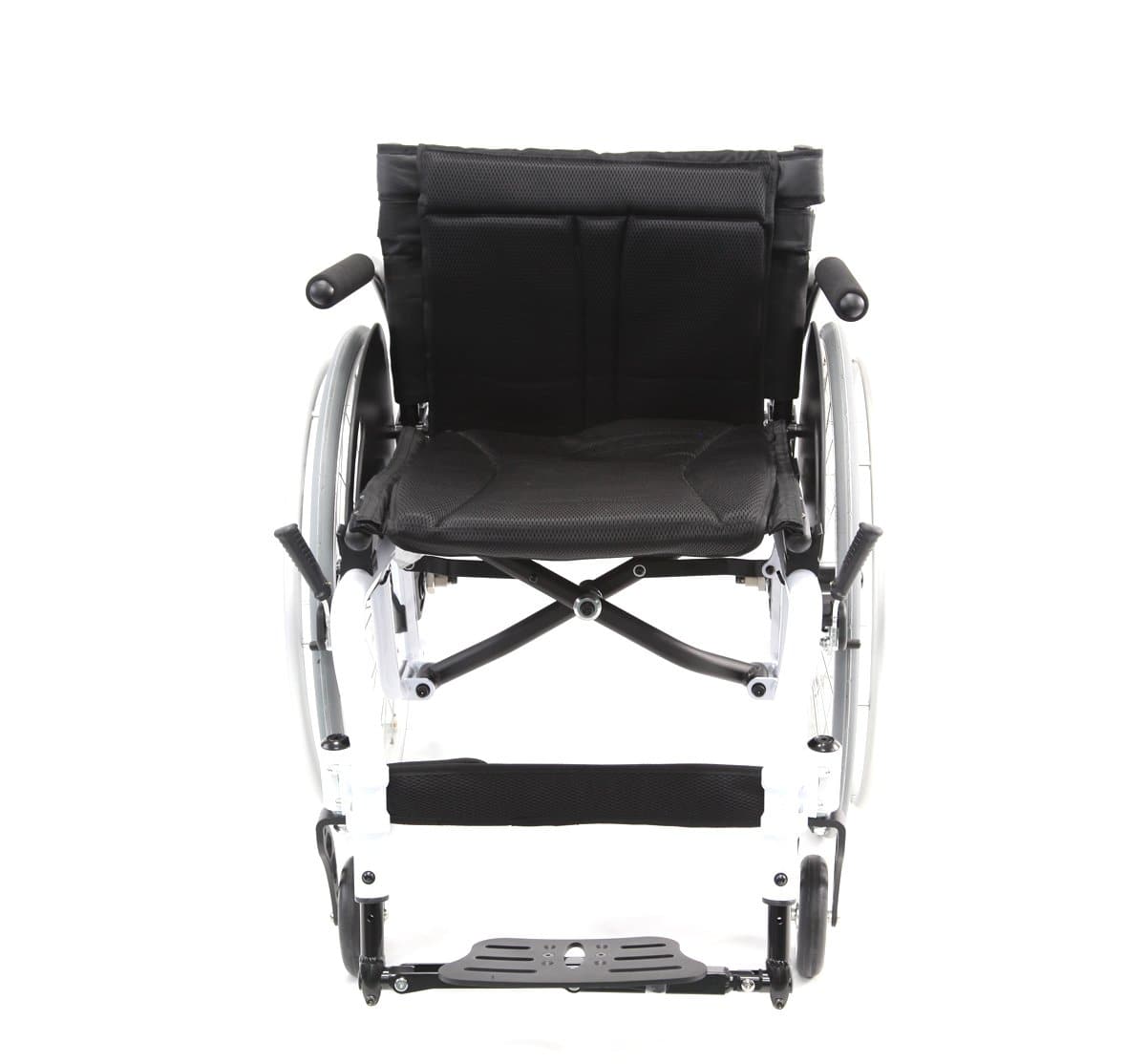

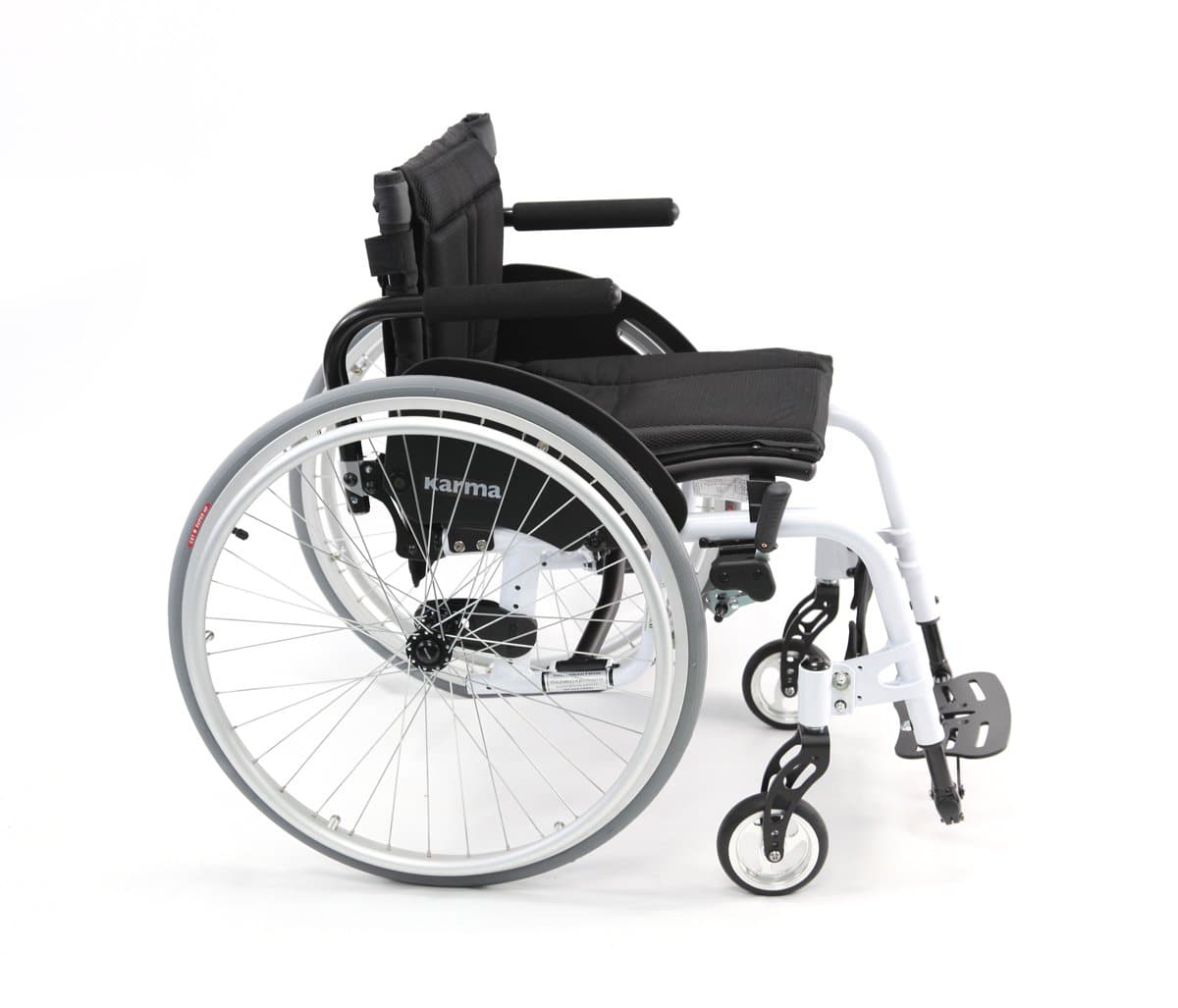

Karman Healthcare S-ERGO ATX High Performance Manual Wheelchair - 15 lbs

Karman Healthcare S-ATX-1416WT
$2,040.00
$2,040.00
Seat Size (W x D)
Frame Color

The new ATX is ideal for all those who want to ride through life boldly. Thanks to outstanding agility and rigidity of the unique multi-geometrical extruded cross bars. Special features of this “extreme design” include a compact dimensions with rigid structure. Foot plate angles are fully adjustable allowing the legs to be positioned at any desired angle.

This is the result from years of research and development. The unique tubes, welding, and components are precisely optimized to achieve the highest strength to weight ratio.

Every frame is adjusted by our master tech to your order specification. We can now improve sufficient stability for larger and stronger users while avoiding excess weight for smaller and lighter users.

The S-ERGO ATX transfers your energy to the street with ultimate style, comfort, and expression.

Choose the new BOLD ATX in our patented S-ERGO frame today! Don’t sacrifice comfort by an afterthought cushion. The ultimate statement is one with no compromise!

Features:

  • Globally Patented S-Shape Seating Frame
  • 6061 T-6 Aircraft-grade Aluminum
  • Frame Weight 15.4 lbs
  • Multitude of Adjustments on S-Ergo ATX Active ERGO
  • Center of Gravity Adjustable
  • Seat Height Adjustable
  • Back Cane Height and Angle Adjustable
  • Front Fork Adjustable
  • Unlimited angle foot rest angle adjustment
  • Tension Adjustable Seat and Back Sling
  • Flip Back Armrest
  • One piece foldable footplate (standard)
  • Foot plate height adjustable
  • Metallic Aegis Treated High Gloss Paint
  • **Please Note we will contact you for Front Seat Height, Rear Seat Height, Center of Gravity, Back Cane Height, Back Cane Angle, Footplate Height, Armrests Options, Front Casters (No additional charges)
HCPCS Code K0005 / E1236*
Seat Width 14 inch., 16 inch., 18 inch.
Seat Depth 16 inch., 18 inch.
Armrest Height 8.5 inch.
Front Seat Height 17 inch., 18 inch., 19 inch., 20 inch.
Rear Seat Height 16 inch., 17 inch., 18 inch., 19 inch.
Back Cane Angle 85°, 90°, 95°
Overall Height 29-38 inch. (dependent on seat height & options)
Overall Open Width 21 inch., 23 inch., 25 inch.
Folded Width 14 inch.
Overall Length 36 inch.
Weight With Standard Options 26 – 30 lbs
Weight Capacity 275 lbs.
Shipping Dimensions 38″ L x 32″ H x 16″ W



Please refer to the warranty card attached to each product for more information on policies and procedures. The warranty is extended only to the original purchase and delivery of the product.  Warranty is not transferable.  Parts or materials which are subjected to normal wear and tear which must be replaced / repaired are the owner’s responsibility.  Damaged caused by user negligence, accidental damages intentional or not are not covered under Factory warranty.  Arm pad and upholsteries are not covered by warranty.   It is recommended that any claims under warranty be returned to the authorized dealer for service through whom it was purchased from.

If Warranty Registration Card is not on file for the claim product, then a copy of the invoice with the date of purchase must be provided.  The warranty period for the consumer commences on the purchase date of the seller.  The warranty period for the seller, if the products are not to be sold to a consumer, commences on the invoice date from Karman.  The warranty is void on wheelchairs that have had the serial # tag removed and/or altered.

Furthermore, products which have been subjected to negligence, abuse, improper storage, or handling, improper operation, any modifications, misuse are not covered by the warranty.

All warranty repairs or replacements must have prior authorization from Karman with freight prepaid. Karman reserves the right to issue call tags for any warranty repairs, which is situation dependent. Should a field action or recall occur. Karman will identify the affected units and contact your Karman dealer with instructions for resolution. Warranty registration are still advised.  To ensure records are quickly retrieved with corresponding customer and serial number for your medical equipment. Thank you for filling out this form.  Please see RMA policy for further details, rules, and restrictions.

Register your Warranty
