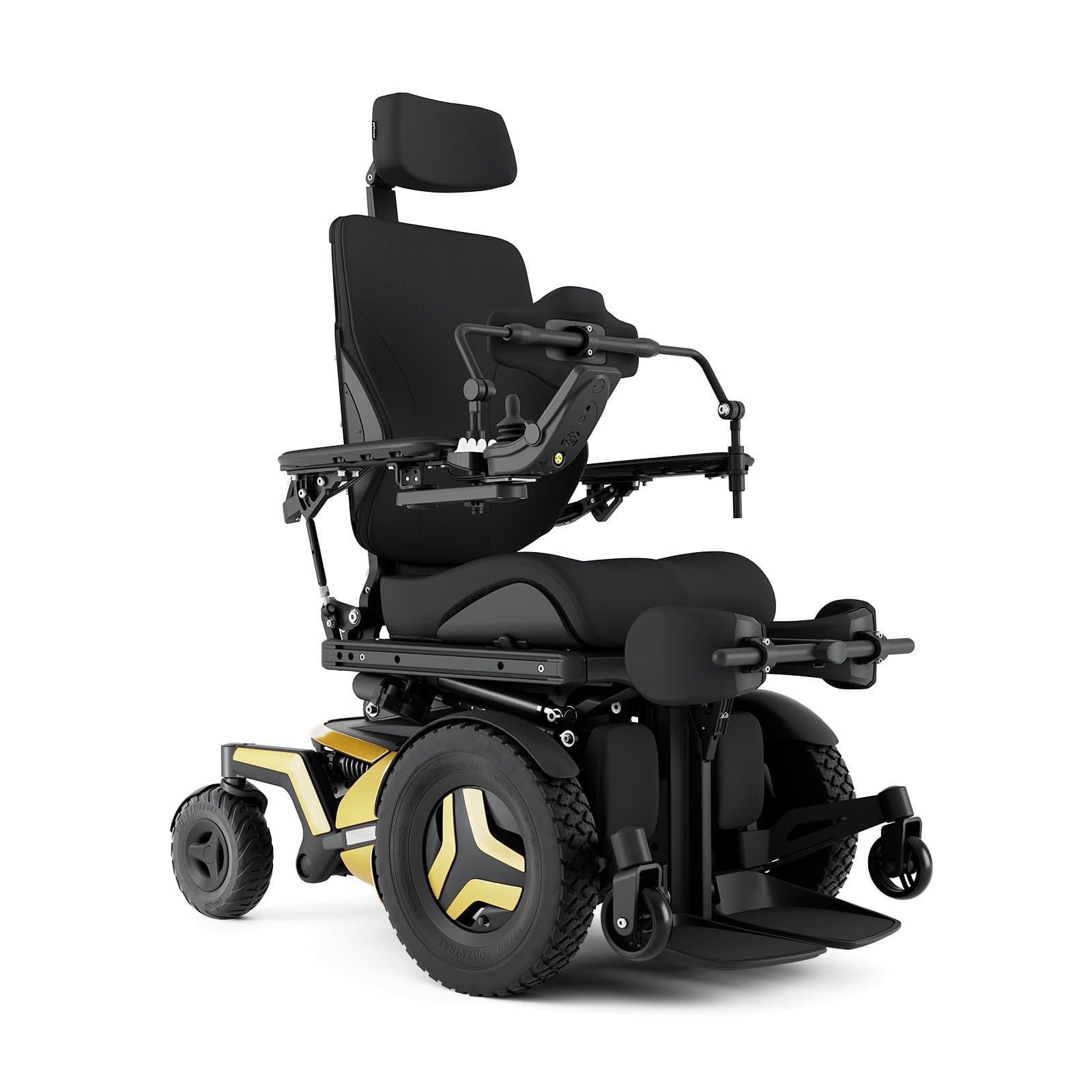

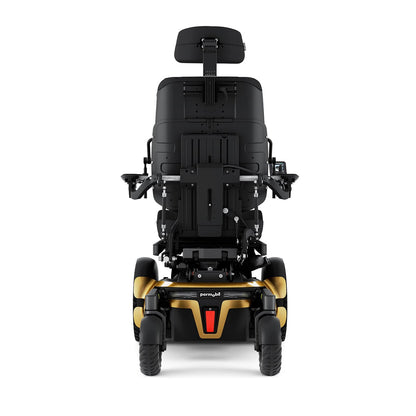

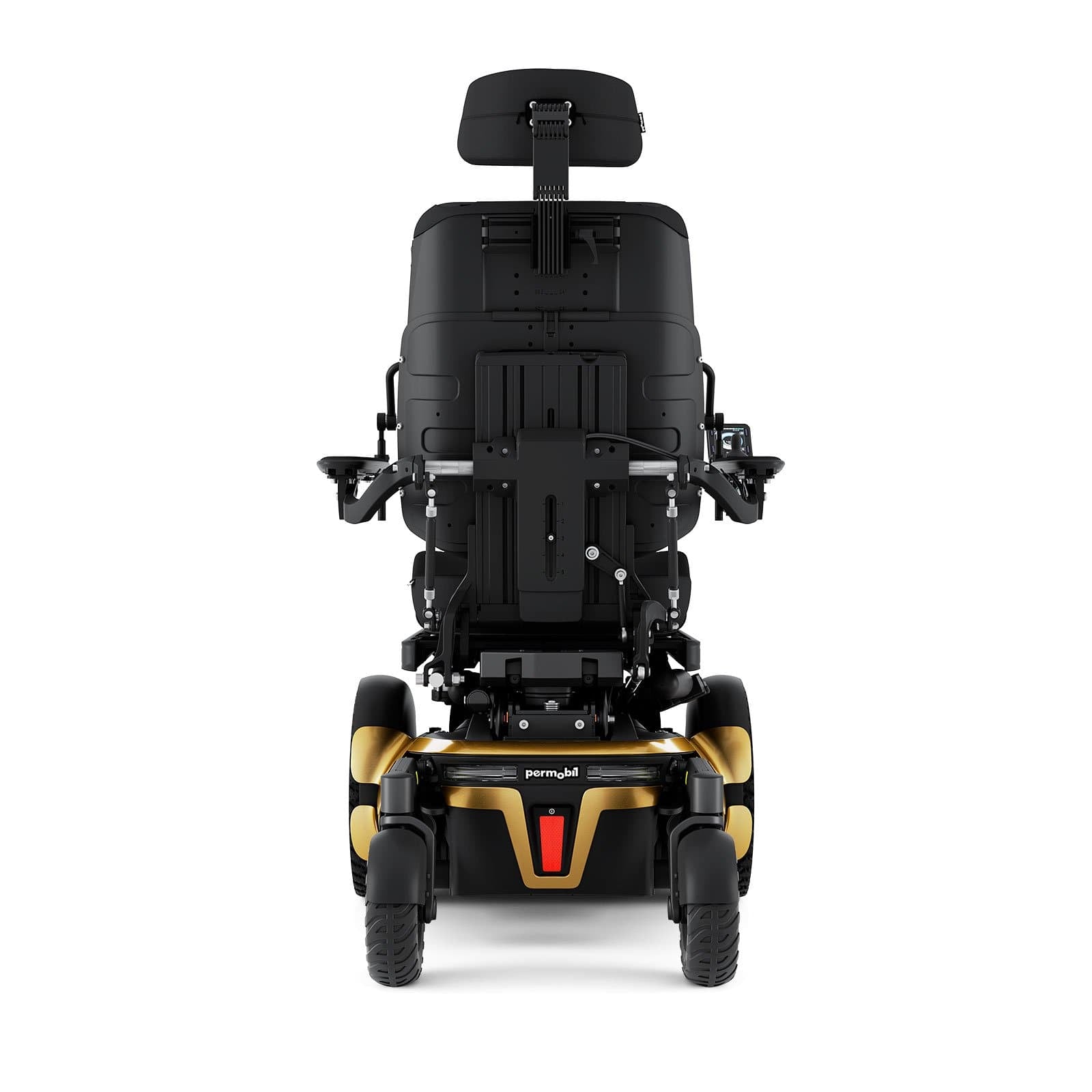

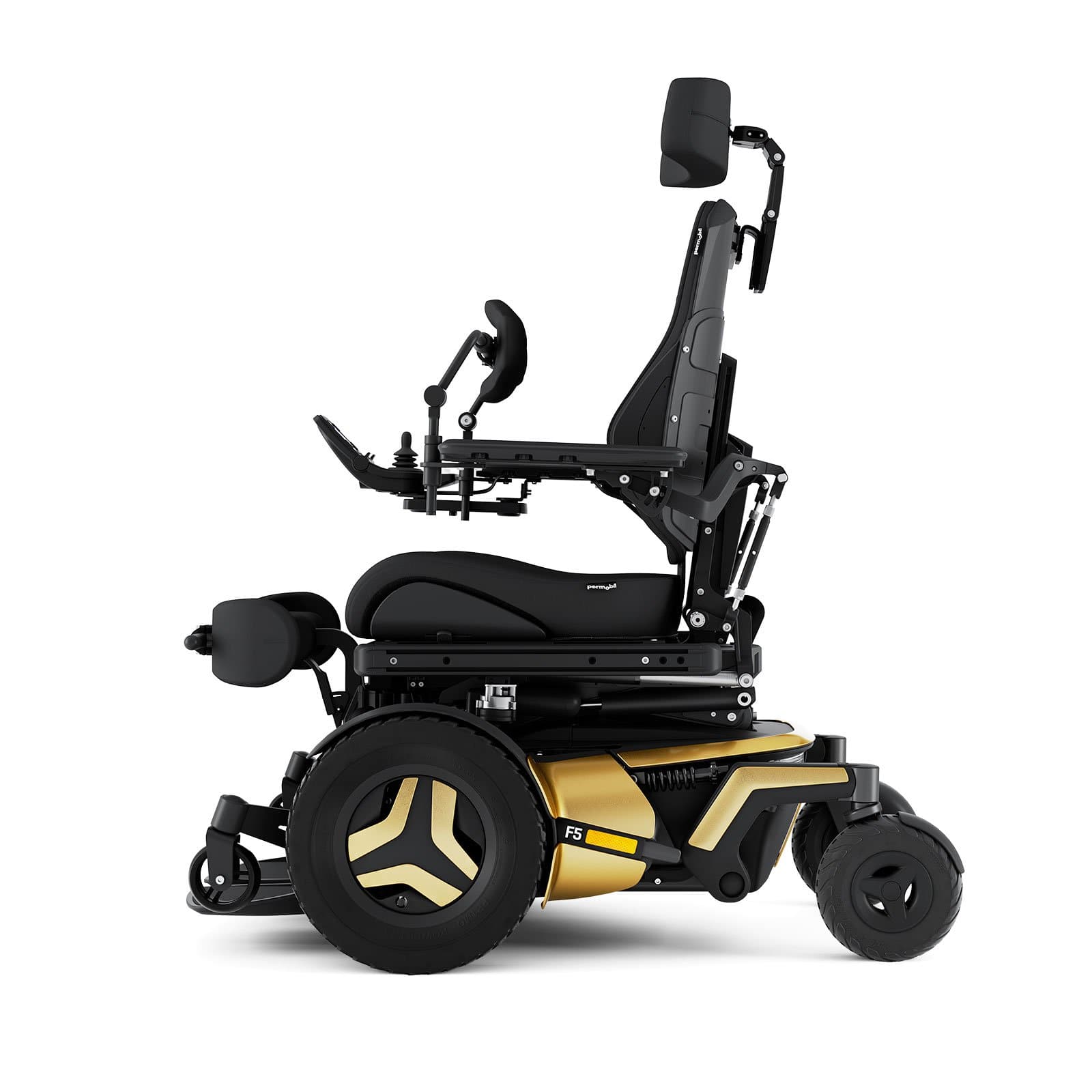

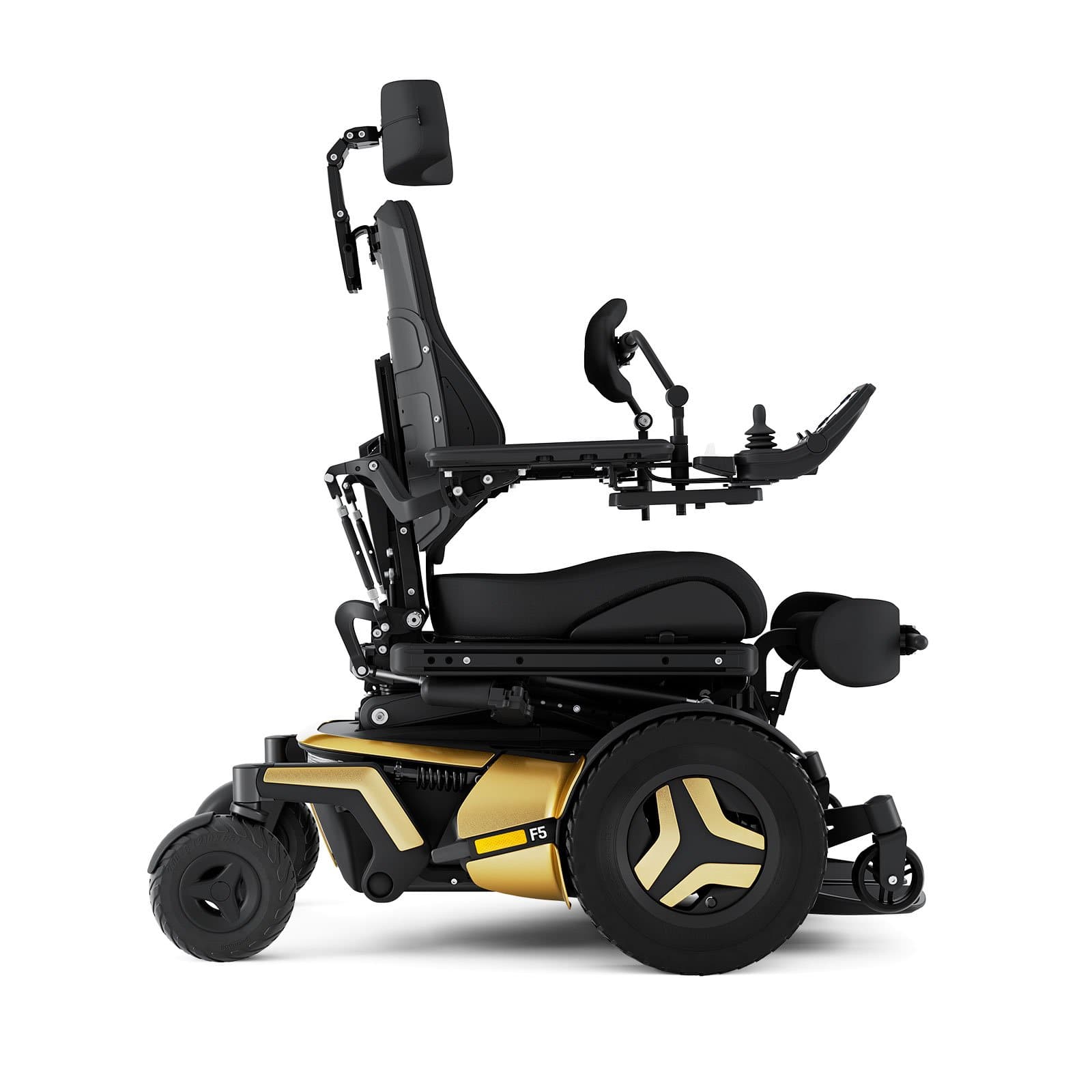

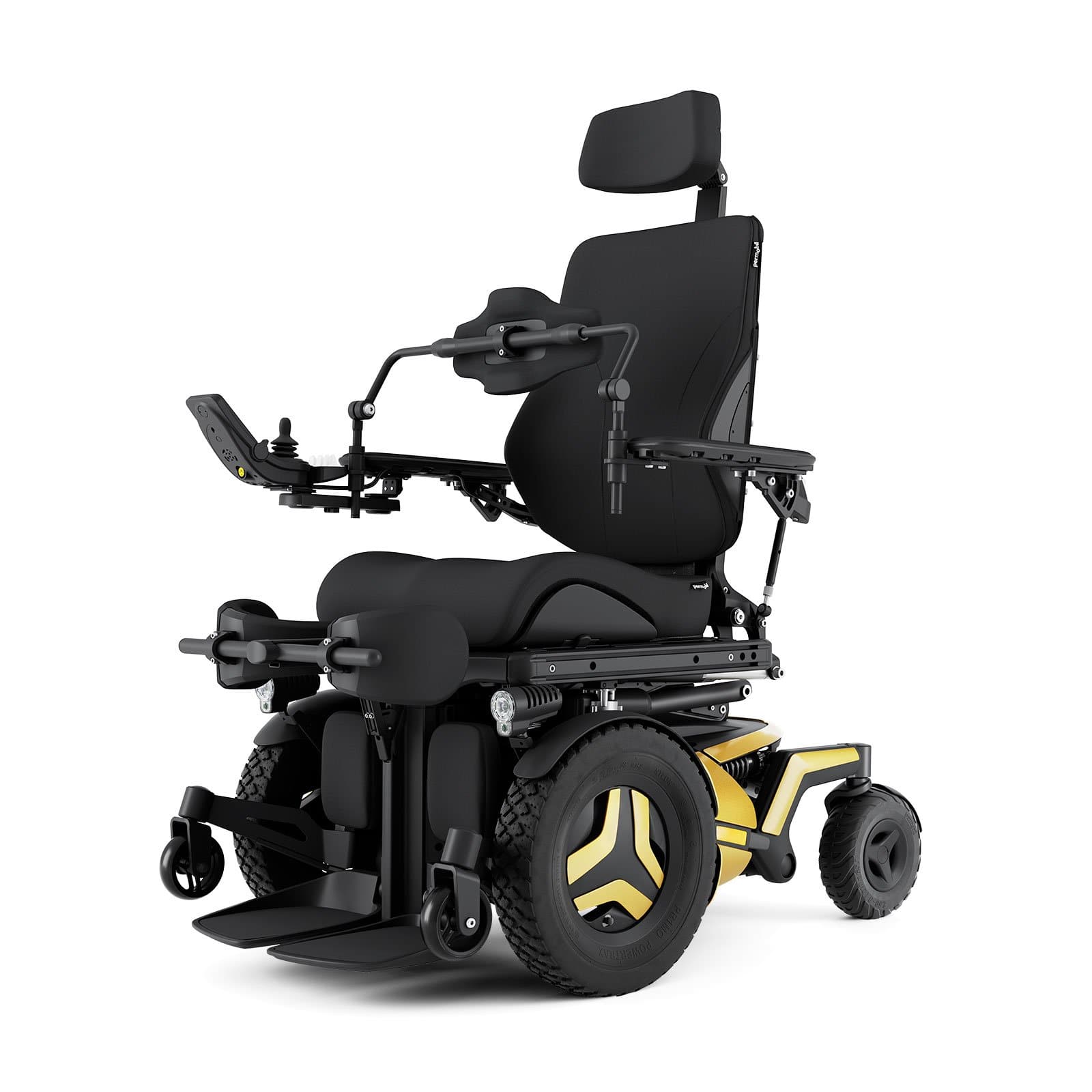

Permobil 2019 F5 Corpus VS Superior Power Standing Wheelchair

Permobil F5 Corpus VS-Gold
$45,000.00
$45,000.00

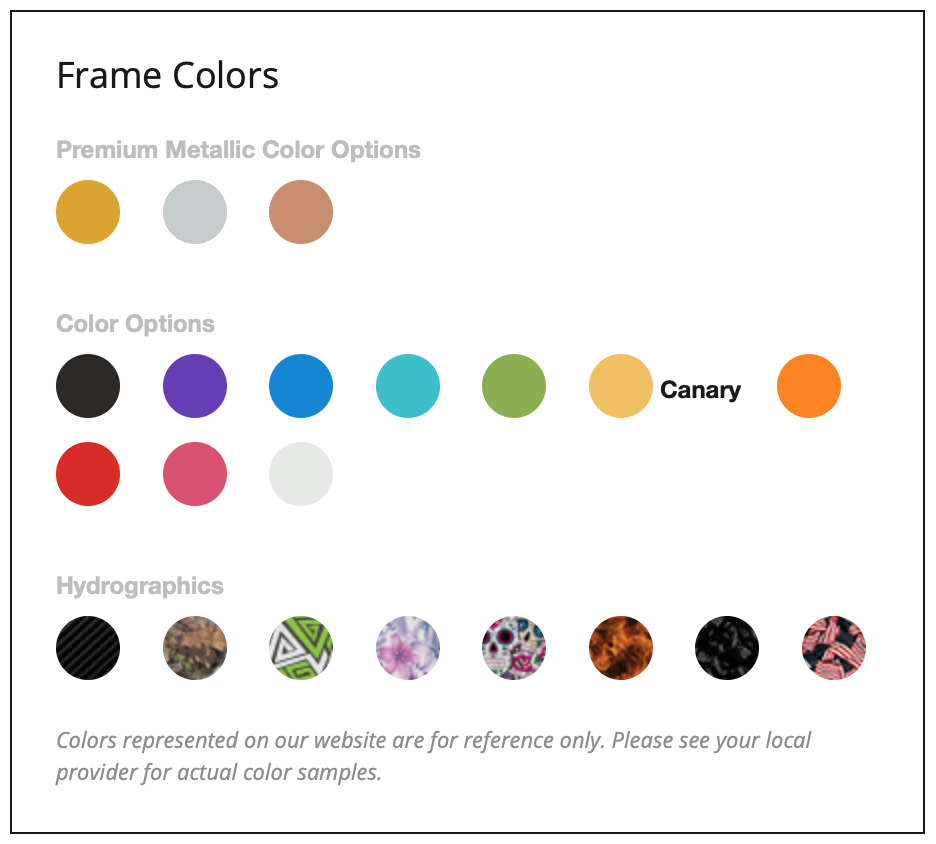

Frame Color

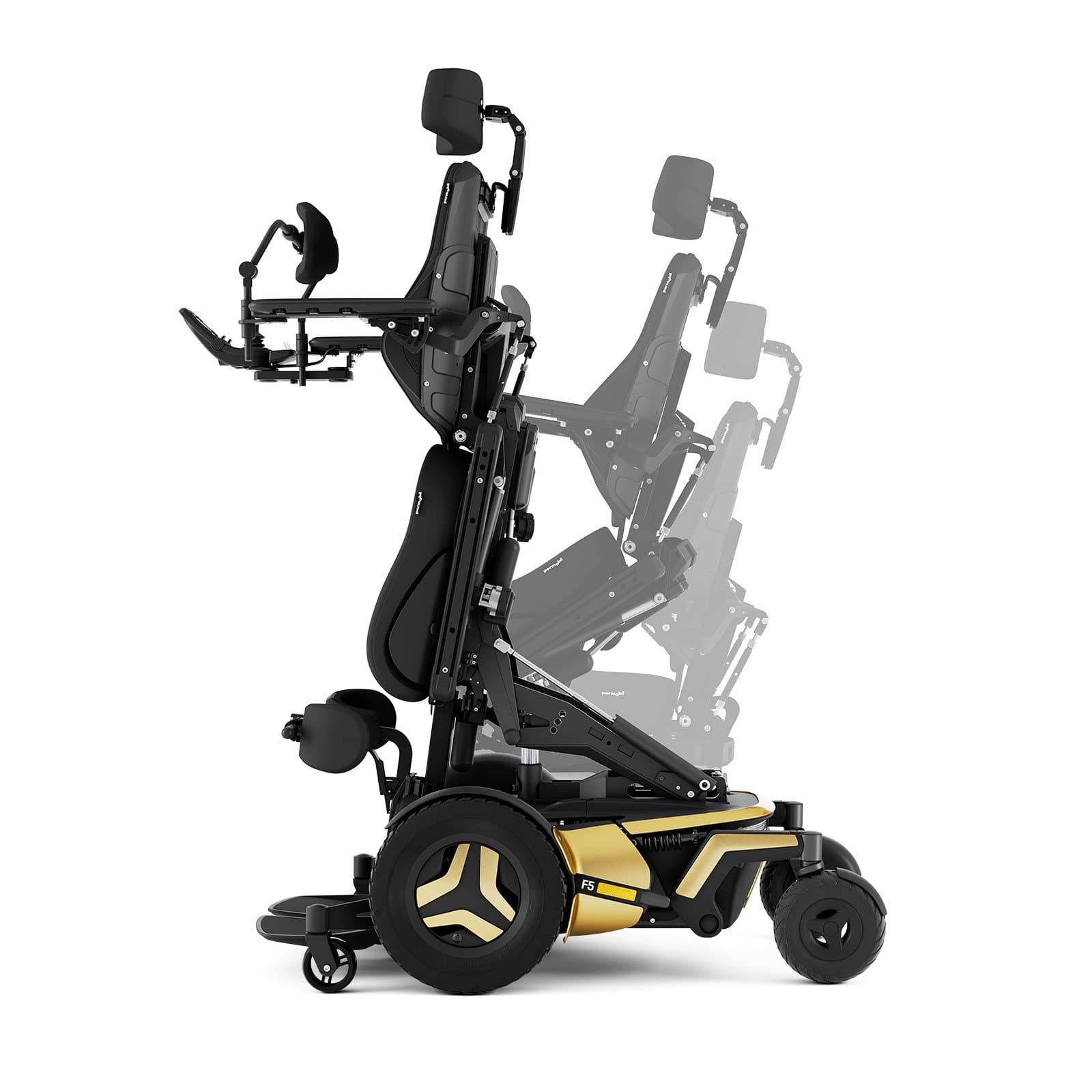

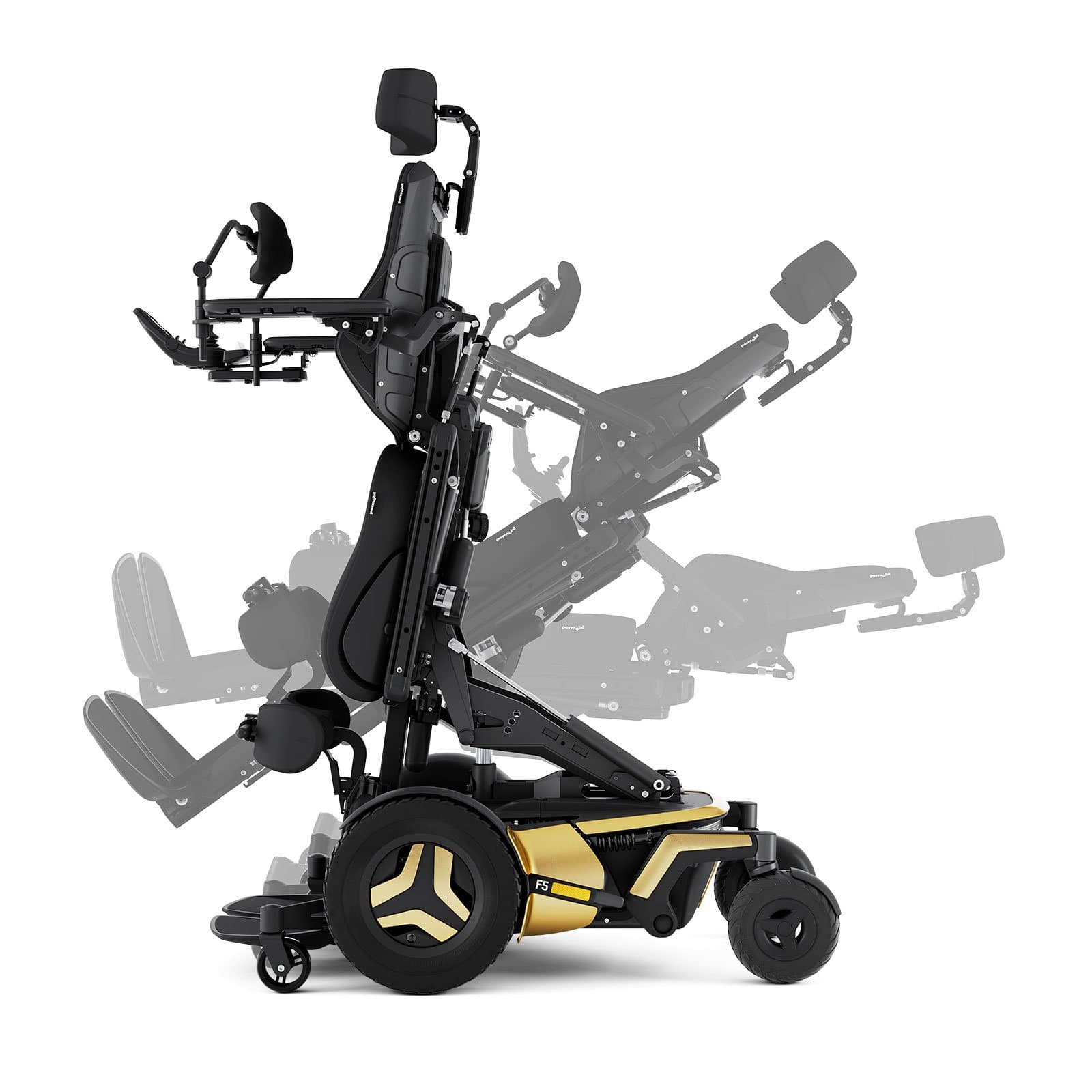

We combined all of the performance features of the F5 Corpus with superior power standing wheelchair functionality. Fully programmable standing sequences allow user position to be optimized using supine, semi-reclined or sit to stand techniques. Further customize standing positions with adjustable anterior chest pad, moldable knee supports and power articulating footplates. From face-to-face interactions to improved health outcomes, the F5VS empowers you to explore the vast array of standing wheelchair benefits.

*Please contact us for custom fitting quote. All Permobil Power chairs are custom configured and built for user specifications. Price shown is base model.

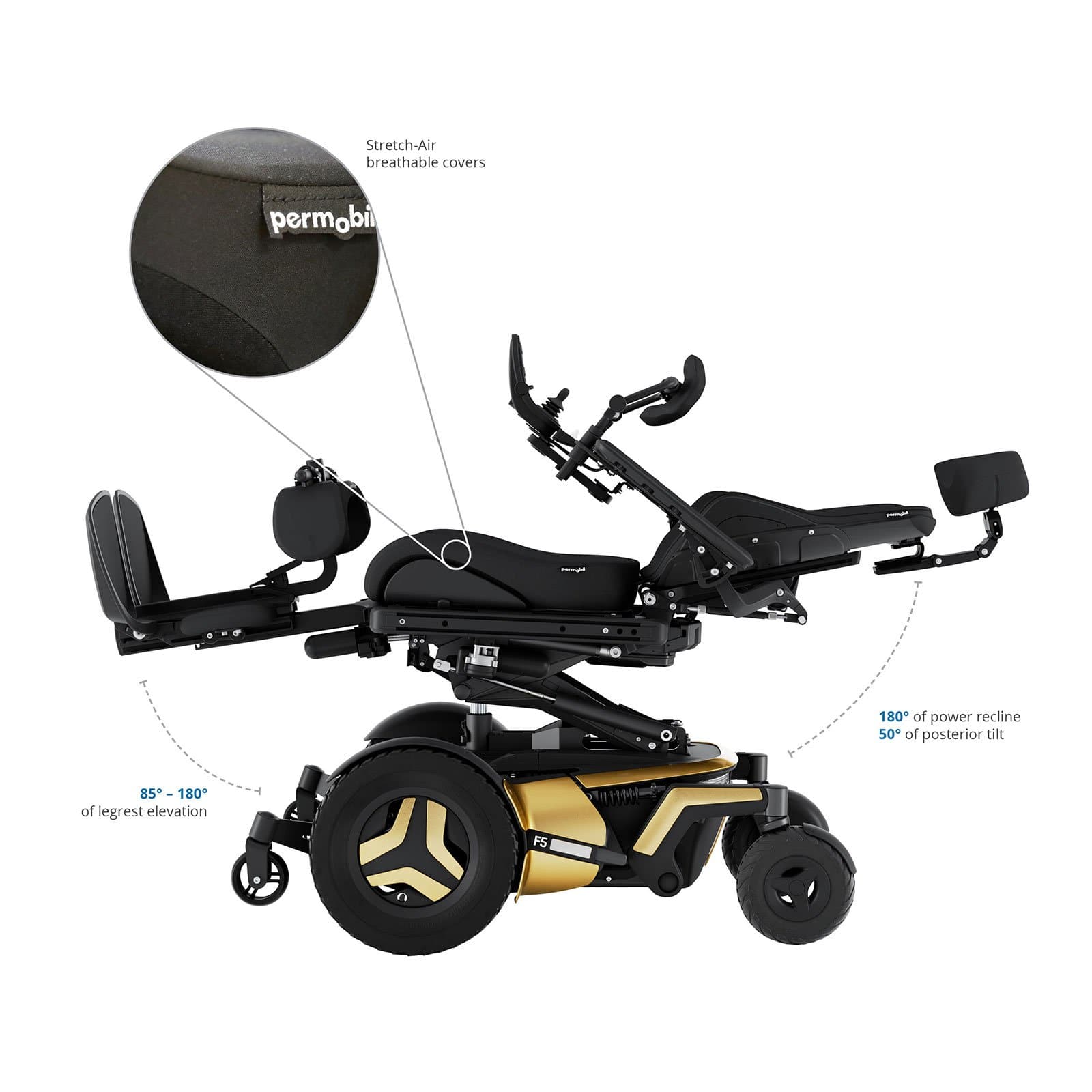

The Corpus® Seating System

Our new dual density backrest foam promotes greater surface area contact while the redesigned Ergo seat pelvic well insert can help pressure redistribution and reduce peak pressures. Stretch-Air covers offer a breathable, moisture resistant fabric material to enhance comfort and help protect underlying foam.

Unprecedented Functionality

With features like programmable power footplates and standing backrest angle adjustments all while retaining 50º of tilt, the F5 Corpus VS stands without compromise.

Features:

  • ComfortRide Pro SuspensionA true fully independent suspension allows the F5 Corpus VS to absorb everyday terrain and obstacles with minimal translation to the user.
  • ActiveHeight™ & ActiveReach™The world isn’t one dimensional. Your seat elevator shouldn’t be either. ActiveHeightelevation and ActiveReachforward tilt perform seamlessly to create a seating system like no other.

  • Comfort is KingCorpus®, the world’s leading ergonomic seating system, just got better. Biomechanically optimized power positioning has been enhanced with Corpus Ergo Seat cushion with redesigned pelvic well and new Corpus Ergo backrest cushions with dual density foam. New Stretch-Air cover option is a breathable, machine washable fabric with a low moisture vapor transfer.

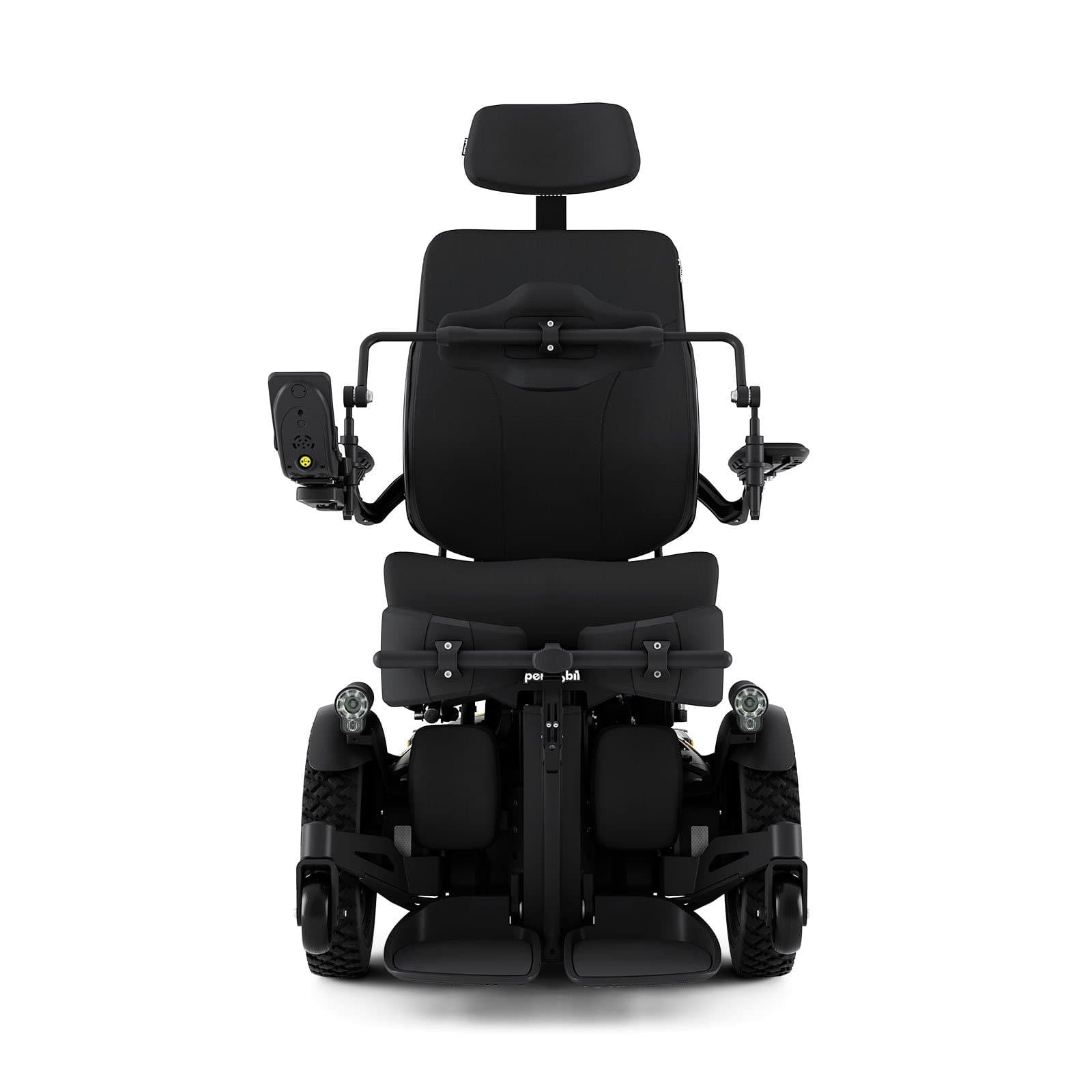

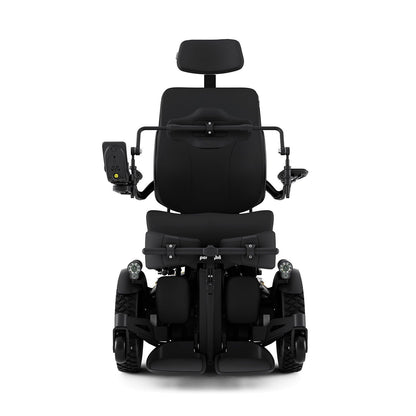

  • Make a StatementNew high power LED head lights are twice as bright, making it easier to see and be seen. With a sleek new design, expanded color/hydrographic options and powerful new LED lighting you should be prepared to turn a few heads in your new F-Series.

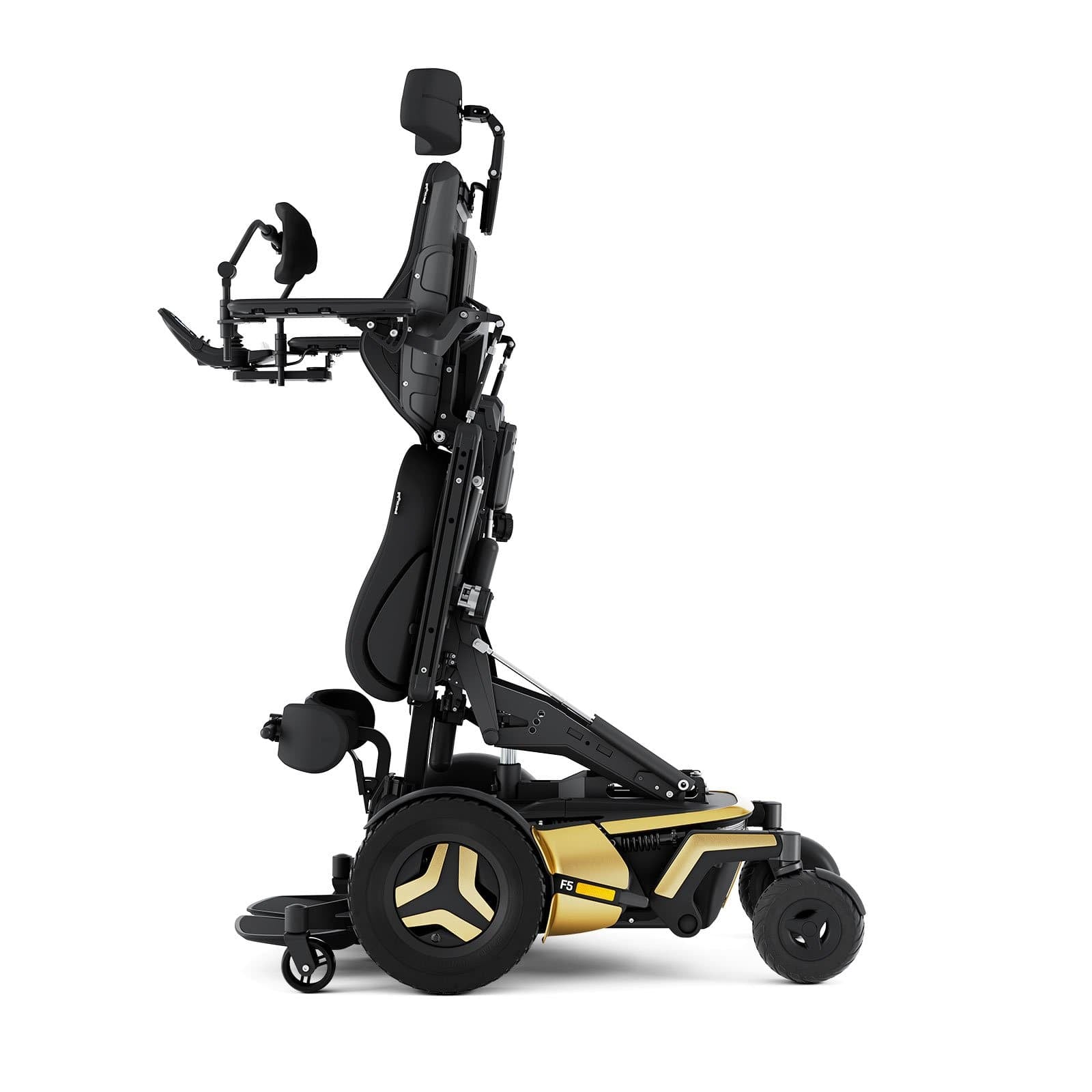

  • Redefining SupportThe chest bar and knee blocks on the F5 Corpus VS have been completely redesigned for comfort and accessibility. With features like simplified adjustment points and quick release mechanisms, utilizing a standing wheelchair has never been easier.

  • Automatic Anti-tippersThe F5 Corpus VS’ powered anti-tippers are attached directly to the chassis and automatically deploy during the stand sequence, providing the most stable standing platform available, no matter the angle.


Specifications
Maximum User Weight 300lbs
136 kg
Maximum Speed 7.5 mph
12 km/h
Driving Range (1) 16 miles
26 km
Base Width 25.5"
648 mm
Base Length 43"
1093 mm
Minimum Turning Radius 30"
762 mm
Ground Clearance 3"
75 mm
Drive Electronics R-net 120A
Battery Type Group 24 Gel
Seat Elevator 14"
350 mm
Seat to Floor Height 17.5", 18.5", 19.5"
445, 470, 495 mm
Power Tilt Options 0° - 50° Posterior
Recline Options 85º-180° (Power)
Legrest Elevation 90° - 180°
Armrest Pad Lengths 10", 13", 16", 18"
Seat Widths 17" - 23" (by 2" increments)
420 - 570 mm
Seat Depths 14" - 22" (by 1" increments)
370 - 570 mm
Backrest Heights 23" - 28" (by 1" increments)
580 - 710 mm
