Arjo Maxi Twin Floor Patient Lifter - Arc Style with Powerbase
Certified Open Box
Senior Help Center
We are here to help! Whether you have a product question, order related question, return request or just need a friendly person to assist you, we are here to help! Our Customer Care Specialists are exceptionally trained to provide you with the assistance you need. Chat with us today or fill out this form and a Specialist will be with you as quickly as possible!

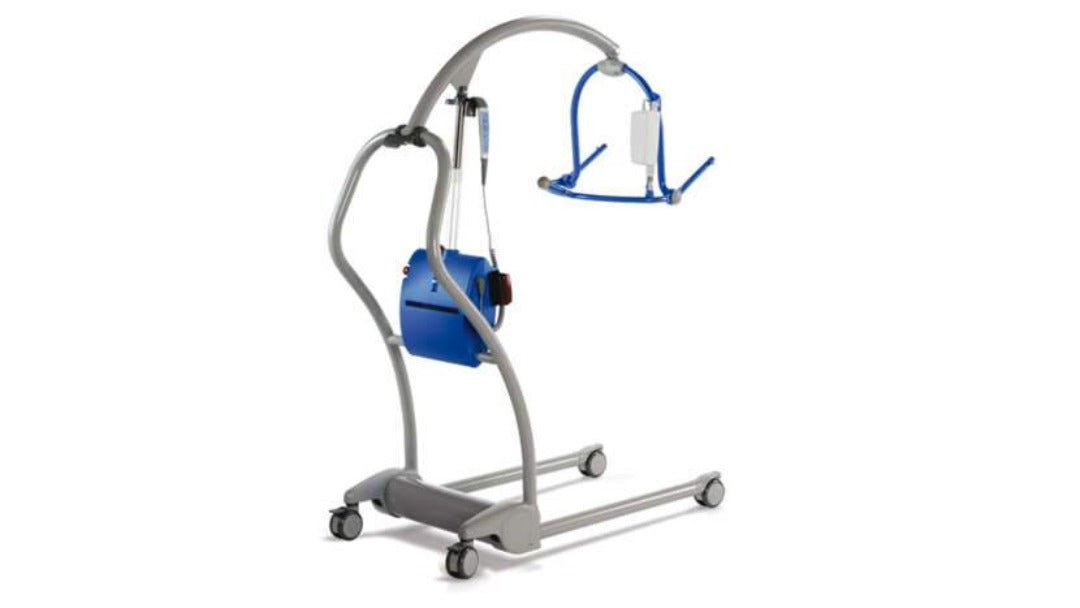

The open design of the Arjo Huntleigh Maxi Twin can enhance safe working practices for caregivers when transferring dependent patients or residents. The twin-mast design distributes the weight evenly, and the large handholds enable caregivers to maneuver the lifter. The open mast design also allows for additional legroom for the patient. Integrated with the spreader bar is a powered dynamic positioning system (PDPS) that helps in repositioning the patient in the sling, minimizing manual handling.
Features:
- MANEUVERABILITY - The twin-mast design distributes the weight evenly, and the large handholds enable caregivers to maneuver the lifter. The open mast design also allows for additional legroom for the patient.

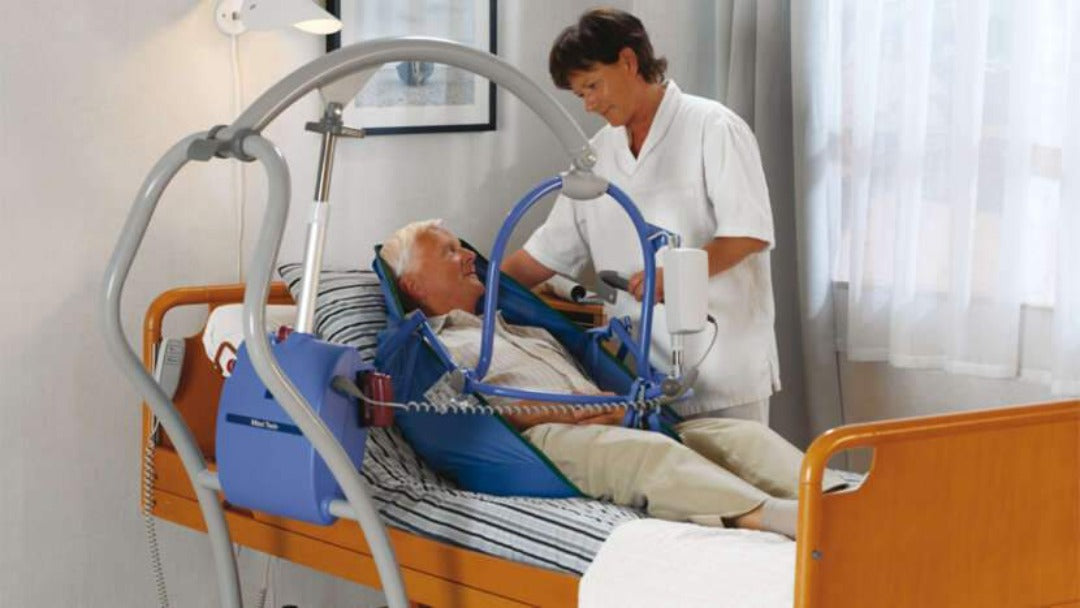

- EYE CONTACT - The dual mast is designed to enable close, reassuring contact between caregiver and patient throughout the transfer.
- PRECISION TRANSFERS - Integrated with the spreader bar is a powered dynamic positioning system (PDPS) that helps in repositioning the patient in the sling, minimizing manual handling.
- SINGLE CAREGIVER - Maxi Twin has been designed to be operated by a single caregiver.
- ELECTRONIC SCALE (OPTION) - Optional electronic scale enables the caregiver to weigh the patient while performing a transfer.
- POWERED DPS - The powered dynamic positioning system (PDPS) minimizes manual handling and improves precision when positioning the patient.
-
RANGE OF SPREADER BARS - The choice of different loop spreader bar sizes and a 4-point spreader bar with powered DPS offers options for patients with different needs.
-
ERGONOMIC HANDLING - The Maxi Twin dual mast provides convenient positioning handles to suit caregivers of different heights.
- HIGH-FRICTION SOLUTION - The friction solution reduces swinging of the spreader bar during patient transfers
Specifications
Weight and dimensions | |
---|---|
Max safe working load kg | 182 kg |
Max safe working load lb | 400 lbs |
Lifter weight (with spreader bar and battery) kg | 58 kg |
Lifter weight (with spreader bar and battery) lb | 126 lbs |
Max lifting height mm | 1460 mm |
Max lifting height in | 57,7 in |
Min lifting height mm | 230 mm |
Min lifting height in | 9,12 in |
Lifting stroke mm | 1230 mm |
Lifting stroke in | 48,5 in |
Min total storage height mm | 1370 mm |
Min total storage height in | 54 in |
External width legs closed mm | 755 mm |
External width legs closed in | 29,75 in |
External width legs open mm | 54 in |
External width legs open in | 1371 mm |
Internal width leg closed mm | 630 mm |
Internal width leg closed in | 24,9 in |
Internal width leg open mm | 1231 mm |
Internal width leg open in | 48,5 in |
Leg clearance (floor to top of legs) - standard castors mm | 115 mm |
Leg clearance (floor to top of legs) - standard castors in | 48,5 in |
Leg clearance (floor to top of legs) – low castors mm | 4,7 in |
Chassis clearance (floor to bottom of chassis) – standard & low castors mm | 31 mm |
Chassis clearance (floor to bottom of chassis) – standard & low castors in | 1,2 in |
Lifter length mm | 1298 mm |
Lifter length in | 51,12 in |
Turning diameter mm | 1440 mm |
Turning diameter in | 56,6 in |
Electrical | |
Lifter protection class | IP24 |
Hand control protection class | IPX7 |
Battery | 24V, 2.5 Ah NiMH |
Downloads
Click The Links Below To Download
Scales Instructions for Use
Maxi Twin Quick Reference Guide - Use
Maxi Twin Quick Reference Guide - Functions
