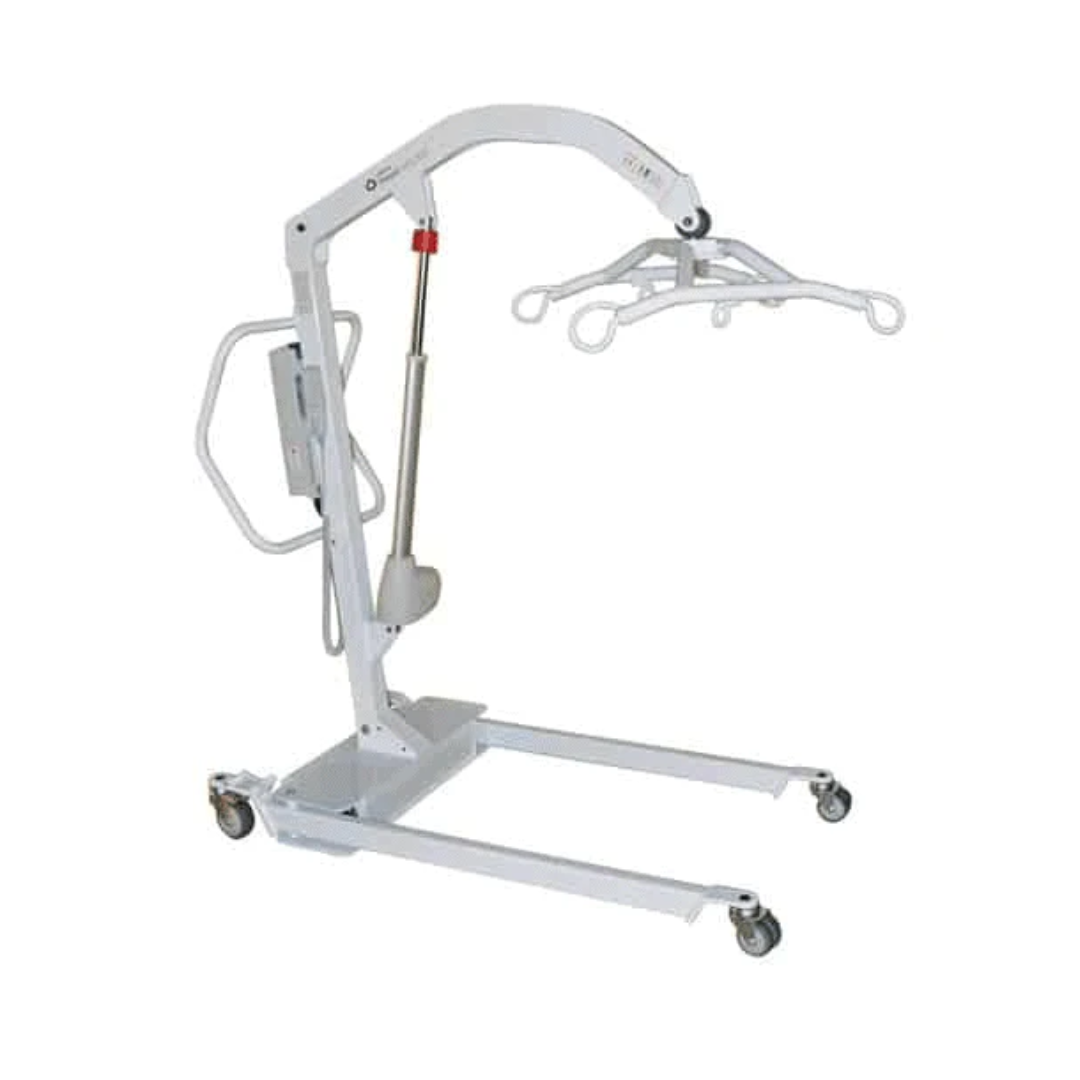

Joerns Hoyer HPL700-S2 Heavy-Duty Bariatric Patient Lift with Power Base

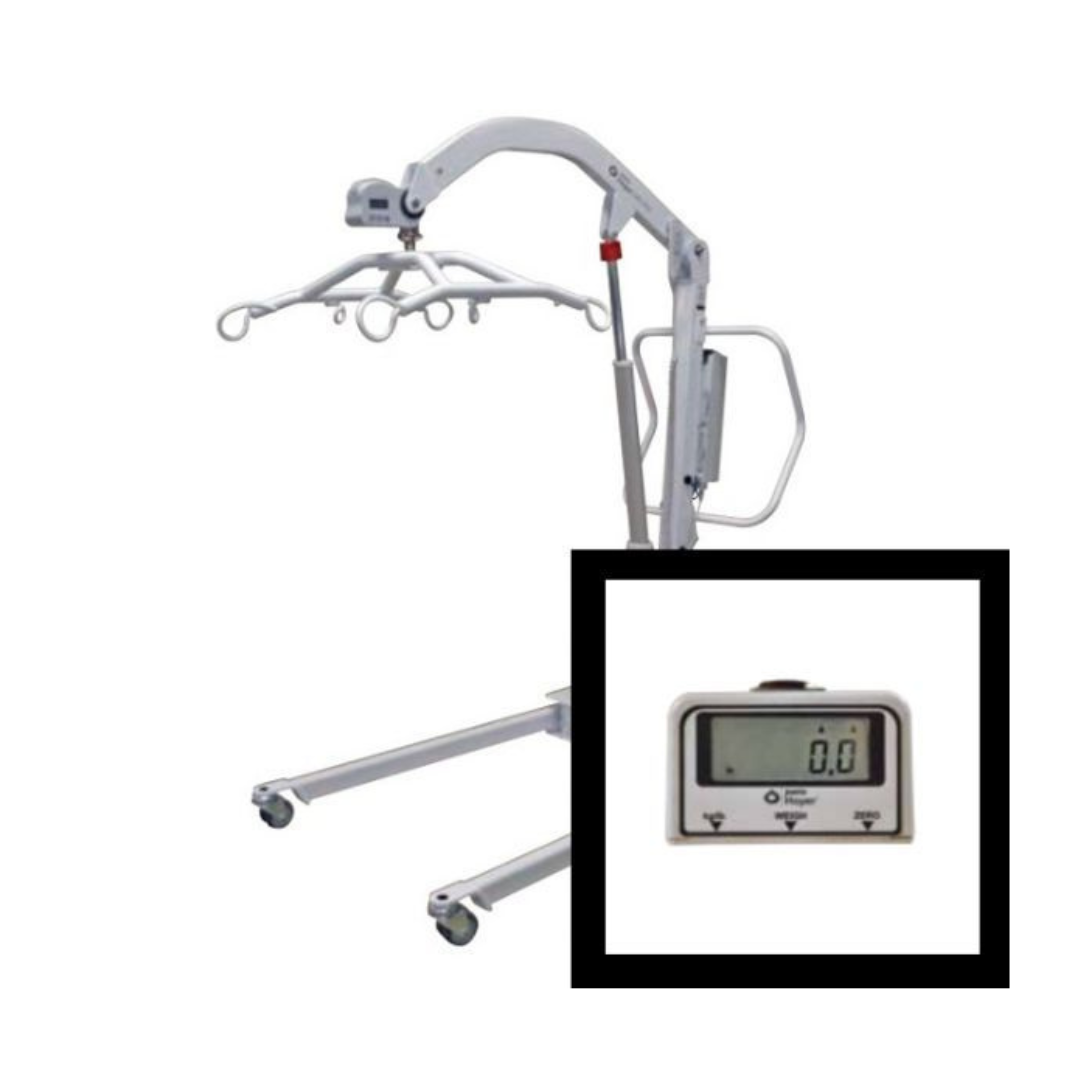

The Joerns Healthcare Hoyer Heavy-Duty Bariatric Patient Lift with Power Base is a uniquely designed electronically operated patient lift for the safe lifting of heavier patients. Safe working load rating of 700 lbs. Designed to be configured with or without a weigh scale. The weigh scale is seamlessly integrated with a digital display on both sides and user-friendly controls. Features The large, open cradle results in less discomfort to the patient caused by pinching and squeezing. The powered base allows the legs to be opened and closed to enable access around armchairs, wheelchairs and similar obstacles without bending or twisting. The HPL700 comes standard with two batteries and a charging station. Visual and audible low-battery indicators are featured. The optional scale allows the caregiver to adjust the position of the display for easier viewing. Simple, intuitive controls provide the resident's weight in pounds or kilograms.

Specifications

• Maximum Overall Length: 56 in
• Minimum Overall Length: 55"
• Maximum Overall Height: 81"
• Minimum Overall Height: 57.75"
• Reach at Maximum Height: 28.5"
• Reach at Minimum Height: 27"
• Maximum Reach: 37.75"
• Turning Radius: 62"
• Legs Open - External Width: 46.25"
• Legs Open - Internal Width: 42.25"
• Legs Closed - External Width: 27.5"
• Legs Closed - Internal Width: 23.5"
• Overall Height of Legs: 4.5 in.
• Ground Clearance: 0.625 in.
• Front Twin Casters: 3 in.
• Rear Braked Casters: 4 in.
• Weights Mast, Base, Boom Assembly, Cradle: 143.4 lbs.
• Power Pack: 6.6 lbs.
• Total: 150 lbs
• Base Assembly: 83 lbs.
• Mast and Boom (not including battery): 40.4 lbs.
• 6-Point Spreader Bar: 20 lbs.
• 6-Point Spreader Bar (measurement to top of location pins)
• Cradle Maximum Height: 69"
• Cradle Minimum Height: 23.25"
• Electrical Shock Protection Charger - Class II Lift - Internal power source Degree of shock protection Charger - Type B Lift - Type B Electrical
• Specifications Battery: 24vDC rechargeable sealed lead acid type
• Battery Capacity: 3.2A Ampere-hours
• Charger Rated Input: 100-240Vac 50/60Hz
• Charger Rated Output: 27.4 VDC@0.8A
