Key Specs:

• Top Speed: 3.70 mph
• Maximum Drive Range Per Charge: 6.2 miles
• Weight Capacity: 260 lbs.
• Total Weight: 67.8 lbs.

General Specs:

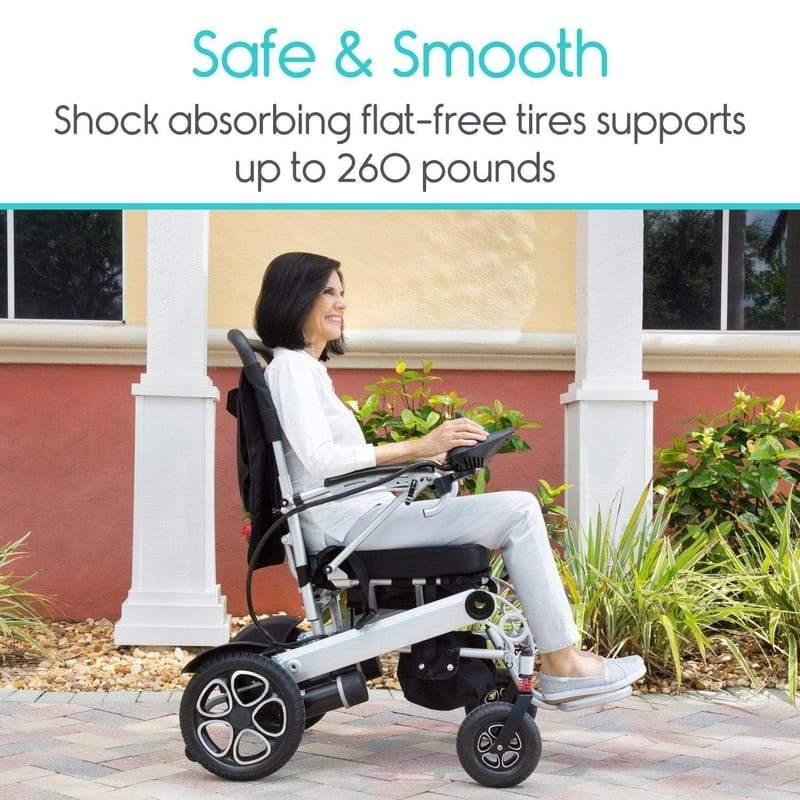

• Front Tires: 7.9"
• Rear Tires: 11.8"
• Maximum Speed: Up to 3.7 mph

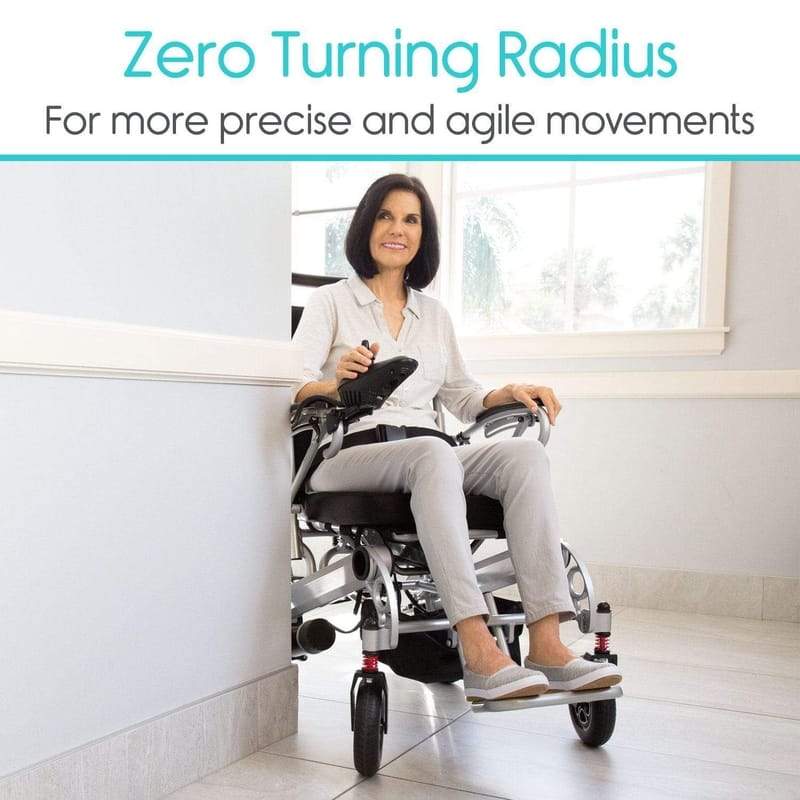

• Turning Radius: 47.2’
• Length: 42.9"
• Width: 24.4”
• Height: 40.1”

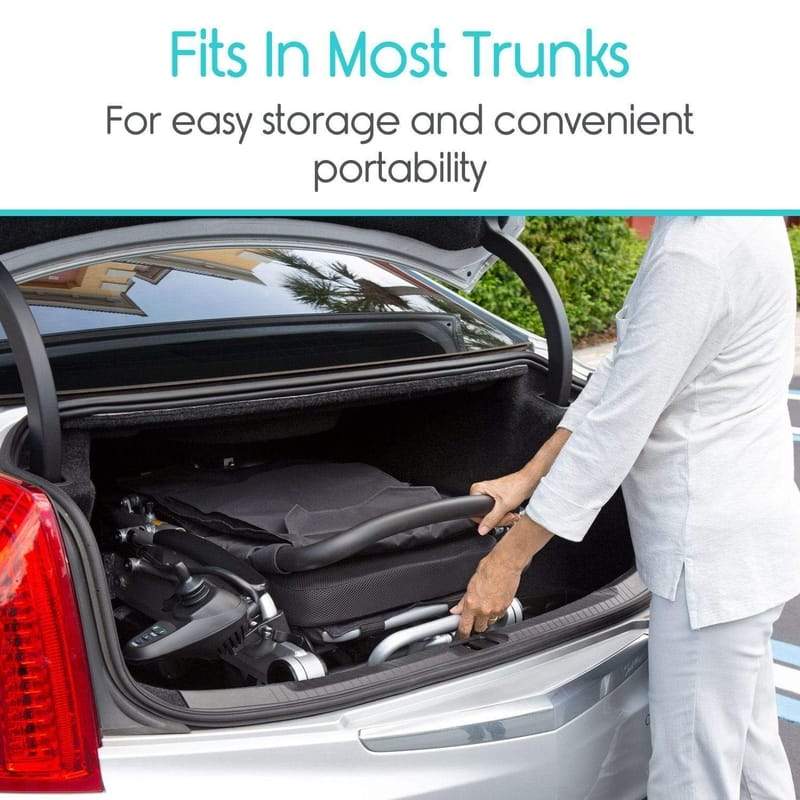

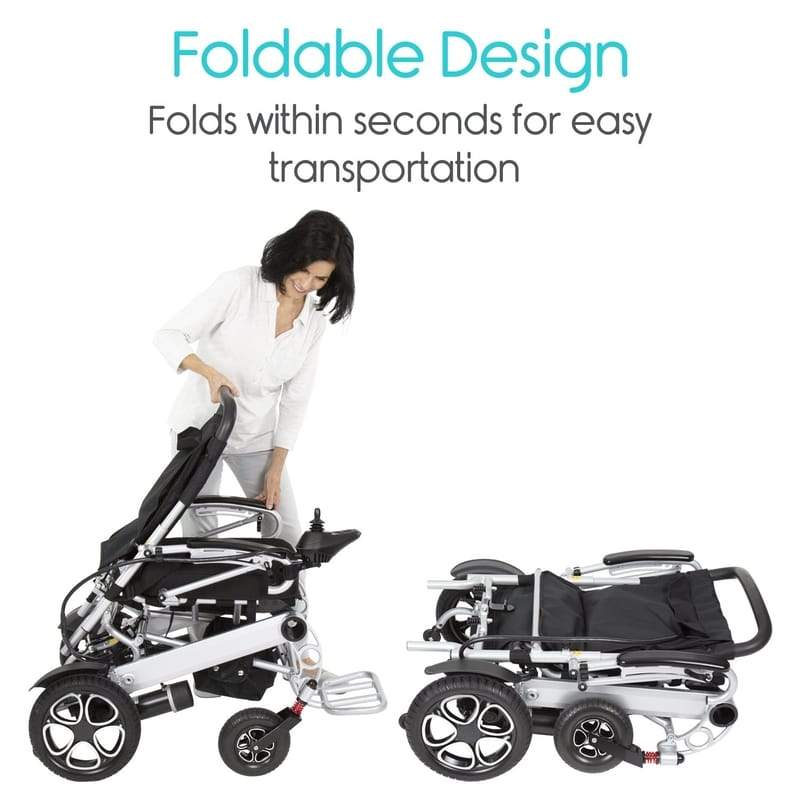

• Dimensions when folded: 35” by 25” by 14”
• Seat-to-Ground Height Range: 19.7”
• Seat Dimensions: 17.25” by 17.5”
• Seat back height: 21.2”

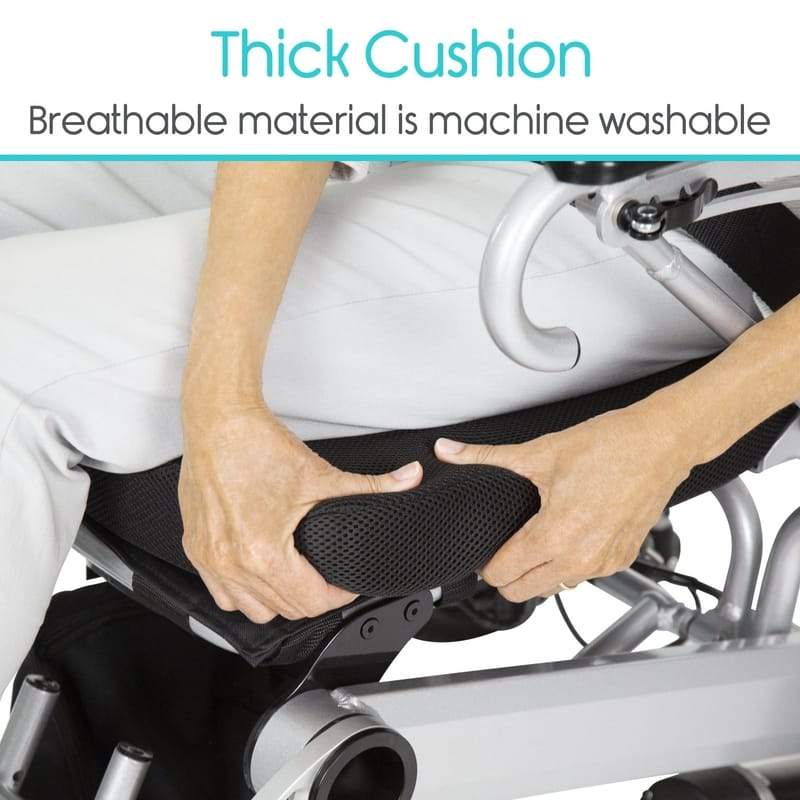

• Seat Material: Dense foam base with a breathable cover
• Ground Clearance: 6"
• Total Weight: 67.8 lbs.
• Battery Requirements: 24V 10AH
• Maximum Range Per Charge: Up to 6.2miles

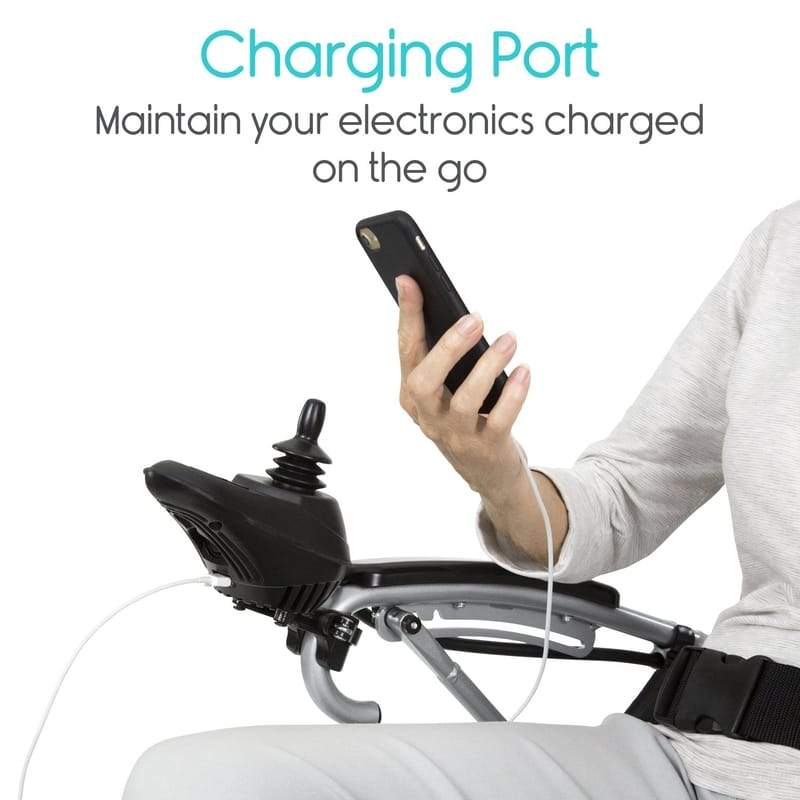

• Battery Charger: On-board charger, 2A
• Motor: 24-volt/200W
• Maximum Weight Capacity: 260 lbs.

What’s Included:

• Vive Mobility Power Wheelchair
• Rechargeable lithium battery
• 3-Pin charging cable
• Three-year limited guarantee

Warranty:

• Three year warranty on the frame from the date of purchase
• One-year warranty on the dual motors and joystick controller from the date of purchase
• Six month limited warranty on the lithium battery from the date of purchase

UPC:818323027983

Product Number: MOB1029L

User Manual: Power Wheelchair
