| Material |
Stainless steel |
| Finish / Colour |
Polished Chrome (-CP)

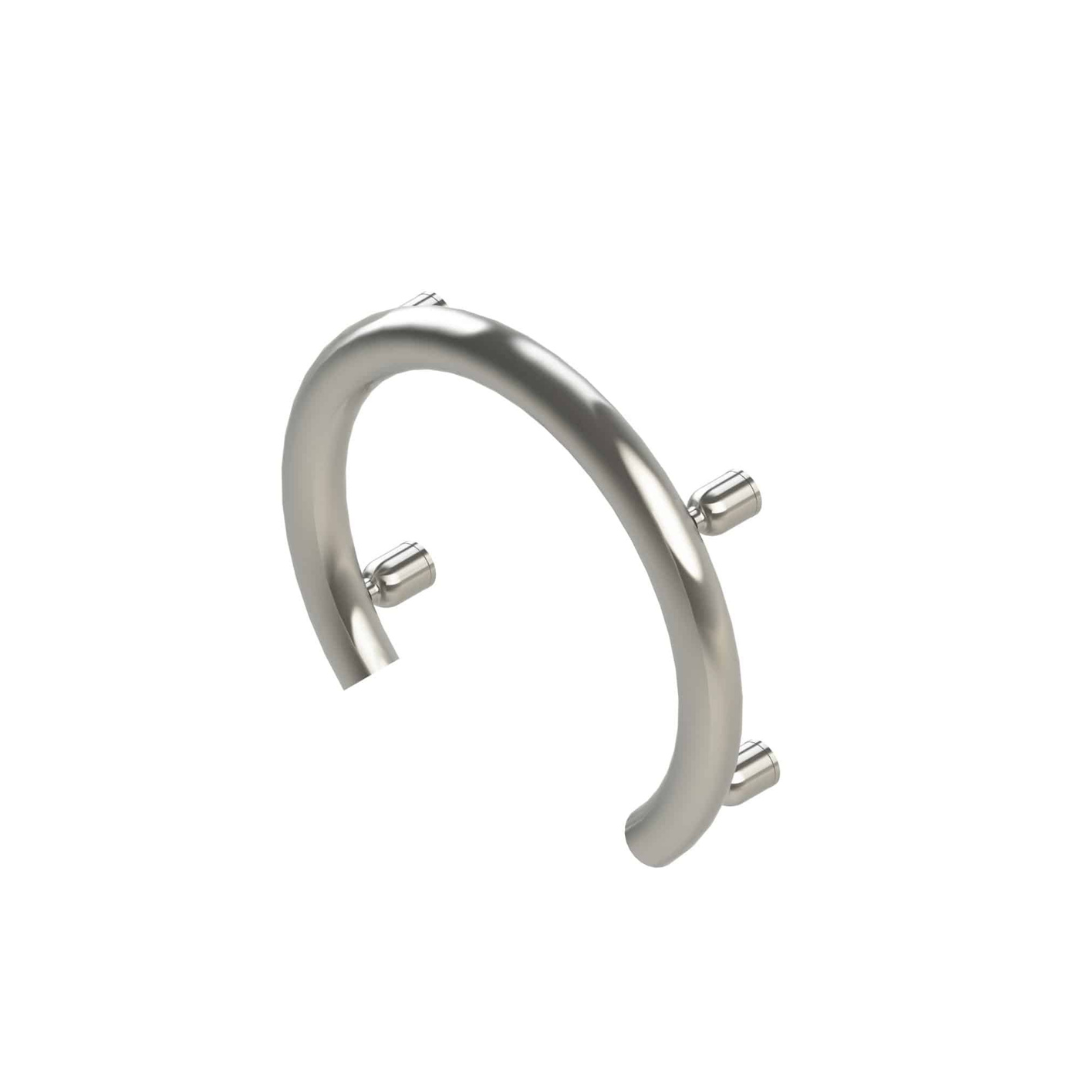

Brushed Stainless (-BS)

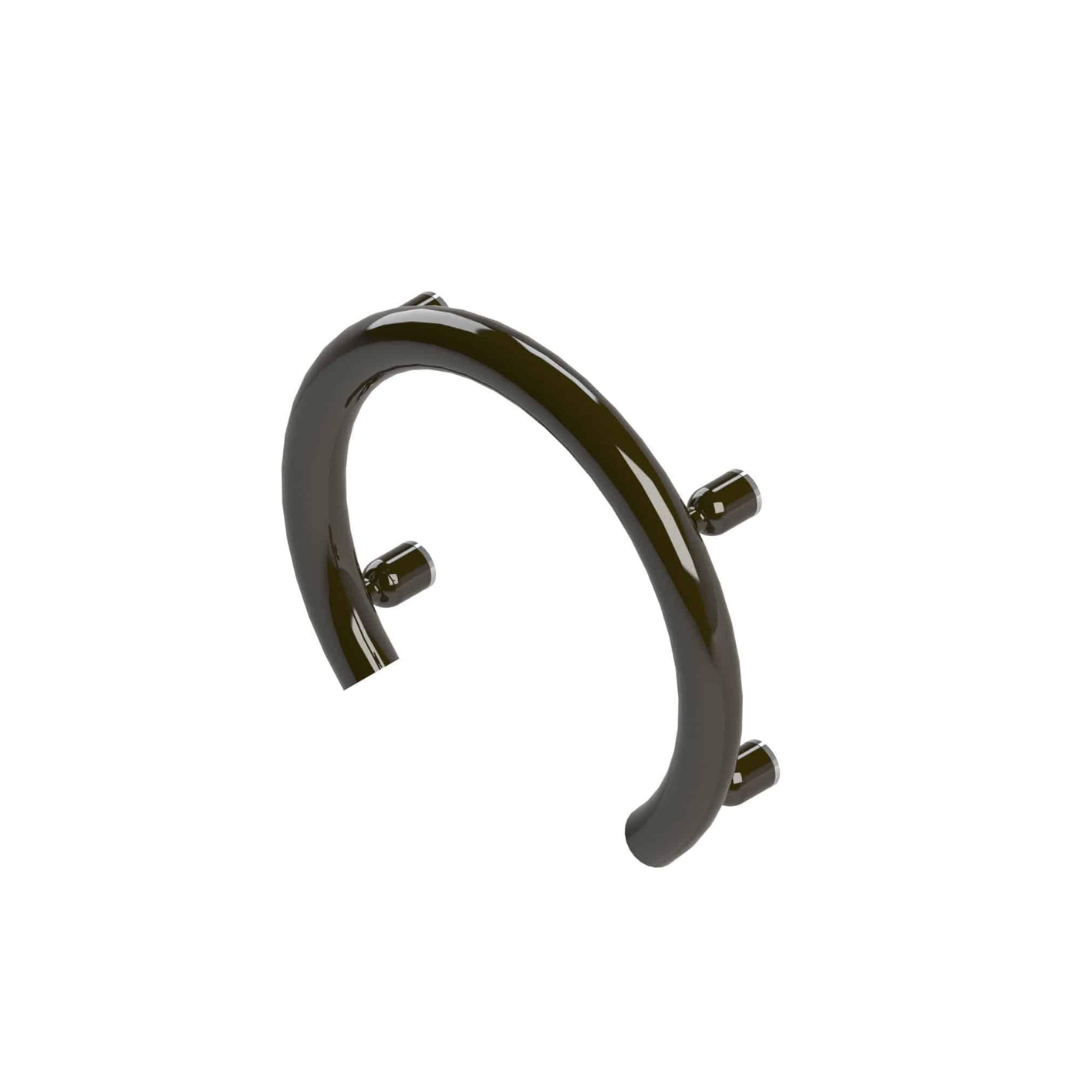

Powder Coat Bronze (-ORB)
Powder Coat Matte Black (-BLK) |
| Weight Capacity |
500lbs / 227kgs (ADA Compliant)
Note: Reduced weight capacity if installed using hollow wall anchors.
|
| Rail Diameter |
1.25″ / 31.8mm (ADA Compliant) |
| Wall Clearance |
1.50″ / 38.1mm (ADA Compliant) |
| Rail Width |
12.1″ / 307mm |
| Rail Height |
10.3″/ 262mm |
| Installation Mechanism |
Must screw to wood backing behind wall. Hollow wall anchors can be used when no wood structure is available (Note: Reduced weight capacity). |
| Installation Hardware/Fasteners |
Full Structure:#10 x 3″ / 76mm length, stainless steel wood screw (x4).
Hollow Walls (no structure):3/16-24 x 3″ / 76mm length, stainless steel bolt and hollow wall anchors (x4).
|
| Fasteners Exposed or Concealed |
Concealed; Rail stems conceal mounting hardware. |
| Commercial Use |
Yes |
| Residential Use |
Yes |
| Water Resistant |
Yes |
| Rust Resistant |
Yes |
| Country of Origin |
China |
| Shipping Dimensions |
14x13x4″ / 356x330x102mm |
| Shipping Weight |
5lbs / 2.3kgs |
| Warranty |
Limited lifetime warranty |
