The Quingo scooter is the ideal choice for individuals who face difficulties in disassembling and assembling portable scooters. With the ability to drive itself in and out of your vehicle in under a minute, you can now go wherever you desire, at any time. This versatile scooter is suitable for both indoor and outdoor use and can be easily accommodated in most SUVs, crossovers, vans, and hatchbacks.
Features & Highlights
-
Using patented Quintell® technologies, the Quingo gives you more stability, maneuverability and comfort than any other scooter.
- The Quingo is the world’s only auto-loading mobility scooter, driving and docking itself in your vehicle in under 60 seconds at the press of a button. No heavy lifting required!
- Weight Capacity: 350 lbs
- Speed: 4 MPH
- Patented 5-wheel stability
- Motor: 250 Watt Electric Motor
- Range: Up to 23 Miles on 1 charge
- Weight of the Scooter Only: 242 lbs
Intended Use of this Vehicle
This mobility vehicle is specifically created to cater to the needs of individuals who experience restricted mobility due to various conditions, such as severe Arthritis, Osteoporosis, or other impairments affecting limb movement. It is designed to provide maximum maneuverability, high stability, and the correct anatomical seating position, benefiting users up to the maximum recommended weight. This vehicle is intended for use on solid ground only and should not be used in muddy or watery areas, as it may compromise its performance. Furthermore, it is not designed for off-road purposes, and sandy or gravel areas should be avoided as they can adversely impact its range.
Transportation
To transport this vehicle, it should be loaded into the rear of a suitable vehicle using the provided docking station. Before purchasing, it is essential to ensure that the dimensions of the vehicle and the docking station are compatible with the intended transport vehicle. When loading, the seat must be folded, and the steering tiller must be flattened. It is imperative to note that when transporting the vehicle in a car, the user must not be seated in the scooter at any time. If you intend to transport the vehicle by air, it is deemed 'Air Safe.' However, it is recommended that you contact your preferred airline for more information regarding their specific requirements and regulations.
Specifications
Specifications
Length (with basket): 49.6 inches
Length (without basket): 43.3 inches
Width: 23.2 inches
Height (ground to top of seat): 39.8 inches
Height (ground to top of tiller): 41.4 inches
Height when folded: 20.3 inches
Seat Width (space between armrests): 16.9 – 23 inches
Backrest Height: 14.2 inches
Seat Height (from ground): 30 inches
Performance
Maximum Speed: 4 mph
Maximum Travel Range**: up to 23 miles
Maximum Curb Climbing: 3 inches

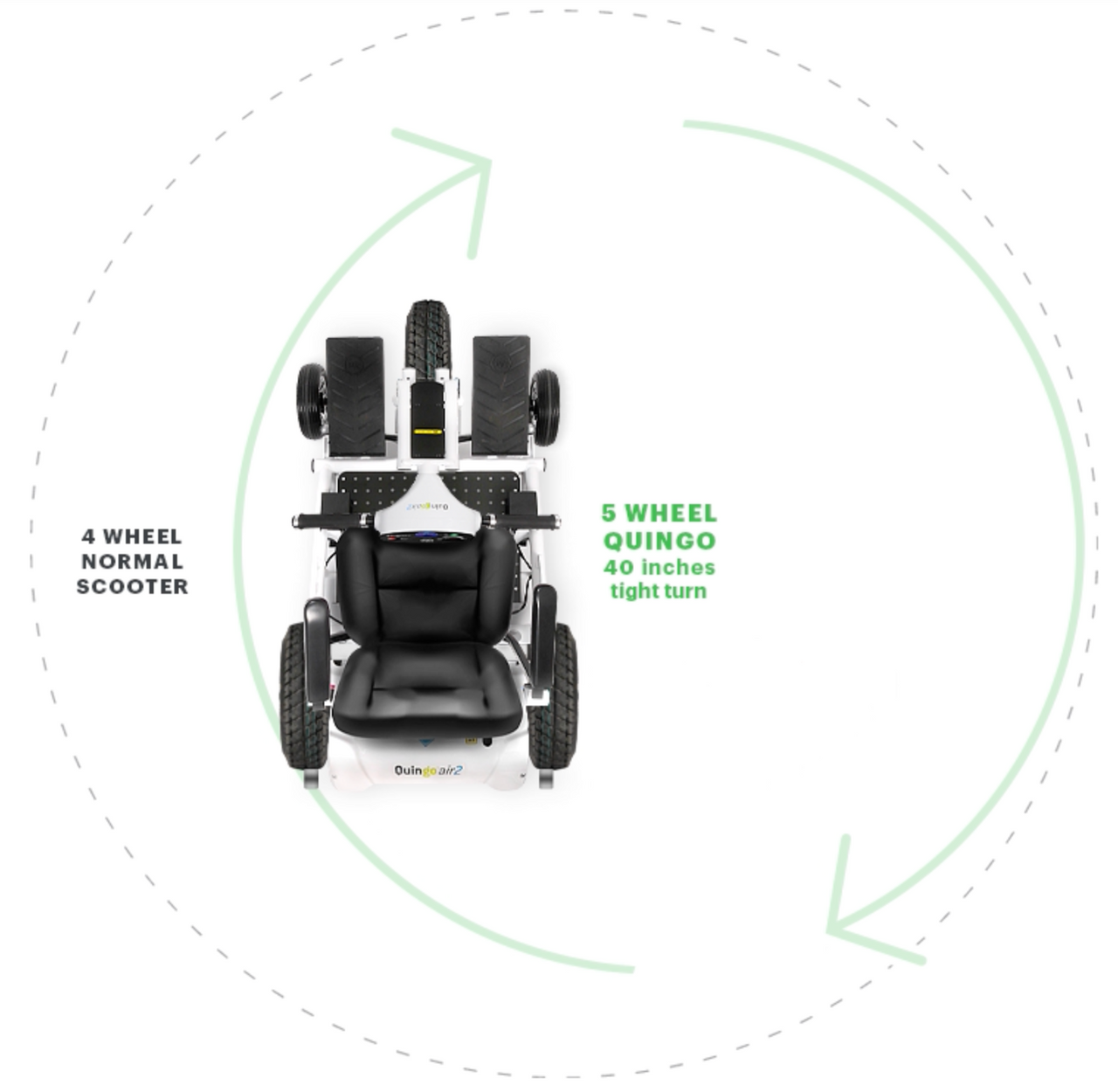

Turning Radius: 40.2 inches
Carrying Capacity: 350 lbs
Electric Motor: 250 Watt
Controls

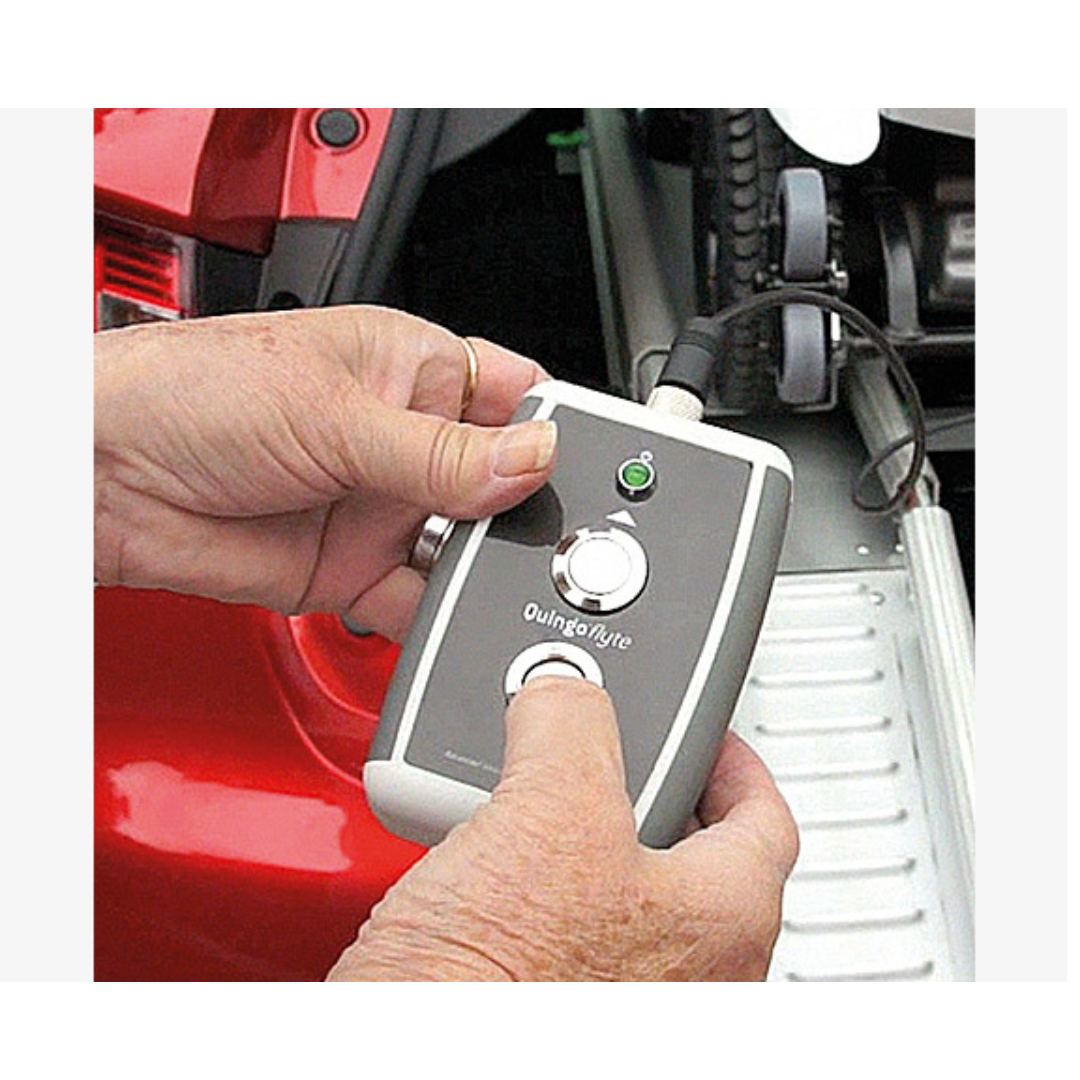

Two Button Remote Control for the Quingo

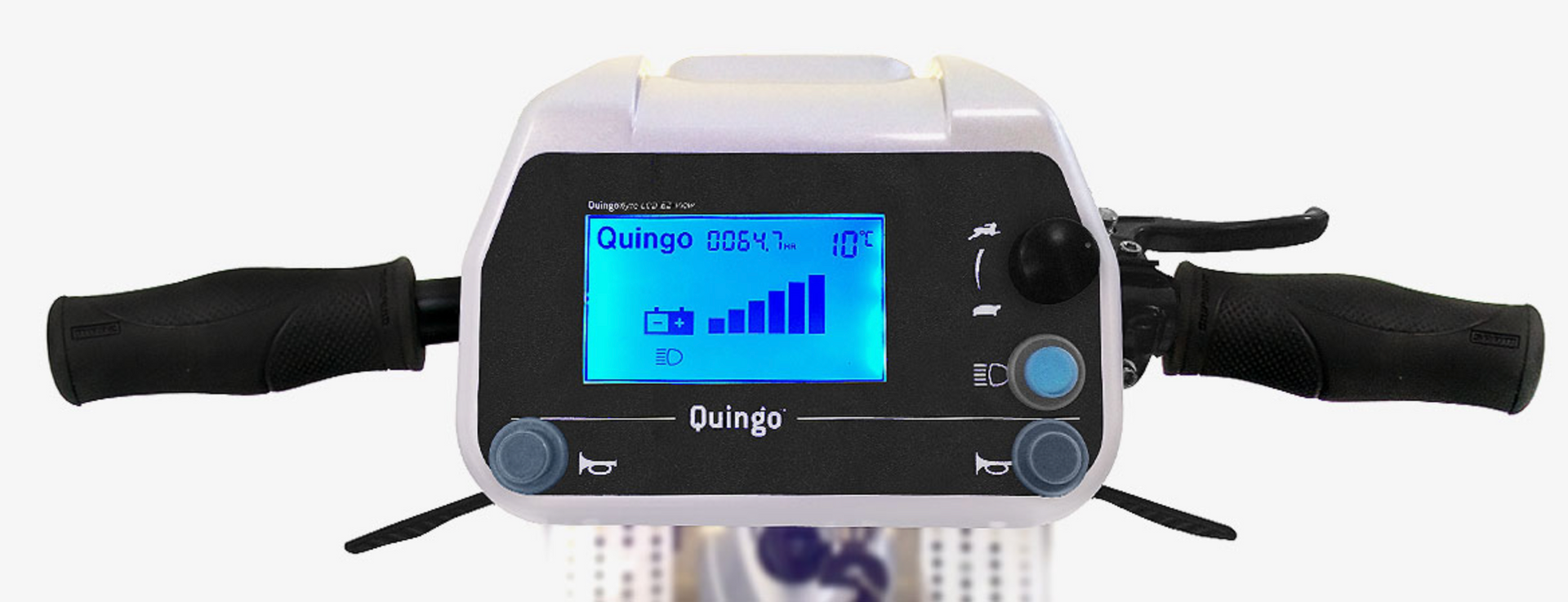

Easy View Digital Dash with Battery Meter Gauge
Infinitely Variable Speed Dial
Push Button Lighting Control
Fingertip Forward / Reverse Speed Levers
Security Ignition Key
Audible Warning Horn Button
Digital Fault/Status Indicators
Steering
Quintell™ Active Tri-Wheel Steering
Adjustable Tiller/Dash
Quintell™ Self Centering Steering
Lighting
3 X Front Lights
2 X Rear Lights
Incorrect Operation Warning Lights
Center Rear Brake Warning Light
Seating
Two Tone Full Fold Seat
Forward Reverse Seat Slide Mechanism
Quick Release Seat Belt
Comfort & Convenience
Quintell™ Independent Adaptive Floating Foot Plates
Quintell™ Curbmaster Powered Anti-Grounding
Quintell Curbmaster™ Anti-Tipping
Quintell™ 5 Wheel Stabilizing System
Quintell™ Active Tri-Wheel Steering
Quintell™ Self-Centering Steering
Quintell™ Posture Control System
Quintell™ Ultragrip High-Traction Rear Tyres
Quintell™ Shock Absorbing Smartbumper

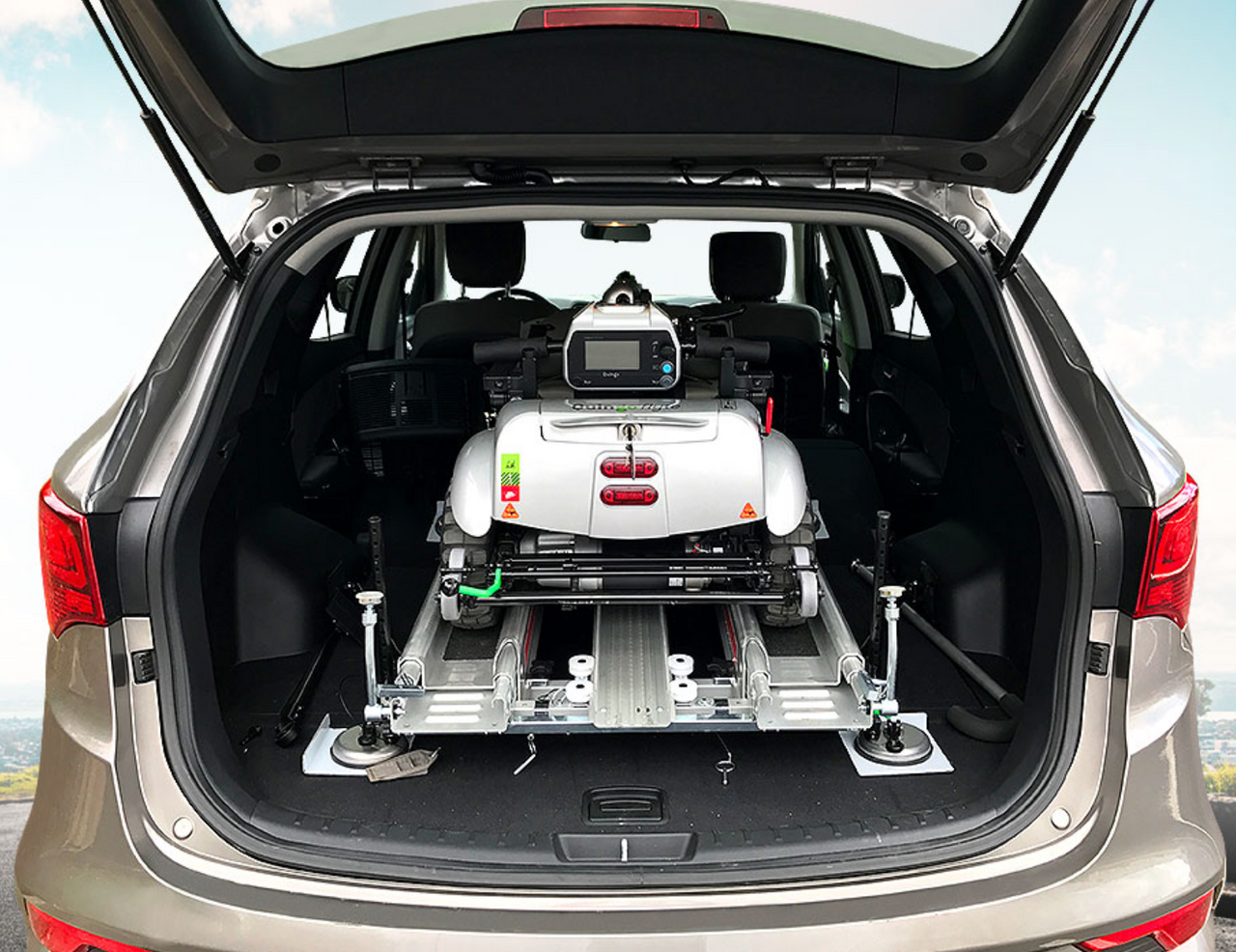

Docking Station
Designed for the Quingo
Securely holds the Quingo During Transit
Fits Most Small Hatchback Cars, SUV’s, Crossovers, Minivans and Wagons
Installed and Removed With No Modifications To Car
Breaks Down Into Component Parts for Easier Lifting
No Tools Required for Installation or Removal
Overall Weight: 83.6 lbs
FrameWeight: 22 lbs
Overall Width: 30.31 inches
Height: 7.5 inches
Overall Length (with supports):53.2 inches
Folded Length: 48.5 inches
Videos
How To Load Your Scooter Using The Docking Station
Unloading Your Scooter
Enhanced Stability Overview
